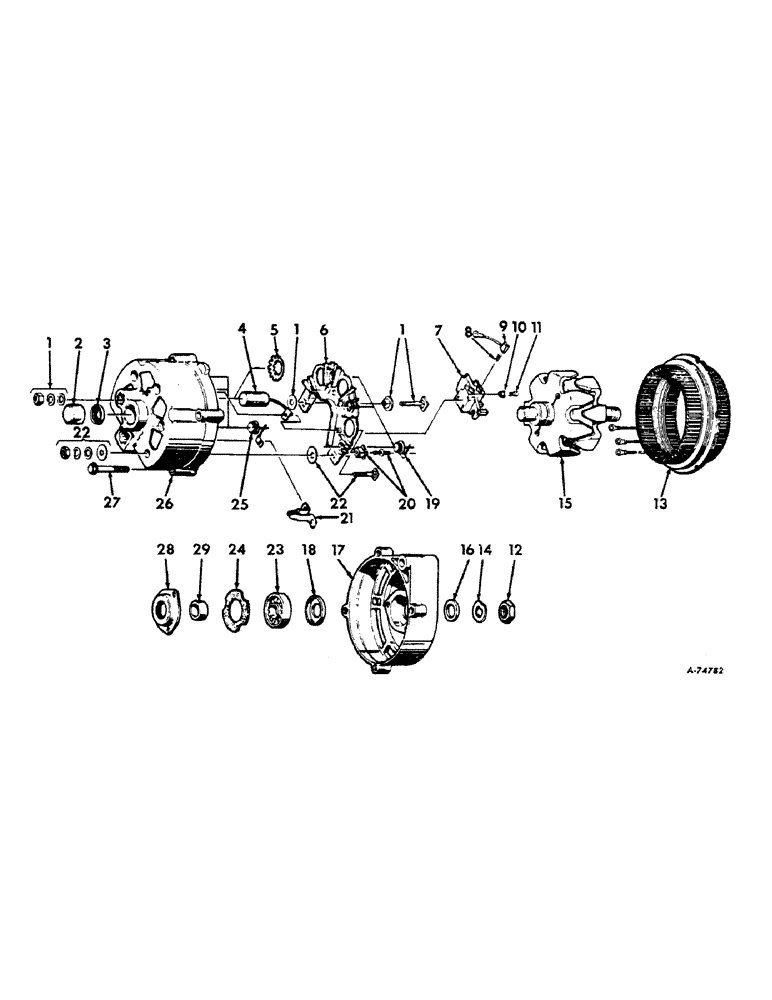

Запчасти Case IH 606 (083) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1100720

ALTERNATOR

GENERATOR ASSEMBLY (389276R91)

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1`шт.

1

1959833

TERMINAL CONNECTOR

TERMINAL PACKAGE, ground

1шт.

2

7451326

BEARING

slip ring end roller

1шт.

3

1959790

SEAL

RETAINER W/FELT, slip ring end

1шт.

4

1959455

CAPACITOR

1шт.

5

1959390

SPRING

condenser retaining

1шт.

6

1959828

PACKAGE

HEAT SINK ASSEMBLY

1шт.

7

1964682

HOLDER

ASSEMBLY, brush

1шт.

8

1955519

SPRING

brush

2шт.

9

BRUSH (Order Holder Assembly 1964682)

2шт.

10

1957562

INSULATOR, brush holder screw

2шт.

11

1957501

SCREW

brush holder attaching

2шт.

12

1911324

NUT

drive end shaft

1шт.

13

1959381

COIL

STATOR ASSEMBLY

1шт.

14

1941978

WASHER

drive end shaft

1шт.

15

1964695

ROTOR

ASSEMBLY

1шт.

16

1959991

COLLAR

drive end outside spacer

1шт.

17

1959917

FUNNEL

FRAME, drive end

1шт.

18

1947344

SLINGER

drive end grease

1шт.

19

1959829

DIODE

positive

3шт.

20

1959834

TERMINAL STRIP

TERMINAL PACKAGE, diode junction

3шт.

21

1956982

TERMINAL, field and indicator light

2шт.

22

1959832

TERMINAL STRIP

TERMINAL PACKAGE, battery

1шт.

23

954378

BALL BEARING

BEARING, drive end ball

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1959830

SET

DIODE, negative

3шт.

26

1959827

FUNNEL

FRAME W/NEGATIVE DIODE, bearing retainer and condenser

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1955494

PLATE

RETAINER ASSEMBLY, drive end bearing

1шт.

1956984

SCREW

attaching

3шт.

29

1963139

COLLAR CLAMP

COLLAR, drive end inside spacer

1шт.
