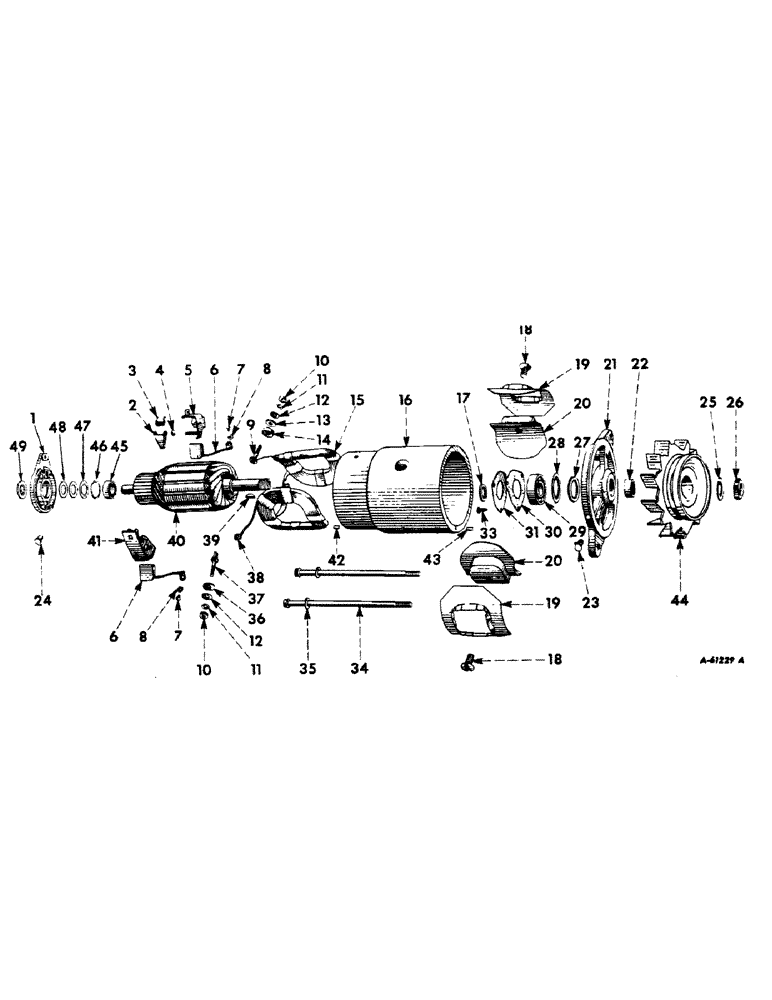

Запчасти Case IH 606 (079) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY, HEAVY-DUTY (06) - ELECTRICAL SYSTEMS

1

1939183

TYRE/TIRE

FRAME ASSEMBLY, commutator end (composed of (1) clamp 1929959, (1) dowel 809062, (1) frame (NSS), (1) oiler 1880641, (1) plug 1948326)

1шт.

2

1878183

ARM

brush

2шт.

3

1916324

VALVE SPRING

SPRING, brush

2шт.

4

1904368

PIN

brush arm space

2шт.

5

1922288

HOLDER

brush ground

1шт.

121743

CHAIN,#12 - 24

no. 12 cd-pltd

1шт.

132979

SCREW, no. 12 x 5/8" cd-pltd slt-rd-hd mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd lock

1шт.

6

1932506

BRUSH, COMMUTATOR

BRUSH

2шт.

7

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6 x 1/4" cd-pltd slt-rd-hd mach

2шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

brush lead attaching screw lock

2шт.

9

1921860

STUD

terminal field

1шт.

10

225-14112

NUT,#12-24

no. 12 cd-pltd

4шт.

11

1904661

LOCK WASHER

WASHER, field terminal stud lock

4шт.

12

1881409

WASHER

terminal stud

2шт.

13

1858753

WASHER

terminal stud insulating

1шт.

14

1885090

BUSHING

field terminal insulating

1шт.

15

1927700

COIL

ASSEMBLY, field (unit A)

1шт.

15

1951491

COIL

ASSEMBLY, field (unit B)

1шт.

16

NOT SERVICED SEPARATELY

1шт.

17

809945

BUSHING

WASHER, drive end space

1шт.

18

1843646

SCREW

pole shoe

2шт.

19

1914491

INSULATOR, field coil

2шт.

20

1914618

SHOE, pole

2шт.

21

1871693

FRAME W/OILER, pin and wick assembly, drive end

1шт.

22

1858603

BUSHING

COLLAR, drive end space

1шт.

23

1880641

OILER

ASSEMBLY, drive end

1шт.

823551

WICK, oiler

1шт.

24

1880641

OILER

ASSEMBLY, commutator end

1шт.

25

1941978

WASHER

drive end shaft nut lock

1шт.

26

1911324

NUT

drive end shaft

1шт.

27

809961

FELT

WASHER, drive end felt

1шт.

28

819104

WASHER

PLATE, drive end felt retainer

1шт.

29

907503

BEARING

BALL BEARING, drive end

1шт.

30

1912008

FELT

GASKET, drive end retainer plate

1шт.

31

1911263

LARGE PLATE

PLATE, drive end retainer

1шт.

33

1904370

AXLE

drive end retainer plate

3шт.

34

815018

BOLT, thru

2шт.

35

120638

LOCK WASHER

WASHER, thru bolt lock

2шт.

36

1921362

BUSHING

armature terminal insulating

1шт.

37

1921369

STUD

terminal armature

1шт.

38

200382

CLIP, Serial Range: terminal-brush

1шт.

39

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

40

1946903

ARMATURE

1шт.

41

1922289

HOLDER

brush insulated

1шт.

121743

CHAIN,#12 - 24

no. 12 cd-pltd

1шт.

132979

SCREW, no. 12 x 5/8" cd-pltd slt-rd-hd mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd lock

1шт.

42

809062

PIN, commutator end dowel

1шт.

43

809593

PIN

drive end dowel

1шт.

44

1943516

PULLEY

FAN AND PULLEY ASSEMBLY, generator

1шт.

45

904751

BEARING

BALL BEARING, commutator end

1шт.

46

1929959

RING, SNAP

CLAMP, commutator end bearing

1шт.

47

809960

RETAINER, commutator end felt

1шт.

48

815042

WASHER, commutator end felt

2шт.

49

1948326

PLUG, commutator end bearing well

1шт.
