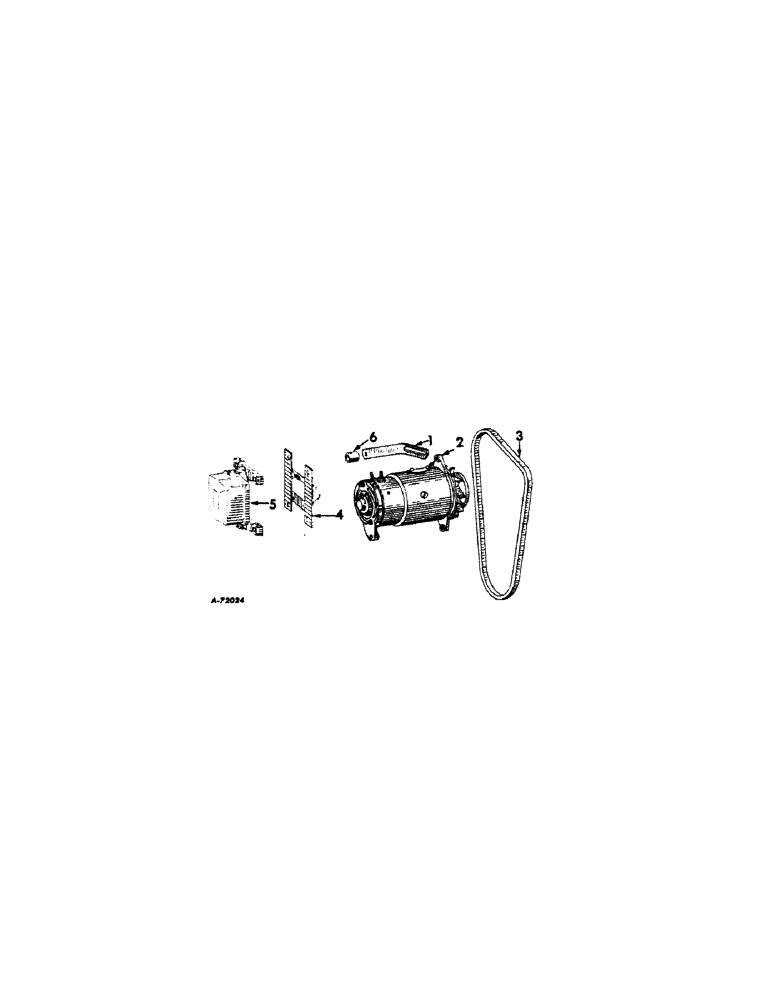

Запчасти Case IH 606 (076[A]) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

367250R1

SPARE PART BRACE, generator (gasoline)

1шт.

.

SCREW, 3/8 x 2-3/4" cap

1шт.

.

WASHER, 3/8" lock

1шт.

1

371107R1

SUPPORT

BRACE, generator (L.P. gas)

1шт.

.

SCREW, 3/8 x 3-1/2" cap

1шт.

.

WASHER, 3/8" lock

1шт.

2

1100394

SPARE PART GENERATOR ASSEMBLY (regular duty) (for components see list of parts under details of "Generator") (369599R92)

1шт.

2

104019A1R

REMAN-GENERATOR

Remanufactured, Generator, 12 volt 25 ampere

1шт.

2

104019A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 25 ampere

1шт.

2

1100391

GENERATOR ASSEMBLY (heavy duty) (for components see list of parts under details of "Generator") (375053R91)

1шт.

2

104017A1R

REMAN-GENERATOR

Generator

1шт.

2

104017A1C

CORE-GENERATOR

Return Number

1шт.

.

NUT, 5/16"

1шт.

.

SCREW, 5/16 x 3/4" cap

1шт.

.

SCREW, 5/16 x 1" cap

1шт.

.

SCREW, 5/16 x 1-1/8" cap

1шт.

.

WASHER, 5/16" lock

3шт.

.

280185R1

SPACER

WASHER, generator brace

1шт.

3

149635R1

BELT

BELT, generator and water pump

1шт.

4

378054R91

SPARE PART BRACKET ASSEMBLY, voltage regulator mounting (gasoline)

1шт.

.

SCREW, 3/8 x 3/4" cap

2шт.

5

REGULATOR ASSEMBLY, voltage (for components see list of parts under details of "Voltage Regulator")

1шт.

.

SCREW, 1/4NF x 1/2" cap

2шт.

.

WASHER, 1/4" lock

2шт.

6

371108R1

SPACER,3/8" Pipe x .844"

SPACER, generator brace (L.P. gas)

1шт.
