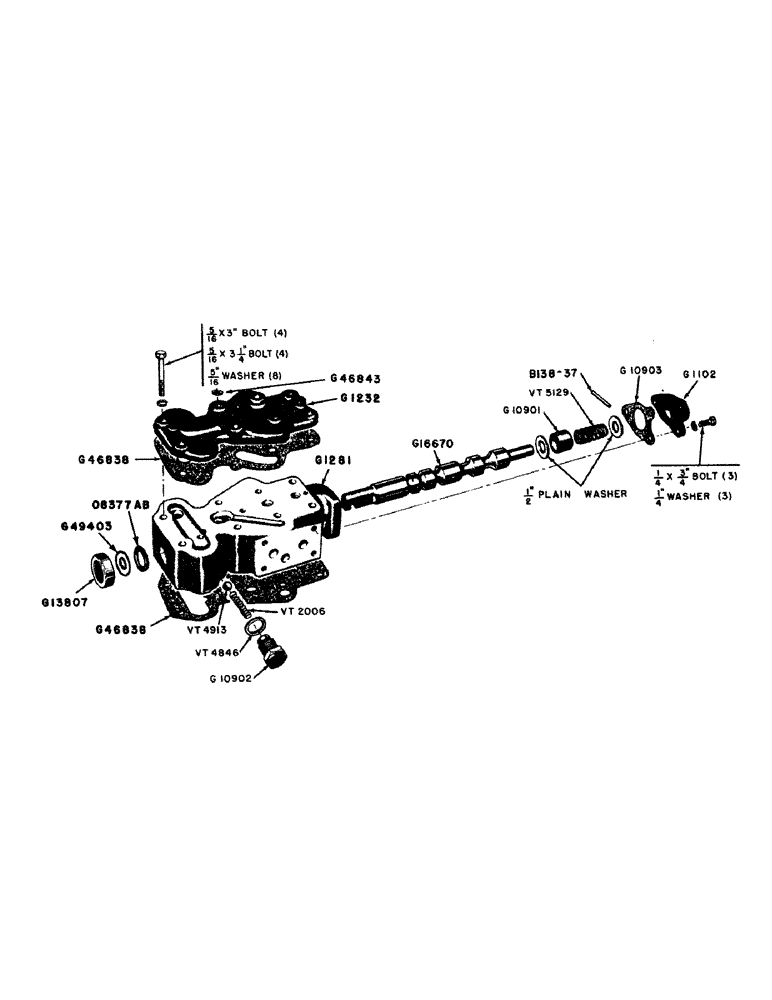

Запчасти Case IH 600B-SERIES (114) - PARTS FOR G14140 CONTROL VALVE, 610B AND 611B TRACTORS (06) - POWER TRAIN

G1102

CAP - end, control valve

1шт.

1/4" x 3/4" N.C. hex. hd. bolt w/lockwasher

3шт.

G1232

COVER - control valve body

1шт.

5/16" x 3" N.C. hex. hd. bolt w/lockwasher

5шт.

5/16" x 3-1/4" N.C. hex. hd. bolt w/lockwasher

3шт.

G1281

BODY - control valve

1шт.

G10901

SLEEVE

- valve spool stop

1шт.

G10902

PLUG - spring, spool detent

1шт.

G10903

GASKET

- end cap

1шт.

G13807

OIL SEAL

OIL SEAL - valve spool

1шт.

G16670

SPOOL

- control valve

1шт.

1/2" plain washer

2шт.

G46838

GASKET

- hydraulic control valve and cover

2шт.

G46843

X

WASHER - sealing, valve cover bolt (5/16")

1шт.

G49403

WASHER

- "O" ring

1шт.

O8377AB

X

"O" RING - valve spool

1шт.

VT2006

X

SPRING - detent, valve spool

1шт.

VT4846

X

GASKET - plug, detent spring

1шт.

VT4913

X

BALL - detent, valve spool (3/8" dia.)

1шт.

VT5129

X

SPRING - valve spool

1шт.

B138-37

ROLL PIN - valve spool (1/8" x 3/4")

1шт.
