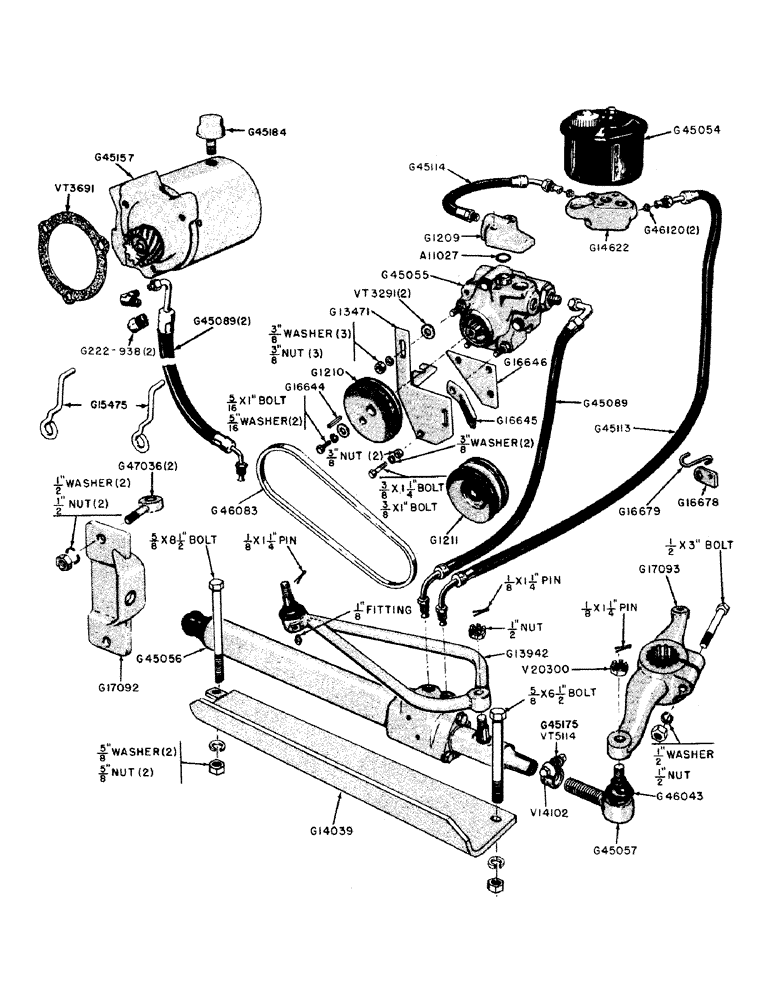

Запчасти Case IH 600B-SERIES (094) - POWER STEERING ATTACHMENT, UTILITY TRACTORS, WITH BELT DRIVEN PUMP (05) - STEERING

A8248

PLATE - name (Under steering wheel)

1шт.

A11027

GASKET

"O" RING -, Serial Range: pump-adapter

1шт.

G1209

ADAPTER - pump, G45114 hose

1шт.

5/16" x 1-1/2" N.C. hex. hd. bolt w/lockwasher

2шт.

G1210

BULB

PULLEY - hydraulic pump

1шт.

5/16" x 1" N.C. hex. hd. bolt w/hex. nut, lockwasher and plain washer

1шт.

G1211

PULLEY - double, generator

1шт.

G1283

ADAPTER (Use G14622)

1шт.

G13471

SUPPORT - pump mounting plate

1шт.

3/8" x 1" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

3/8" x 1-1/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G13942

DRAGLINK - center steering, Serial Range: arm-cylinder

1шт.

1/8" str. fitting (Lincoln fitting)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

1/2" N.F. slotted hex. nut

1шт.

G14039

GUARD - cylinder and valve

1шт.

5/8" x 6-1/2" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

5/8" x 8-1/2" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G14622

ADAPTER - reservoir, includes 2 - G46120 seats

1шт.

5/16" x 3/4" N.C. hex. nut and lockwasher

2шт.

G16644

KEY -, Serial Range: pulley-pump

1шт.

G16645

BRACE - radiator

1шт.

G16646

PLATE - mounting, pump

1шт.

G16678

LUG - hose clip

1шт.

G16679

CLIP -, Serial Range: hose-block

1шт.

G17092

BRACKET - mounting, Serial Range: cylinder-axle

1шт.

G17093

ARM - steering, cylinder tie rod end to L.H. spindle

1шт.

1/2" x 3" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G45054

RESERVOIR

- oil, power steering

1шт.

G45055

PUMP - hydraulic, power steering

1шт.

3/8" N.F. hex. nut and lockwasher

3шт.

G45056

CYLINDER

AND VALVE - hydraulic, power steering

1шт.

G45057

X

END - tie - rod, cylinder and valve to steering arm

1шт.

1/8" str. fitting (Lincoln #5000)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

G45089

HOSE - pump to cylinder valve (44" long)

1шт.

G45113

HOSE - cylinder valve to reservoir (52" long)

1шт.

G45114

HOSE - reservoir to pump (13" long)

1шт.

G45175

CLAMP

- tie rod (1-1/4" I.D.) (Includes 1/2" x 2-1/4" N.F. hex. hd. bolt w/hex. nut and lockwasher) See VT5114

1шт.

G46043

COVER

- dust, tie rod end

1шт.

G46083

V-BELT,0.42" W x 7.50" L

Drive, Hydraulic Power Steering Pump 0.42" W x 7.50" L

1шт.

G46120

SEAT,0.375" DIA.

- hose, reservoir adapter

2шт.

G47036

EYE BOLT - mounting, G17092, Serial Range: bracket-axle

2шт.

1/2" N.F. hex. nut and lockwasher

2шт.

V14102

SEAL KIT

BOLT - for VT5114 clamp

1шт.

5/16" N.F. hex. nut and lockwasher

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod end

1шт.

VT3291

X

WASHER - spacer, pump mounting (1" O.D. x 13/32" I.D. x 1/8")

3шт.

VT5114

CLAMP

- tie rod (7/8" I.D.) See G45175

1шт.

G15475

SUPPORT - hose to steering support, with gear driven pump

2шт.

5/8" x 2" N.C. hex. hd. bolt w/lockwasher, with gear driven pump

2шт.

G45089

HOSE - pump to cylinder valve (44" long), with gear driven pump

2шт.

G45157

X

PUMP AND RESERVOIR, with gear driven pump

1шт.

3/8" x 3-1/8" N.C. hex. hd. bolt w/lockwasher, with gear driven pump

3шт.

G45184

BREATHER

- pump and reservoir, with gear driven pump

1шт.

VT3691

X

GASKET - pump to block, with gear driven pump

1шт.

G222-938

ELBOW - hose to pump (649F - 3/8" O.D. x 1/4" P.T.), with gear driven pump

2шт.
