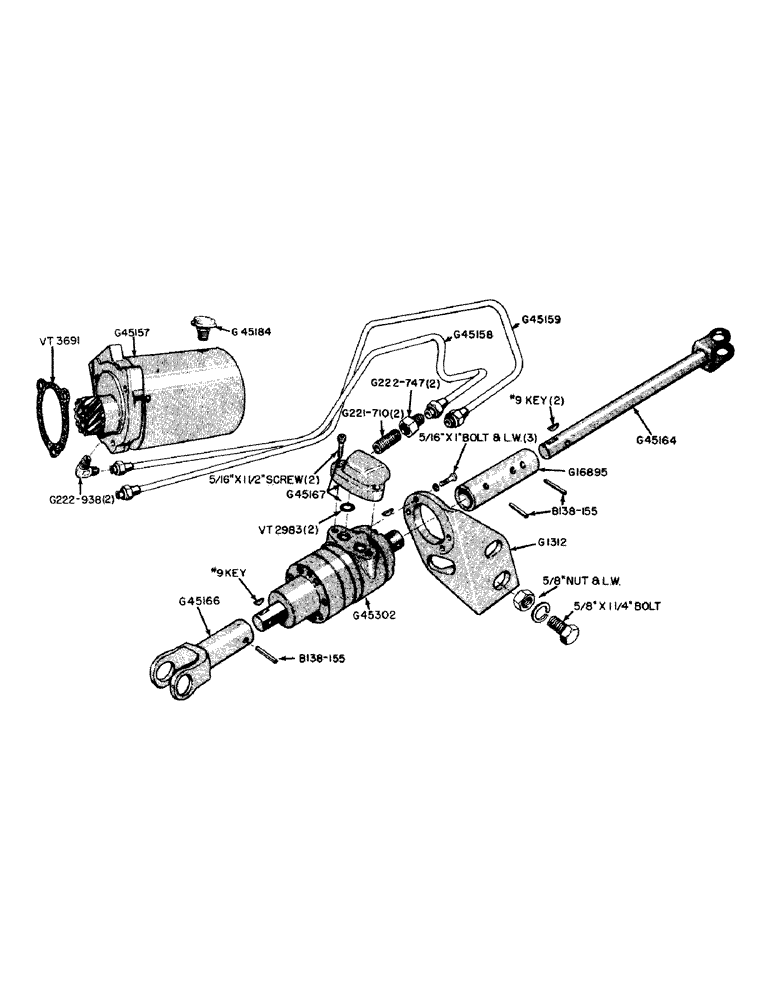

Запчасти Case IH 600B-SERIES (093) - POWER STEERING ATTACHMENT, GENERAL PURPOSE TRACTORS (05) - STEERING

G1312

BRACKET - mounting, booster motor

1шт.

5/8" x 1-1/4" N.F. hex. hd. bolt w/hex. nut and lockwasher

1шт.

G10897

YOKE

- front univeral joint

1шт.

G16895

SLEEVE - upper connecting, booster, Serial Range: motor-shaft

1шт.

G45157

X

PUMP AND RESERVOIR (Includes G45184 breather)

1шт.

3/8" x 3-1/8" N.C. hex. hd. bolt w/lockwasher

3шт.

G45164

SHAFT - steering

1шт.

#9 Woodruff key

1шт.

G45166

SLEEVE - lower connecting (Includes yoke)

1шт.

G45167

PORT BLOCK KIT - tube to booster (Includes 2 - VT2983 "O" rings and 2-5/16" x 1-1/2" N.C. socket hd. cap screw)

1шт.

G45184

BREATHER

- pump and reservoir

1шт.

G45302

PUMP, HYDRAULIC

BOOSTER MOTOR (Includes G45167 port block kit)

1шт.

5/16" x 1" N.C. hex. hd. bolt w/lockwasher

3шт.

#9 Woodruff key

2шт.

G45736

TUBE - oil pressure, Serial Range: pump-booster

1шт.

G45737

TUBE - oil return, Serial Range: booster-pump

1шт.

VT2983

X

"O" RING - tube to port block

2шт.

VT3397

KEY - front universal joint, Serial Range: yoke-shaft

1шт.

B138-138

ROLL PIN - front universal joint (1/4" x 1-1/2")

1шт.

B138-155

ROLL PIN - connecting sleeve (5/16" x 1-1/4")

3шт.

G221-710

NIPPLE - pipe, line to booster motor (3/8" PT x 1-1/2" extra heavy)

2шт.

G222-747

COUPLING - oil tube to booster (46F - 3/8" OD x 3/8" PT)

2шт.

G222-938

ELBOW - oil tube to pump (649F - 3/8" OD x 1/4" PT)

2шт.

REFER TO PUMP-GEAR IS PART R52988 AND THE NUT IS R52989.

1шт.
