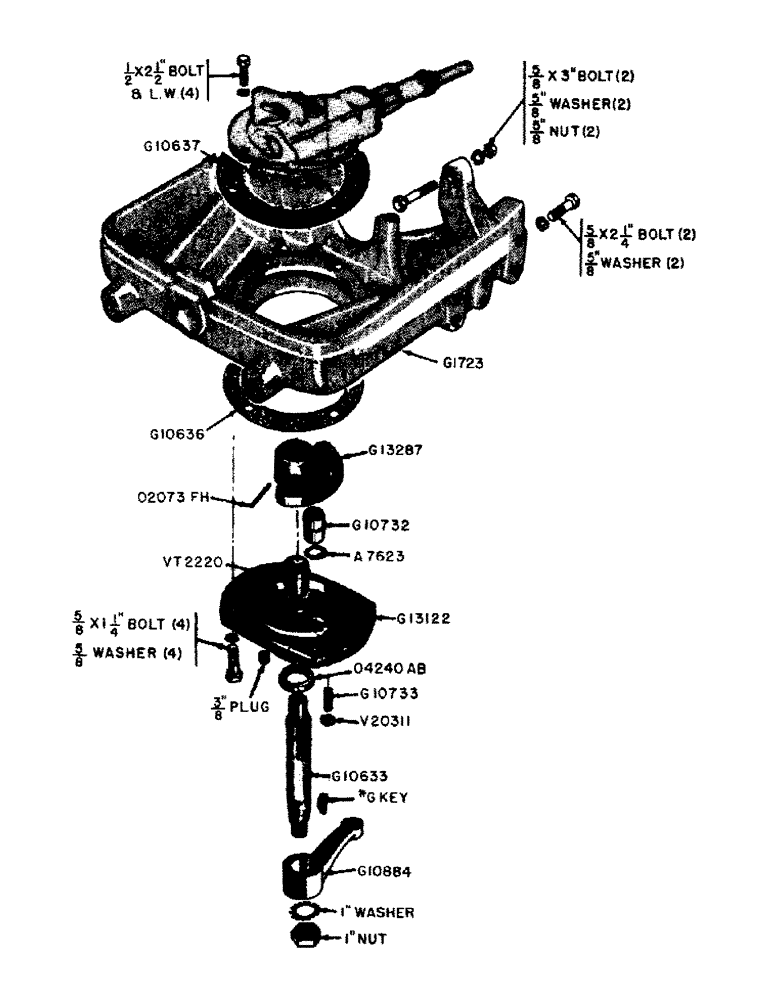

Запчасти Case IH 600B-SERIES (089) - STEERING SPINDLE AND SUPPORT, 510B AND 610B UTILITY TRACTORS (05) - STEERING

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - adjusting plug (1-1/4" dia.)

1шт.

G1119

SUPPORT (Use G13122)

1шт.

G1723

SUPPORT - front axle and radiator

1шт.

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

5/8" x 3" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

G10633

SHAFT

- steering lever

1шт.

1" N.F. hex. nut and I.T. Shakeproof lockwasher

1шт.

G10636

X

GASKET - steering support to radiator support

1шт.

G10637

GASKET

- steering housing to radiator support

1шт.

G10732

PLUG - adjusting, steering lever

1шт.

G10733

SCREW - plug adjusting

1шт.

G10884

ARM - center steering -024, 70 Duro, 1.114" ID x .070" Thk

1шт.

#G Woodruff key

1шт.

G13122

SUPPORT - steering shaft, includes VT2220 bushing

1шт.

5/8" x 1-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

3/8" std. sq. hd. pipe plug

1шт.

G13287

LEVER

- steering

1шт.

O4240AB

X

OIL SEAL - steering lever shaft

1шт.

O2073FH

X

ROLL PIN - steering lever to shaft (1/4" x 2-1/4")

1шт.

V20311

X

NUT - lock, plug adjusting

1шт.

VT2220

X

BUSHING - steering shaft support

1шт.
