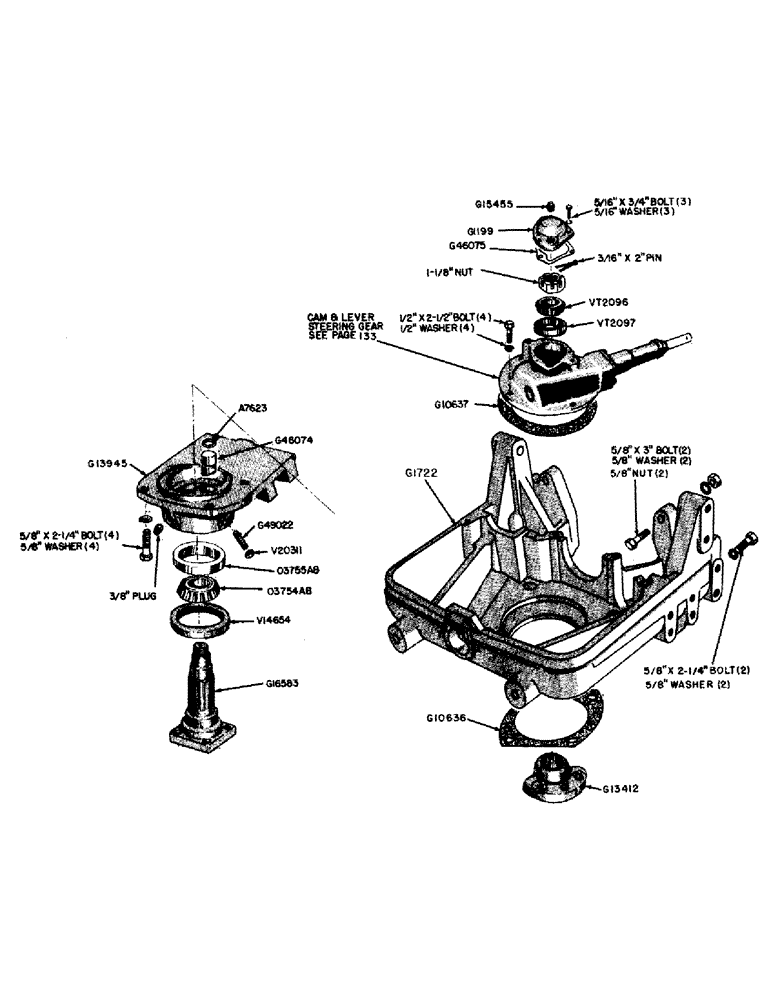

Запчасти Case IH 600B-SERIES (081) - STEERING SPINDLE AND SUPPORT, 511B AND 611B GENERAL PURPOSE TRACTORS (05) - STEERING

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - adjusting plug (1-1/4" dia.)

1шт.

G1227

SUPPORT (Use G13945)

1шт.

G1722

X

SUPPORT - front axle and radiator

1шт.

REFER TO SUPPORT G1722 USE PLUG 41-40 MEASURES ABOUT 2 1/2"

1шт.

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

2шт.

5/8" x 3" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

G1726

SUPPORT (Use G14303)

1шт.

G10636

X

GASKET - steering spindle support to G1047 support

1шт.

G10637

GASKET

- steering, Serial Range: housing-support

1шт.

G13412

LEVER - front steering

1шт.

G13945

SUPPORT - steering spindle, includes 03755AB bearing cup (511B) See G14303

1шт.

5/8" x 2-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

3/8" std. sq. hd. pipe plug

1шт.

G14303

SUPPORT - steering spindle, includes 03755AB bearing cup (611B) See G13945

1шт.

G16583

SHAFT - steering spindle

1шт.

1-1/8" N.F. slotted hex. nut

1шт.

3/16" x 2" cotter pin

1шт.

G46074

PLUG - adjusting, steering lever

1шт.

G49022

SCREW - set, adjusting plug

1шт.

O3754AB

X

CONE - lower bearing, steering spindle (Timken #399A-4C)

1шт.

O3755AB

X

CUP - lower bearing, steering spindle (Timken #394A-4C)

1шт.

V14654

X

OIL SEAL - steering spindle shaft

1шт.

V20311

X

NUT - set screw, adjusting plug (1/2" N.F.)

1шт.

VT2096

X

CONE - upper bearing, steering spindle (Timken #14137A)

1шт.

VT2097

X

CUP - upper bearing, steering spindle (Timken #14276) See G14105 - page 80

1шт.
