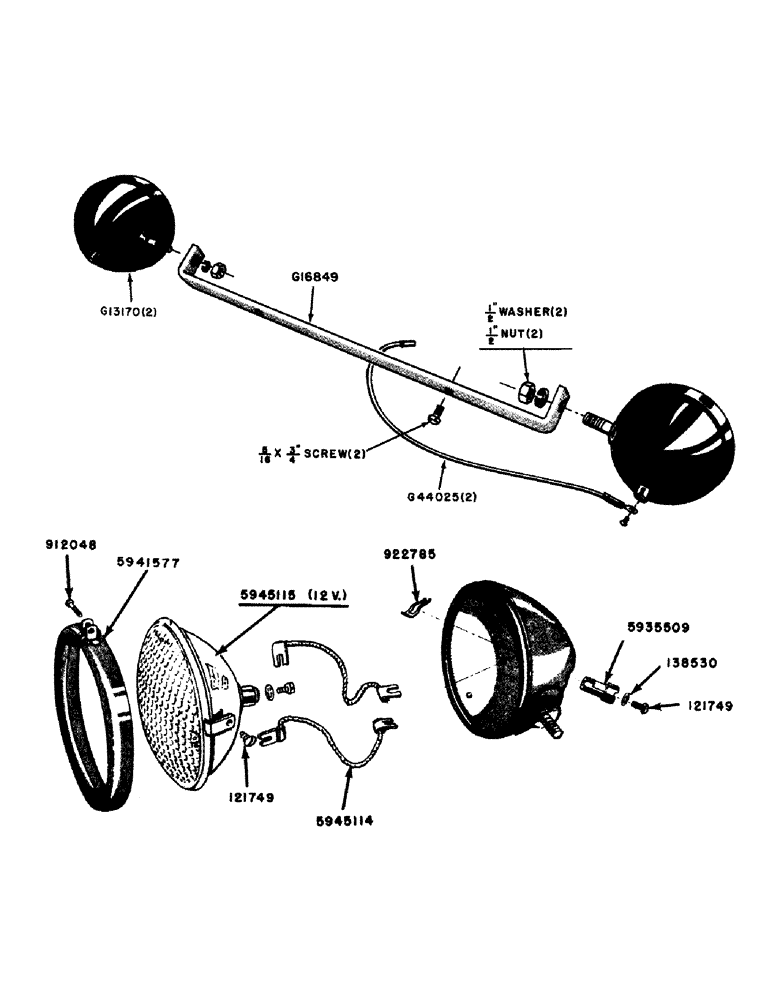

Запчасти Case IH 600B-SERIES (039) - MID MOUNTED HEAD LAMP ATTACHMENT (04) - ELECTRICAL SYSTEMS

G13170

LAMP - head, R.H. and L.H.

2шт.

1/2" N.C. hex. nut and lockwasher (Plated)

2шт.

G16849

BRACKET - mounting

1шт.

5/16" x 3/4" phil. truss hd. mach. screw

2шт.

G44025

CABLE - head lamp

2шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal, G13170 head lamp

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminall, G13170 head lamp Int Tooth, #8

2шт.

912048

SCREW - moulding, G13170 head lamp

1шт.

922785

SUPPORT

SPRING - terminal, G13170 head lamp

1шт.

5935509

PLATE - terminal, G13170 head lamp

1шт.

5941577

MOULDING ASSEMBLY, G13170 head lamp

1шт.

5945114

WIRING ASSEMBLY, G13170 head lamp

1шт.

5945115

SEALED BEAM ASSEMBLY (12 volt), G13170 head lamp

1шт.
