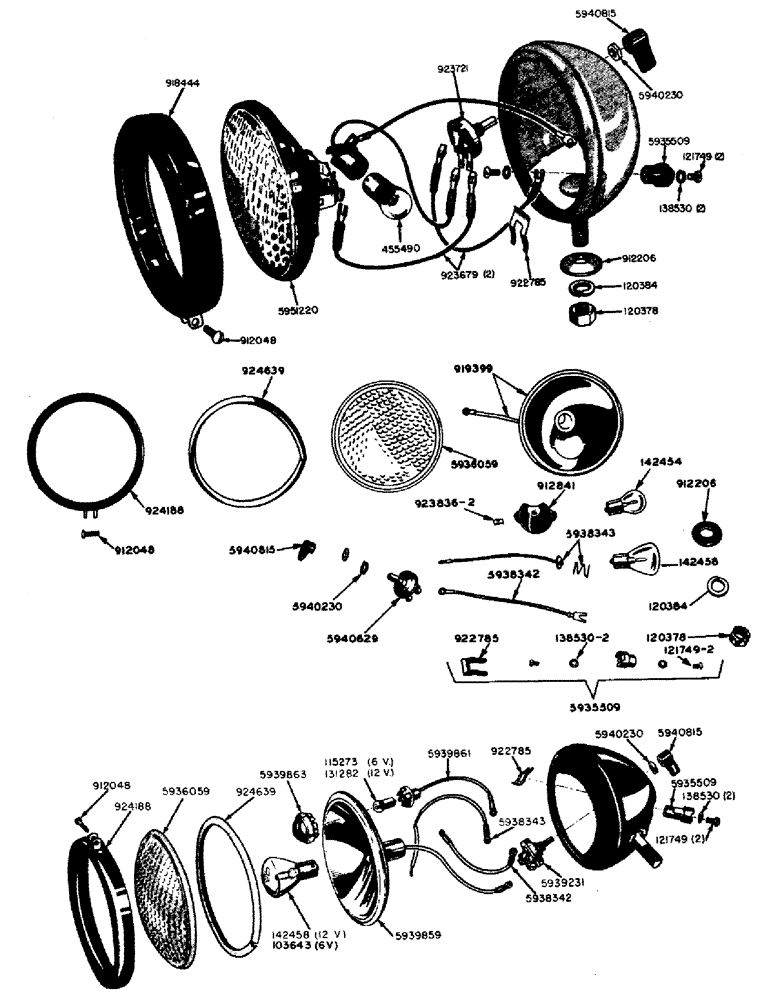

Запчасти Case IH 600B-SERIES (036) - PARTS FOR A20965, A11898, O9897AB FLOOD AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Mounting 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , Mounting stud 1/2"

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal screw Int Tooth, #8

2шт.

455490

BULB,C-6, #1003, 12V, .94W

- 15 C.P. 12-16 volt (Mfrs. #1003)

1шт.

912048

SCREW - molding

1шт.

912206

WASHER - bearing, mounting stud

1шт.

918444

VALVE

MOLDING ASSEMBLY

1шт.

922785

SUPPORT

SPRING - terminal

1шт.

923679

WIRE ASSEMBLY

2шт.

923721

SWITCH

1шт.

5935509

TERMINAL POST COMPLETE

1шт.

5940230

NUT - retaining, switch

1шт.

5940815

SWITCH KNOB ASSEMBLY (Includes screw)

1шт.

5951220

SEALED UNIT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Mounting bolt, Parts for A11898 flood and tail lamp 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , Parts for A11898 flood and tail lamp 1/2"

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal (No. 8 - 32 x 5/16" rd. hd. mach. screw), parts for A11898 flood and tail lamp

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Shakeproof for terminal screw, parts for A11898 flood and tail lamp Int Tooth, #8

2шт.

142454

SPOUT,C2R, #93, 12.8V

15 C.P. single contact 12 - 16V (Mfg. no. 93), parts for A11898 flood and tail lamp

1шт.

A41264

BULB,#1156, 12V

32 C.P. single contact 12 - 16V (Mfg. no. 32), parts for A11898 flood and tail lamp

1шт.

912048

SCREW - moulding, parts for A11898 flood and tail lamp

1шт.

912206

WASHER - mounting plate bearing, parts for A11898 flood and tail lamp

1шт.

912841

LENS - red, parts for A11898 flood and tail lamp

1шт.

919399

REFLECTOR ASSEMBLY, parts for A11898 flood and tail lamp

1шт.

922785

SUPPORT

SPRING - terminal post, parts for A11898 flood and tail lamp

1шт.

922786

POST TERMINAL (Use 5935509), parts for A11898 flood and tail lamp

1шт.

923836

GASKET

SPEEDNUT, parts for A11898 flood and tail lamp

2шт.

924188

MOULDING ASSEMBLY, parts for A11898 flood and tail lamp

1шт.

924639

GASKET - reflector seal, parts for A11898 flood and tail lamp

1шт.

5935509

TERMINAL PACKAGE (Consists of 1 - 922785, 1 - 922786, 2 - 121749 and 2 - 138350), parts for A11898 flood and tail lamp

1шт.

5936059

LENS, parts for A11898 flood and tail lamp

1шт.

5938342

WIRE ASSEMBLY - switch to terminal post, parts for A11898 flood and tail lamp

1шт.

5938343

WIRE ASSEMBLY - from bulb to switch, parts for A11898 flood and tail lamp

1шт.

5940230

NUT - retaining, for switch, parts for A11898 flood and tail lamp

1шт.

5940629

SWITCH - w/lever, parts for A11898 flood and tail lamp

1шт.

5940815

LEVER - assembly, parts for A11898 flood and tail lamp

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal, parts for 09897AB flood and tail lamp

2шт.

131282

BULB,C2V, #53, 14.4V

- light, small (No. 53, ICP single contact, 12-16 volt), parts for 09897AB flood and tail lamp

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal screw, Parts for 09897AB flood and tail lamp Int Tooth, #8

2шт.

A41264

BULB,#1156, 12V

- light, large (No. 1143, 32 CP single contact, 12-16 volt), parts for 09897AB flood and tail lamp

1шт.

912048

SCREW - molding, parts for 09897AB flood and tail lamp

1шт.

922785

SUPPORT

SPRING - terminal, parts for 09897AB flood and tail lamp

1шт.

924188

MOLDING ASSEMBLY, parts for 09897AB flood and tail lamp

1шт.

924639

GASKET - reflector seal, parts for 09897AB flood and tail lamp

1шт.

5935509

TERMINAL POST COMPLETE, parts for 09897AB flood and tail lamp

1шт.

5936059

LENS, parts for 09897AB flood and tail lamp

1шт.

5938342

WIRE ASSEMBLY - terminal to switch, parts for 09897AB flood and tail lamp

1шт.

5938343

WIRE ASSEMBLY - large bulb switch, parts for 09897AB flood and tail lamp

1шт.

5939231

SWITCH ASSEMBLY (Includes knob assembly), parts for 09897AB flood and tail lamp

1шт.

5939859

REFLECTOR ASSEMBLY, parts for 09897AB flood and tail lamp

1шт.

5939861

SOCKET AND WIRE ASSEMBLY, parts for 09897AB flood and tail lamp

1шт.

5939863

JEWEL ASSEMBLY, parts for 09897AB flood and tail lamp

1шт.

5940230

NUT - retaining, for switch, parts for 09897AB flood and tail lamp

1шт.

5940815

SWITCH KNOB ASSEMBLY W/SCREW, parts for 09897AB flood and tail lamp

1шт.
