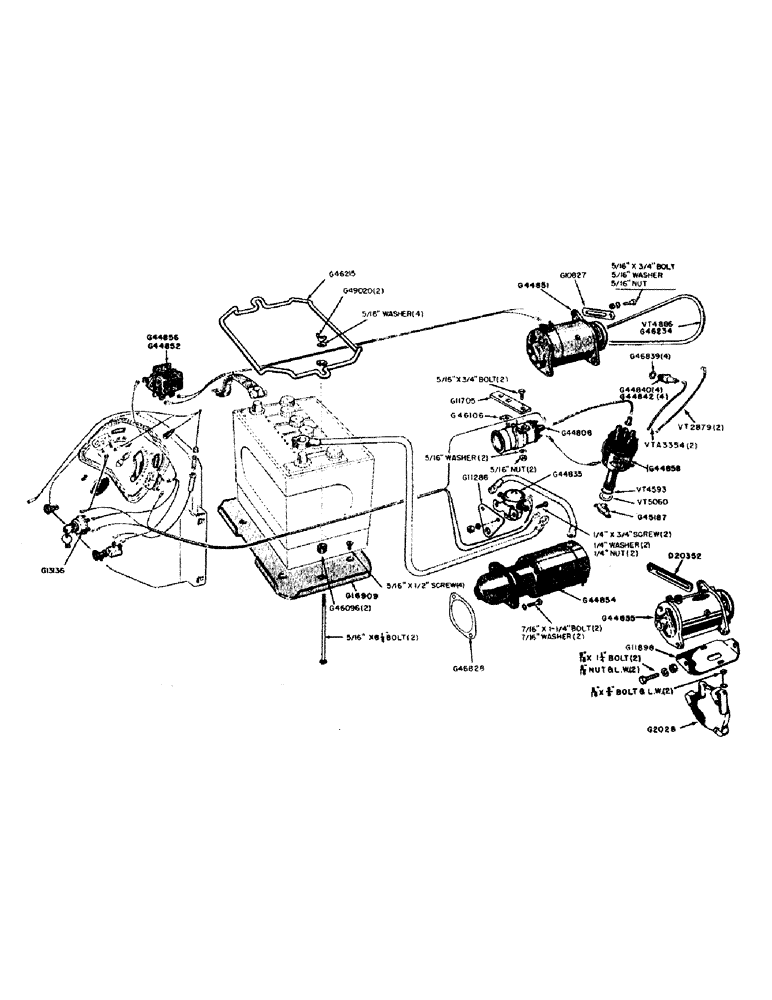

Запчасти Case IH 600B-SERIES (029A) - BATTERY, GENERATOR, STARTING MOTOR AND IGNITION, DELCO-REMY (04) - ELECTRICAL SYSTEMS

*

BATTERY - 12 volt (Exide #2SM - 50) not furnished by J.I. Case Co

1шт.

G16909

PAN

PAN - battery base

1шт.

*

5/16" x 1/2" flat hd. mach. screw (Spin-lock)

4шт.

G46096

RETAINER

BUSHING - rubber, battery frame bolt

2шт.

G46215

X

FRAME - battery hold down

1шт.

*

5/16" x 9" carr. bolt w/lockwasher and plain washer

2шт.

G49020

NUT

NUT - wing, battery frame bolts (5/16" N.C.)

2шт.

*

PULLEY - double, generator drive (Used only with power steering), L.H. mounted generator, Delco-Remy

1шт.

G10827

STRAP - adjusting, generator belt, L.H. mounted generator, Delco-Remy

1шт.

*

5/16" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher, L.H. mounted generator, Delco-Remy

1шт.

G44851

SPARE PART GENERATOR - w/pulley (Delco-Remy #1101011), L.H. mounted

1шт.

*

5/16" x 1-1/4" N.F. hex. hd. bolt w/hex. nut, lockwasher and plain washer, L.H. mounted generator, Delco-Remy

2шт.

G44852

REGULATOR

REGULATOR - voltage (Delco-Remy #1119191), L.H. mounted generator

1шт.

*

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher, L.H. mounted generator, Delco-Remy

3шт.

VT4886

X

"V" BELT - fan and generator drive, L.H. mounted generator, Delco-Remy

1шт.

D20352

STRAP - adjusting, generator belt, R.H. mounted generator, Delco-Remy

1шт.

*

5/16" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher, R.H. mounted generator, Delco-Remy

1шт.

G2028

SUPPORT - mounting bracket, generator, R.H., Delco-Remy

1шт.

G11898

SPARE PART BRACKET - mounting, generator, R.H., Delco-Remy

1шт.

*

5/16" x 5/8" N.C. hex. hd. bolt w/lockwasher, R.H. mounted generator, Delco-Remy

2шт.

G44855

X

GENERATOR (Delco-Remy #11100371), R.H. mounted

1шт.

103814A1R

REMAN-GENERATOR

Generator

1шт.

103814A1C

CORE-GENERATOR

Return Number

1шт.

108004A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 11 ampere

1шт.

108004A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 11 ampere

1шт.

*

5/16" x 1-1/4" N.F. hex. hd. bolt w/hex. nut, lockwasher and plain washer, R.H. mounted generator, Delco-Remy

2шт.

NLS

NO LONGER SERVICED

- voltage (Delco-Remy #1118901), R.H. mounted generator

1шт.

*

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher, R.H. mounted generator, Delco-Remy

3шт.

G45208

SPARE PART PULLEY - generator (Delco-Remy #1884311), R.H. mounted

1шт.

VT4886

X

"V" BELT - fan and generator drive, R.H. mounted, Delco-Remy

1шт.

G11286

BRACKET - mounting, solenoid, ignition and starting motor, Delco-Remy

1шт.

G11705

BRACKET

BRACKET - mounting, coil to engine, ignition and starting motor, Delco-Remy

1шт.

G11918

X

DISTRIBUTOR (Delco-Remy #1111908) Includes G45187 advance arm, ignition and starting motor

1шт.

G13136

IGNITION SWITCH

SWITCH - starting and ignition, motor, Delco-Remy

1шт.

G44808

X

COIL - ignition (Auto-Lite #CAG-4002A) (Includes G44818 clamp w/#10-32 x 1-1/2" rd. hd. mach. screw), ignition and starting motor, Delco-Remy

1шт.

*

5/16" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher, ignition and starting motor, Delco-Remy

2шт.

G44835

SOLENOID

SOLENOID - starter switch, ignition and starting motor, Delco-Remy

1шт.

*

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher, ignition and starting motor, Delco-Remy

2шт.

G44840

SPARK PLUG

SPARK PLUG - includes gasket (Champion #D-16 - 18 MM), ignition and starting motor, Delco-Remy

4шт.

G44854

MOTOR

MOTOR - starting (Delco-Remy #1107755), ignition and starting motor

1шт.

*

7/16" x 1-1/4" N.C. hex. hd. bolt w/lockwasher, ignition and starting motor, Delco-Remy

2шт.

G44858

X

DISTRIBUTOR (Delco-Remy #1111908), ignition and starting motor

1шт.

G45187

ADVANCE ARM - distributor (Delco-Remy #1947919), ignition and starting motor

1шт.

G46106

BRACKET

CLAMP - coil, ignition and starting motor, Delco-Remy

1шт.

*

#10 - 32 x 1-1/2" rd. hd. mach. screw, ignition and starting motor, Delco-Remy

1шт.

G46828

GASKET

GASKET - starting motor to torque tube (610B, 611B), ignition, Delco-Remy

1шт.

G46839

GASKET

GASKET - spark plug, ignition and starting motor, Delco-Remy

4шт.

VT2789

WIRE - #1 and #4 spark plug (10-1/2" long), ignition and starting motor, Delco-Remy

2шт.

VT4593

X

"O" RING - distributor to block, ignition and starting motor, Delco-Remy

1шт.

VT5060

X

WASHER - thrust, distributor advance arm, ignition and starting motor, Delco-Remy

1шт.

VTA3354

X

WIRE - #2 and #3 spark plug (8-1/2" long), ignition and starting motor, Delco-Remy

2шт.

41

SCREW

MAGNETO - "Case" flange mounted (See Magneto Parts Catalog), ignition

1шт.

G13085

ELECTRICAL WIRE

WIRE CABLE - voltage regulator to fuel gage, magneto igintion

1шт.

G13168

SWITCH

SWITCH - starting and ignition, w/keys, magneto

1шт.

G44840

SPARK PLUG

SPARK plug, includes gasket (Champion #D16 - 18 MM), magneto ignition

4шт.

G46839

GASKET

GASKET - spark plug, magneto ignition

4шт.

O449AB1

NIPPLE - rubber, spark plug wires to magneto, ignition

4шт.

VT2879

X

WIRE - no. 1 spark plug (14" long), magneto ignition

1шт.

VT3535

X

WIRE - nos. 2, 3 and 4 spark plugs (10-1/2" long), magneto ignition

3шт.
