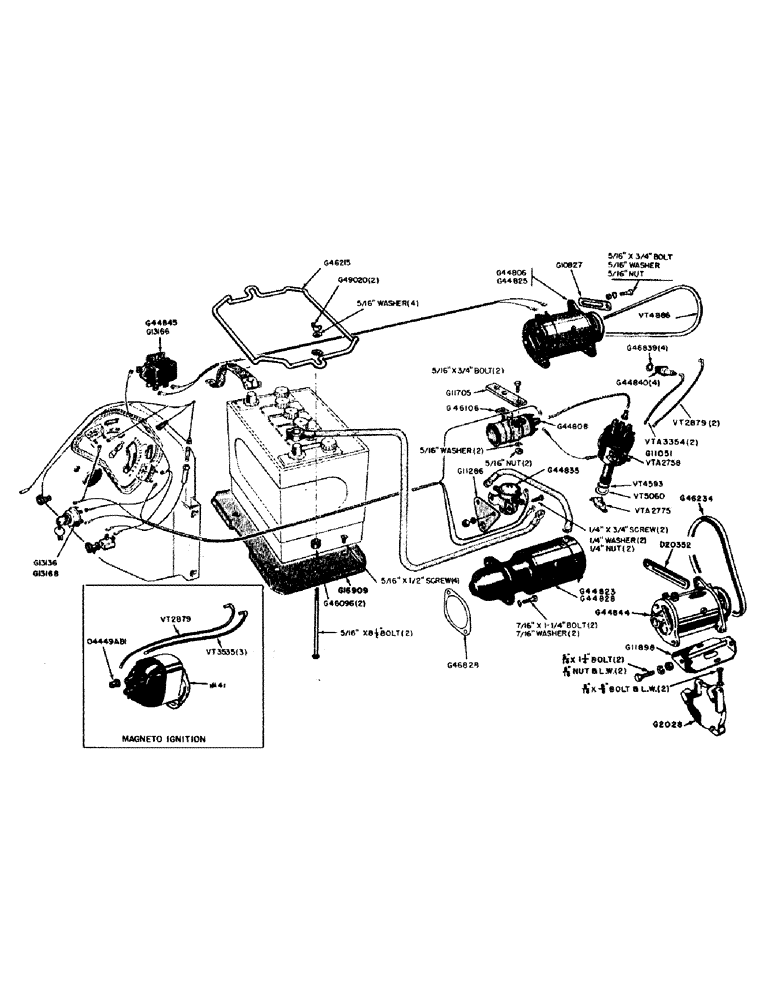

Запчасти Case IH 600B-SERIES (028) - BATTERY, GENERATOR, STARTING MOTOR AND IGNITION, AUTO-LITE, MAGNETO TO IGNITION (04) - ELECTRICAL SYSTEMS

BATTERY - 12 volt (Exide #2SM - 50) Not furnished by J.I. Case Co

1шт.

G16909

PAN

- battery base

1шт.

5/16" x 1/2" flat hd. mach. screw (Spin-lock)

4шт.

G46096

RETAINER

BUSHING - rubber, battery frame bolt

2шт.

G46215

X

FRAME - battery hold down

1шт.

5/16" x 9" carr. bolt w/lockwasher and plain washer

2шт.

G49020

NUT

- wing, battery frame bolts (5/16" N.C.)

2шт.

G1211

PULLEY - double, generator drive (Used only with power steering), L.H. mounted generator, Auto-Lite

1шт.

G10827

STRAP - adjusting, generator belt, L.H. mounted generator, Auto-Lite

1шт.

5/16" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher, L.H. mounted generator, Auto-Lite

1шт.

G13166

X

REGULATOR - voltage (Auto-Lite #VRT-4105), L.H. mounted generator

1шт.

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher, L.H. mounted generator, Auto-Lite

3шт.

G44806

GENERATOR - w/pulley (Auto-Lite #GHH-6002B) (See G44825), L.H. mounted

1шт.

5/16" x 1-1/4" N.F. hex. hd. bolt w/hex. nut, lockwasher and plain washer, L.H. mounted generator, Auto-Lite

2шт.

G44825

GENERATOR - minus pulley for power steering (Auto-Lite GHH6002S) (Can use G44806 by removing pulley), L.H. mounted

1шт.

VT4886

X

"V" BELT - fan and generator drive, L.H. mounted generator, Auto-Lite

1шт.

D20352

STRAP - adjusting, generator belt, R.H. mounted generator, Auto-Lite

1шт.

5/16" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher, R.H. mounted generator, Auto-Lite

1шт.

G2028

SUPPORT - mounting bracket, generator, R.H., Auto-Lite

1шт.

G11898

BRACKET - mounting, generator, R.H., Auto-Lite

1шт.

5/16" x 5/8" N.C. hex. hd. bolt w/lockwasher, R.H. mounted generator, Auto-Lite

2шт.

G44844

GENERATOR (Auto-Lite #GJL-7003A), R.H. mounted

1шт.

5/16" x 1-1/4" N.F. hex. hd. bolt w/hex. nut, lockwasher and plain washer, R.H. mounted generator, Auto-Lite

2шт.

G44845

REGULATOR

- voltage (Auto-Lite #VRT-4203), R.H. mounted generator

1шт.

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher, R.H. mounted generator, Auto-Lite

1шт.

G46234

V-BELT,0.78" W

Fan and Generator Drive, R.H. Mounted, Auto-Lite 0.78" W

1шт.

G11286

BRACKET - mounting, solenoid, ignition and starting motor, Auto-Lite

1шт.

G11705

BRACKET

- mounting, coil to engine, ignition and starting motor, Auto-Lite

1шт.

G13136

IGNITION SWITCH

SWITCH - starting and ignition, motor, Auto-Lite

1шт.

REFER TO G13136 KEY FOR SWITCH IS G15470

1шт.

G44808

X

COIL - ignition (Auto-Lite #CAG-4002A) (Includes G44818 clamp w/#10-32 x 1-1/2" rd. hd. mach. screw), starting motor

1шт.

5/16" x 3/4" N.F. hex. hd. bolt w/hex. nut and lockwasher, ignition and starting motor, Auto-Lite

2шт.

G44828

MOTOR - starting (Auto-Lite #MDL-6019), ignition and starting

1шт.

7/16" x 1-1/4" N.C. hex. hd. bolt w/lockwasher, ignition and starting motor, Auto-Lite

2шт.

G44835

SOLENOID

- starter switch, ignition and starting motor, Auto-Lite

1шт.

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher, ignition and starting motor, Auto-Lite

2шт.

G44840

SPARK PLUG

- includes gasket (Champion #D-16 - 18 MM), ignition and starting motor, Auto-Lite

4шт.

G46106

BRACKET

CLAMP - coil, ignition and starting motor, Auto-Lite

1шт.

#10 - 32 x 1-1/2" rd. hd. mach. screw, ignition and starting motor, Auto-Lite

1шт.

G46828

GASKET

- starting motor to torque tube (610B, 611B), ignition, Auto-Lite

1шт.

G46839

GASKET

- spark plug, ignition and starting motor, Auto-Lite

4шт.

VT2879

X

WIRE - #1 and #4 spark plug (10-1/2" long), ignition and starting motor, Auto-Lite

2шт.

VT4593

X

"O" RING - distributor to block, ignition and starting motor, Auto-Lite

1шт.

VT5060

X

WASHER - thrust, distributor advance arm, ignition and starting motor, Auto-Lite

1шт.

VTA2758

X

DISTRIBUTOR (Auto-Lite #IAD-6003-2F), ignition and starting motor

1шт.

VTA2775

X

ADVANCE ARM - distributor (Auto-Lite #IG-1860-A1), ignition and starting motor

1шт.

VTA3354

X

WIRE - #2 and #3 spark plug (8-1/2" long), ignition and starting motor, Auto-Lite

2шт.

41

SCREW

MAGNETO - "CASE" flange mounted (See Magneto Parts Catalog), ignition

1шт.

G13168

SWITCH

- starting and igntion, w/keys, magneto

1шт.

G44840

SPARK PLUG

- includes gasket (Champion #D16 - 18 MM), magneto ignition

4шт.

G46839

GASKET

- spark plug, magneto ignition

4шт.

O4449AB

NIPPLE, LUBE

NIPPLE - rubber, spark plug wires to magneto, ignition

4шт.

VT2879

X

WIRE - no. 1 spark plug (14" long), magneto ignition

1шт.

VT3535

X

WIRE - nos. 2, 3 and 4 spark plugs (10-1/2" long), magneto ignition

3шт.
