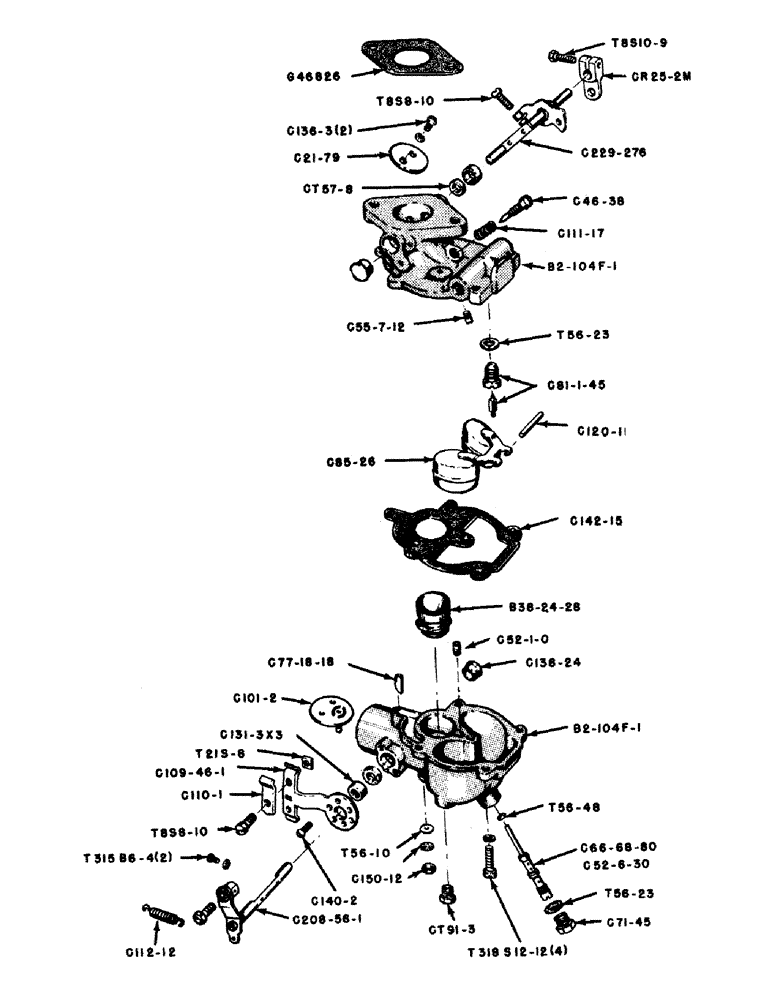

Запчасти Case IH 600B-SERIES (024) - G45719 CARBURETOR, 500B AND 600B SERIES TRACTORS, ZENITH MODEL 62AJ10, OUTLINE NO. 12255 (03) - FUEL SYSTEM

B3-37AC-1

BOWL - fuel

1шт.

B12-12255

BODY - throttle (Complete)

1шт.

B38-24-28

VENTURI

1шт.

C21-79

PLATE - throttle

1шт.

C29-1320

SHAFT AND STOP LEVER - throttle

1шт.

C46-38

SCREW - idle adjusting

1шт.

Part of repair kit P/N B51556

1шт.

C52-1-0

JET - economizer

1шт.

Part of repair kit P/N B51556

1шт.

C52-6-30

JET - main

1шт.

Part of repair kit P/N B51556

1шт.

C55-7-12

JET - idle

1шт.

Part of repair kit P/N B51556

1шт.

C66-68-80

JET - discharge

1шт.

Part of repair kit P/N B51556

1шт.

C71-45

MAIN JET ADJUSTING ASSEMBLY

1шт.

C77-18-18

JET - well vent

1шт.

Part of repair kit P/N B51556

1шт.

C81-1-45

VALVE AND SEAT - fuel

1шт.

Part of repair kit P/N B51556

1шт.

B51352

FLOAT

ASSEMBLY (replaces C85-26)

1шт.

C101-2

PLATE - choke

1шт.

C105-18

SHAFT - choke

1шт.

C106-17

LEVER - choke

1шт.

C109-46-1

CHOKE BRACKET ASSEMBLY

1шт.

C110-1

CLAMP - choke wire

1шт.

C111-17

SPRING - idle adjusting

1шт.

C112-12

SPRING - choke lever return

1шт.

C120-15

AXLE - float

1шт.

Part of repair kit P/N B51556

1шт.

C131-2

PLUG - throttle shaft hole

1шт.

C131-3X3

RETAINER - shaft packing

1шт.

C135-29

DISC - drain

1шт.

C136-3

SCREW - throttle plate

2шт.

Part of repair kit P/N B51556

1шт.

C138-24

PLUG - choke shaft hole

1шт.

C140-2

SCREW - choke bracket

1шт.

C142-15

GASKET -, Serial Range: bowl-body

1шт.

Part of repair kit P/N B51556

1шт.

Part of gasket set P/N C181-65

1шт.

C150-12

FILTER - screen and plug

1шт.

C181-65

GASKET SET, Includes: Ref. C142-15, T56-4, T56-10, T56-23, T56-23, T56-24, T56-48

1шт.

CT57-8

WASHER - packing, throttle shaft

1шт.

Part of repair kit P/N B51556

1шт.

CT63-9

PIN - taper, throttle stop lever

1шт.

CT91-3

PLUG - drain

1шт.

B51566

KIT

REPAIR KIT, Includes: Ref. P/N C46-38, C52-1-0, C52-6-30, C55-7-12, C66-68-80, C77-18-18, C81-1-45, C120-15, C136-3, C142-15, CT57-8, T56-4, T56-10, T56-23, T56-24, T56-48, T315B6-4, T318S12-12, Replaces K12255

1шт.

T8S8-10

SCREW - choke wire clamp

1шт.

T8S8-10

SCREW - throttle lever stop

1шт.

T8S8-10

SCREW - choke lever swivel

1шт.

T21S8

NUT - choke wire clamp screw

1шт.

T22S-8

NUT - choke shaft

1шт.

T45-8

LOCKWASHER - choke shaft nut

1шт.

T56-4

WASHER - fiber, econimizer jet

1шт.

Part of repair kit P/N B51556

1шт.

Part of gasket set P/N C181-65

1шт.

T56-10

WASHER - filter screen

1шт.

Part of repair kit P/N B51556

1шт.

Part of gasket set P/N C181-65

1шт.

T56-23

WASHER - fiber, fuel valve and seat

1шт.

Part of repair kit P/N B51556

1шт.

T56-23

WASHER - fiber, main jet adjusting assembly

1шт.

Part of repair kit P/N B51556

1шт.

Part of gasket set P/N C181-65

1шт.

T56-23

WASHER - fiber, choke shaft hole plug

1шт.

Part of repair kit P/N B51556

1шт.

Part of gasket set P/N C181-65

1шт.

T56-24

WASHER - main jet

1шт.

Part of repair kit P/N B51556

1шт.

Part of gasket set P/N C181-65

1шт.

T56-48

WASHER - discharge jet

1шт.

Part of repair kit P/N B51556

1шт.

Part of gasket set P/N C181-65

1шт.

T301S8-6

SCREW - venturi

1шт.

T315B6-4

SCREW - choke plate

2шт.

Part of repair kit P/N B51556

1шт.

T318S12-12

SCREW -, Serial Range: bowl-body

4шт.

Part of repair kit P/N B51556

1шт.

G45719

CARBURETOR

COMPLETE (Zenith model 62AJ10 outline #12255)

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.
