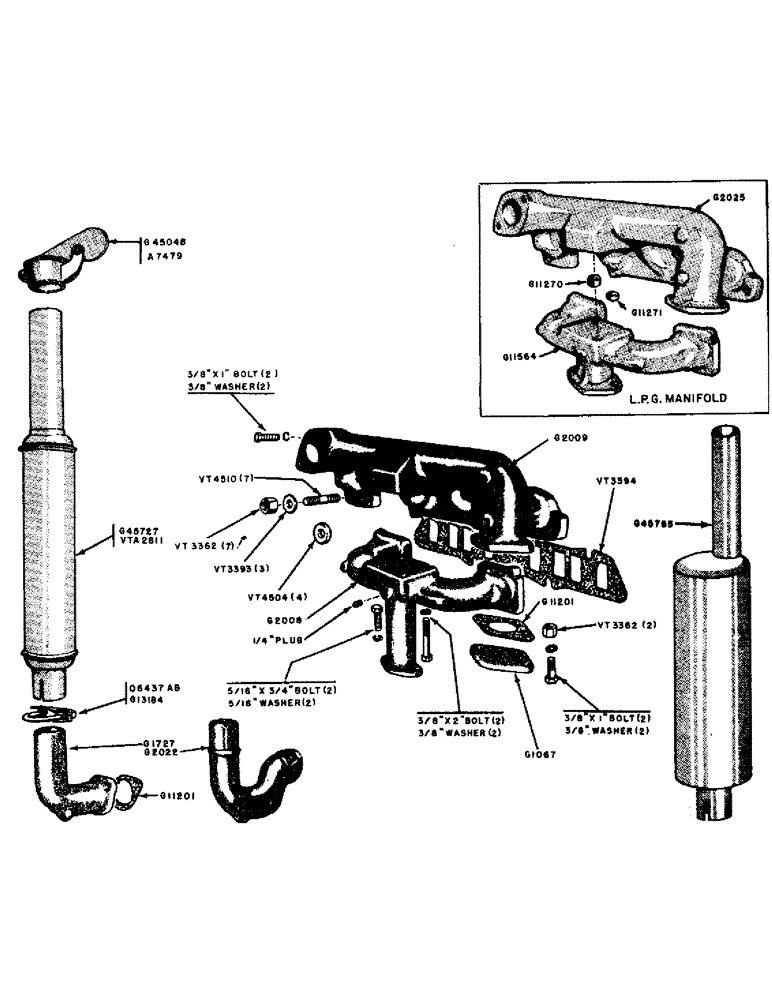

Запчасти Case IH 600B-SERIES (014) - MANIFOLD AND UPRIGHT MUFFLER, MANIFOLD FOR L.P.G. ENGINE (02) - ENGINE

A7479

CAP

- weather (610B, 611B) See G45048

1шт.

G1067

COVER - exhaust manifold opening

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G1727

ELBOW - exhaust, upright muffler (610B, 611B) (510B, 511B, w/G45765 muffler) See G2022

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G2008

MANIFOLD - intake

1шт.

G2009

MANIFOLD

- exhaust

1шт.

O2022

ELBOW - exhaust, upright muffler (510B, 511B) See G1727

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

2шт.

G11201

GASKET

- elbow and opening cover

2шт.

G13184

CLAMP

- muffler (510B, 511B) See 06437AB

1шт.

G45048

CAP

- weather (510B, 511B) See A7479

1шт.

G45727

MUFFLER

- upright (610B, 611B) See VTA2811

1шт.

G45765

X

MUFFLER - super quiet

1шт.

O6437AB

X

CLAMP - muffler (610B, 611B) See G13184 (510B, 511B w/G45765 muffler)

1шт.

VT3362

X

NUT - brass, exhaust manifold and cover

9шт.

VT3393

X

WASHER - plain (3/4" O.D. x 13/32 I.D. x 1/16")

3шт.

VT3394

X

GASKET - manifold, exhaust and intake

1шт.

VT4504

WASHER

- plain (7/8" O.D. x 13/32" I.D. x 1/8")

4шт.

VT4510

X

STUD - manifold to cylinder head (3/8" x 1-3/4")

7шт.

VTA2811

X

MUFFLER - upright (510B, 511B) See G45727

1шт.

G2024

MANIFOLD - intake (Use G11564), for L.P.G. engine

1шт.

G2025

MANIFOLD - exhaust, for L.P.G. engine

1шт.

G11270

SPACER

- inner, intake manifold to exhaust manifold, for L.P.G. engine

1шт.

G11271

SPACER

- outer, intake manifold to exhaust manifold, for L.P.G. engine

1шт.

G11564

MANIFOLD - intake (Includes 1/8" pipe plug), for L.P.G. engine

1шт.
