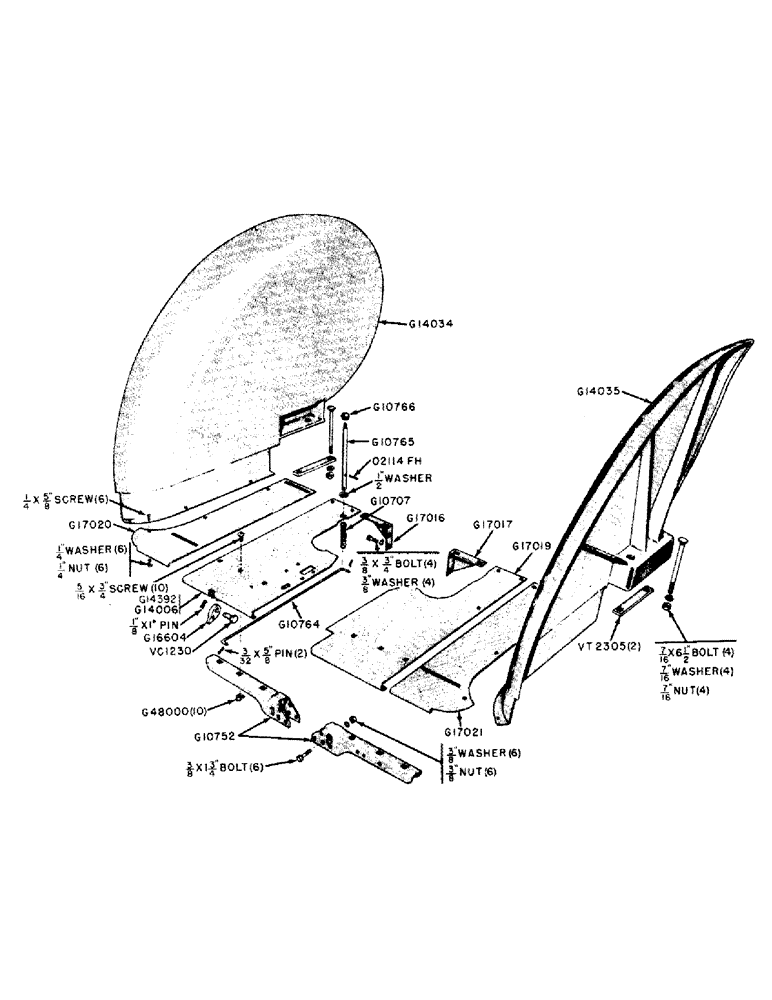

Запчасти Case IH 600B-SERIES (125) - STEP PLATES AND FENDERS (09) - CHASSIS

G10707

VALVE SPRING

SPRING - brake release lever

1шт.

G10752

SUPPORT - front, step plate

2шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/hex. nut and lockwasher

6шт.

G10764

DRAG LINK

LINK - connecting, Serial Range: lever-pedal

1шт.

3/32" x 5/8" cotter pin

2шт.

G10765

LEVER

- hand, brake release

1шт.

1/2" plain washer

1шт.

G10766

KNOB

- brake release lever

1шт.

G14006

PLATE - step, R.H. inside (Before tractor #6120001)

1шт.

5/16" x 3/4" truss hd. mach. screw (Philips recessed)

5шт.

G14034

FENDER - R.H.

1шт.

G14035

FENDER - L.H.

1шт.

G14392

PLATE - step, R.H. inside (Tractor #6120001 and after)

1шт.

G16604

BRAKE LINE

PAWL - brake lock

1шт.

G17016

SUPPORT - rear, R.H. step plate

1шт.

3/8" x 3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G17017

SUPPORT - rear, L.H. step plate

1шт.

3/8" x 3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G17019

PLATE - step, L.H. inside

1шт.

5/16" x 3/4" truss hd. mach. screw (Philips recessed)

5шт.

G17020

EXTENSION - R.H. step plate

1шт.

1/4" x 5/8" rd. hd. mach. screw w/hex. nut and lockwasher

3шт.

G17021

EXTENSION - L.H. step plate

1шт.

1/4" x 5/8" rd. hd. mach. screw w/hex. nut and lockwasher

3шт.

G48000

X

NUT - step plates to support (5/16" cage nut)

10шт.

O2114FH

X

ROLL PIN - release lever (1/8" x 1")

1шт.

VC1230

PIN - pivot, brake pawl

1шт.

1/8" x 1" cotter pin

1шт.

VT2305

CLAMP - fender to axle housing

2шт.

7/16" x 6-1/2" carr. bolt w/hex. nut and lockwasher

4шт.
