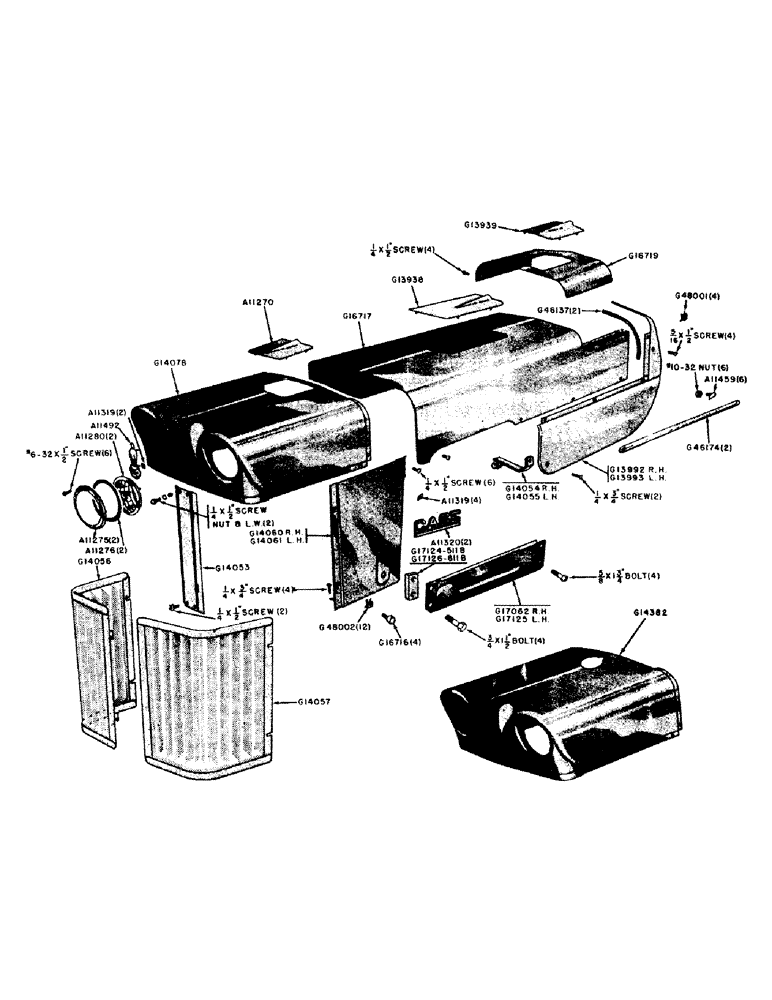

Запчасти Case IH 600B-SERIES (040) - HOOD, GRILLE AND SIDE PANELS, IMPLEMENT MOUNTING RAILS 511B AND 611B GENERAL PURPOSE TRACTORS (09) - CHASSIS

A11270

DOOR

- radiator access

1шт.

A11275

RING

- retainer, head lamp

2шт.

#6-32 x 1/2" pan hd., type #1 self tapping screw

6шт.

A11276

GASKET

- head, Serial Range: lamp-ring

1шт.

A11280

LAMP

- head, R.H. and L.H. (No. 4411)

2шт.

A11319

X

CLIP - retainer, name plate and emblem

6шт.

A11320

PLATE

- name, "Case"

2шт.

A11459

BOLT

"T" BOLT - moulding strip

6шт.

#10 - 32 Keps nut

6шт.

A11492

X

EMBLEM - front

1шт.

G13938

DOOR - fuel and oil access

1шт.

G13939

DOOR

- battery access

1шт.

G13992

PANEL - side, R.H. rear

1шт.

5/16" x 1/2" truss hd. mach. screw

2шт.

1/4" x 3/4" truss hd. mach. screw

1шт.

G13993

PANEL - side, L.H. rear

1шт.

5/16" x 1/2" truss hd. mach. screw

2шт.

1/4" x 3/4" truss hd. mach. screw

1шт.

G14053

BRACE - center, grille

1шт.

1/4" x 1/2" truss hd. mach. screw

2шт.

1/4" x 1/2" truss hd. mach. screw w/hex. nut and lockwasher

2шт.

G14054

SUPPORT - R.H. side panel to torque tube

1шт.

G14055

SUPPORT - L.H. side panel to torque tube

1шт.

G14056

SCREEN - R.H. grille

1шт.

G14057

SCREEN - L.H. grille

1шт.

G14060

PANEL - side, R.H. front

1шт.

1/4" x 1/2" truss hd. mach. screw

2шт.

1/4" x 3/4" hex. hd. cap screw (Sems)

2шт.

G14061

PANEL - side, L.H. front

1шт.

1/4" x 1/2" truss hd. mach. screw

2шт.

1/4" x 3/4" hex. hd. cap screw (Sems)

2шт.

G14078

CAP - grille (Before tractor #6120001)

1шт.

G14382

CAP - grille (Tractor #6120001 and after)

1шт.

G16716

X

SCREW - grille screen to side panel (1/2" knurled hd.)

4шт.

G16717

HOOD

1шт.

1/4" x 1/2" truss hd. mach. screw

2шт.

1/4" x 3/4" truss hd. mach. screw w/hex. nut and lockwasher

2шт.

5/16" x 1/2" truss hd. mach. screw

4шт.

G16719

COVER

- battery

1шт.

1/4" x 1/2" truss hd. mach. screw (Philips type)

4шт.

G46137

MOULDING - rubber (16" long)

2шт.

G46174

X

STRIP - chrome moulding

2шт.

G48001

X

NUT - retainer, hood to instrument panel (5/16" cage nut)

4шт.

G48002

X

NUT - retainer, 8 in side panels and 4 in grille cap (1/4" cage nut)

12шт.

G17062

RAIL - R.H. implement mounting, 511B and 611B general purpose tractors

1шт.

5/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher, implement mounting rails 511B and 611B general purpose tractors

2шт.

3/4" x 1-1/2" N.C. hex. hd. bolt w/lockwasher, implement mounting rails 511B and 611B general purpose tractors

2шт.

G17124

SPACER - mounting rail (511B), implement 511B and 611B general purpose tractors

2шт.

G17125

RAIL - L.H., implement mounting, 511B and 611B general purpose tractors

1шт.

5/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher, implement mounting rails 511B and 611B general purpose tractors

2шт.

5/8" x 1-1/2" N.C. hex. hd. bolt w/lockwasher, implement mounting rails 511B and 611B general purpose tractors

2шт.

G17126

SPACER - mounting rail (611B), implement 511B and 611B general purpose tractors

2шт.
