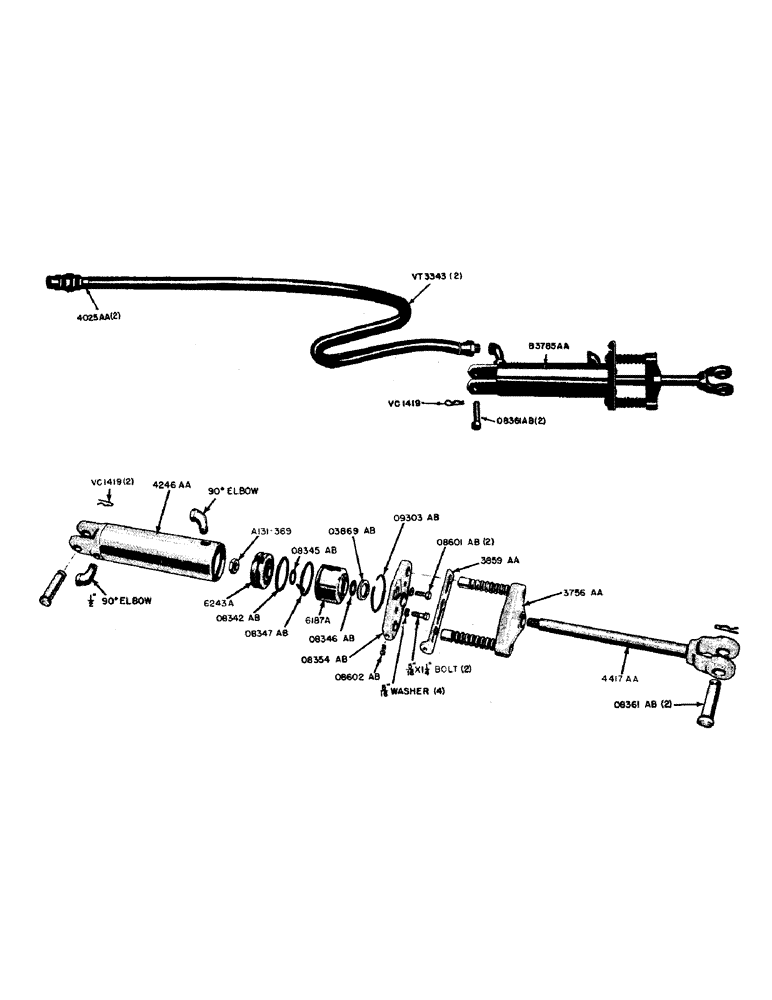

Запчасти Case IH 600B-SERIES (124) - PORTABLE HYDRAULIC CYLINDER AND HOSE, PARTS FOR B3785AA PORTABLE CYLINDER (08) - HYDRAULICS

O8361AB

X

PIN - coupling, portable cylinder

2шт.

VC1419

X

PIN - cotter, hairpin

2шт.

VT3343

HOSE - hydraulic, rear (3/8" I.D. x 110" long)

2шт.

B3785AA

CYLINDER - portable hydraulic (3-1/4" x 8")

1шт.

4025AA

X

PLUG - break-away coupling

2шт.

A131-369

NUT - lock, piston rod (7/8" N.F. Gripco), parts for B3785AA portable cylinder

1шт.

6044A

HEAD (Use 4246AA), parts for B3785AA portable cylinder

1шт.

6187A

HEAD - inner, parts for B3785AA portable cylinder

1шт.

Part of complete cylinder P/N B3785AA

1шт.

6243A

PISTON

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O3869AB

X

OIL SEAL - piston rod, parts for B3785AA portable cylinder

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O8342AB

X

"O" RING - piston, parts for B3785AA portable cylinder

1шт.

O8345AB

X

GASKET - piston rod, parts for B3785AA portable cylinder

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O8346AB

X

"O" RING - piston rod, parts for B3785AA portable cylinder

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O8347AB

X

"O" RING - hydraulic cylinder, parts for B3785AA portable cylinder

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O8354AB

GUIDE - limit stop pin

1шт.

Part of complete cylinder P/N B3785AA

1шт.

5/16" x 1-1/4" hex. hd. bolt, N.C. w/lockwasher

2шт.

O8361AB

X

PIN - hydraulic cylinder yoke end, parts for B3785AA portable cylinder

2шт.

O8601AB

X

SCREW - stop latch, parts for B3785AA portable cylinder

2шт.

Part of complete cylinder P/N B3785AA

1шт.

5/16" lockwasher (Shakeproof #1218-4)

2шт.

O8602AB

X

SPRING - limit stop latch, parts for B3785AA portable cylinder

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O9303AB

X

RING - snap, cylinder head, parts for B3785AA portable cylinder

1шт.

Part of complete cylinder P/N B3785AA

1шт.

VC1419

X

COTTER - hair pin, for O8361AB yoke pin, parts for B3785AA portable cylinder

2шт.

3756AA

STOP AND PIN - hydraulic cylinder limit

1шт.

Part of complete cylinder P/N B3785AA

1шт.

B3785AA

CYLINDER COMPLETE, Includes: Ref. P/N 6187A, 6243A, 03869AB, 08345AB, 08346AB, 08347AB, 08354AB, 08601AB, 08602AB, 09303AB, 3756AA, 3859AA, 4246AA, 4417AA

1шт.

3859AA

X

LATCH - limit stop, parts for B3785AA portable cylinder

1шт.

Part of complete cylinder P/N B3785AA

1шт.

4246AA

CYLINDER AND HEAD

1шт.

Part of complete cylinder P/N B3785AA

1шт.

1/2" 90 degree street elbow

2шт.

4417AA

ROD - piston, w/yoke

1шт.

Part of complete cylinder P/N B3785AA

1шт.

7/8" lockwasher (Shakeproof #1234)

1шт.
