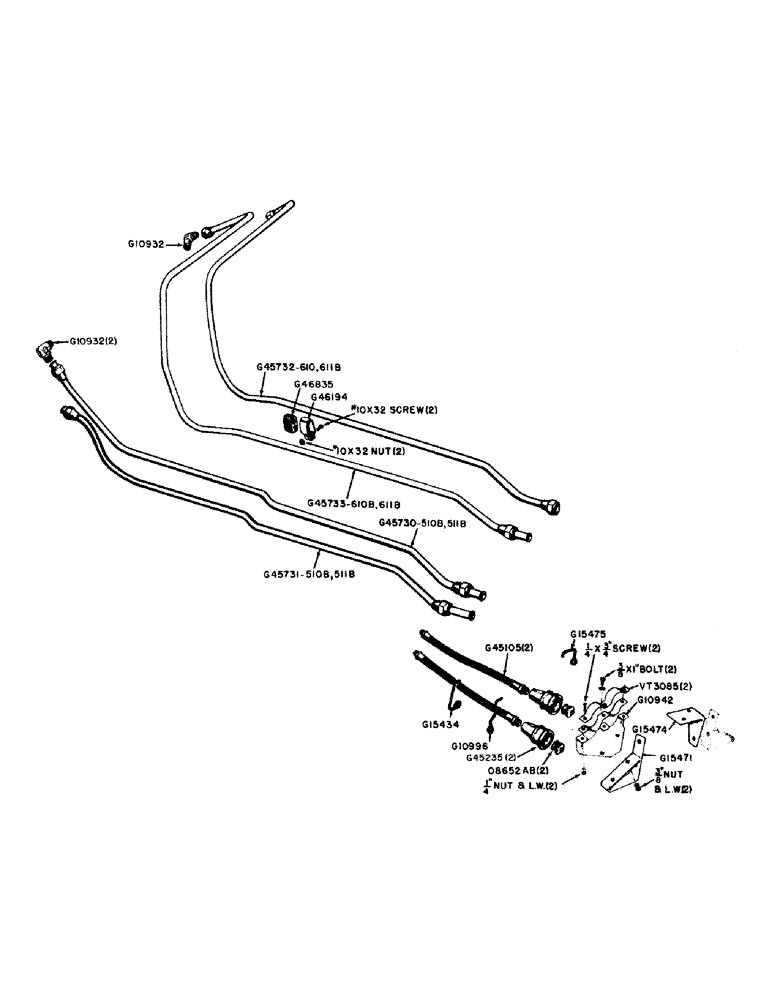

Запчасти Case IH 600B-SERIES (122) - HYDRAULIC FRONT HOSE AND COUPLINGS (08) - HYDRAULICS

G10932

ELBOW

-, Serial Range: tube-interlock

2шт.

G10942

HOLDER - hose clamp

1шт.

3/8" x 1" N.F. hex. hd. bolt w/hex. nut and lockwasher

2шт.

G10996

SUPPORT - tube to braking housing

1шт.

G15434

SUPPORT - tube to transmission stud

1шт.

G15471

BRACKET - clamp holder

1шт.

3/8" x 3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

3/8" N.C. hex. nut (Used only when hoses are on R.H. side)

2шт.

G15474

BRACKET - adapter, clamp holder (When hoses are on R.H. side)

1шт.

G15475

SUPPORT - tube (When hoses are on R.H. side)

1шт.

G45105

X

HOSE - hydraulic, tube to socket (18" long)

2шт.

G30463

SOCKET - break - away

2шт.

G45730

TUBE - upper (510B, 511B)

1шт.

G45731

TUBE - lower (510B, 511B)

1шт.

G45732

TUBE - upper (610B, 611B) 0.5" OD x 31.375" L

1шт.

G45733

TUBE - lower (610B, 611B) 0.5" OD x 32" L

1шт.

G46194

CLAMP

- tube

1шт.

#10 - 32 x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

G46835

GROMMET

- rubber, hydraulic tube

1шт.

O8652AB

X

PLUG - dust

2шт.

VT3085

CLAMP -, Serial Range: hose-holder

2шт.

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher

3шт.
