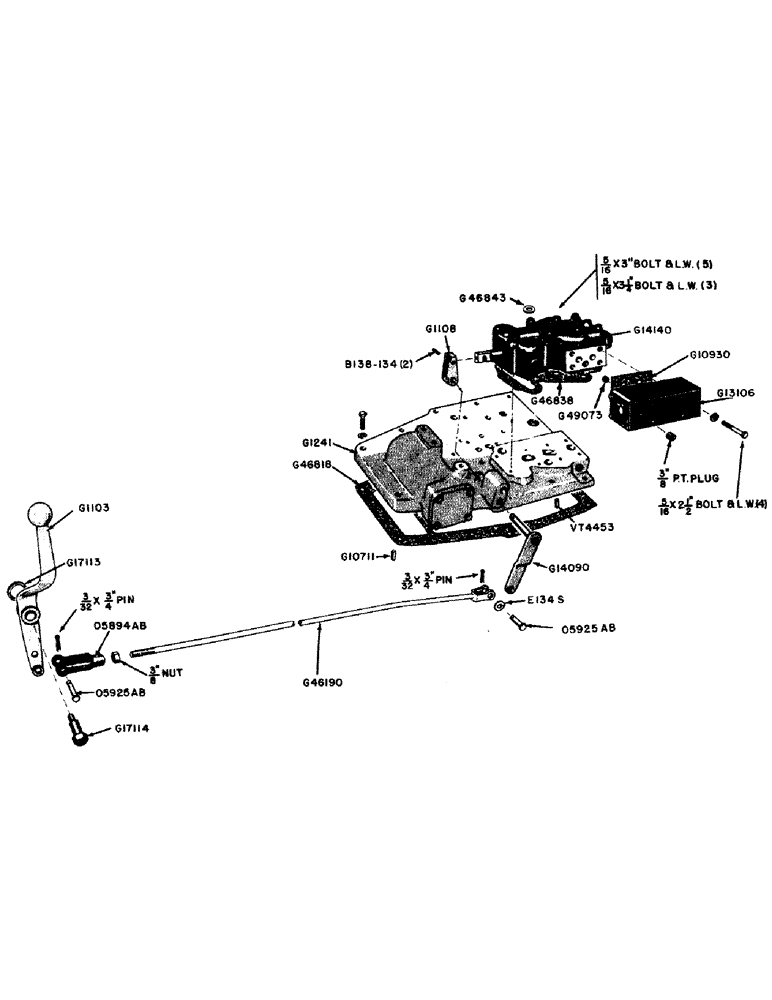

Запчасти Case IH 600B-SERIES (110) - HYDRAULIC CONTROLS AND LEVER, 610B AND 611B TRACTORS WITH EAGLE HITCH (08) - HYDRAULICS

G1103

LEVER

- hand control

1шт.

G1108

ARM ASSY.

BELLCRANK - control valve, Serial Range: crank-valve

1шт.

G1241

HOUSING - adpater, hydraulic pump and control

1шт.

G10711

PIN

- rear dowel, adapter to torque tube

1шт.

G10930

GASKET

- interlock to control valve

1шт.

G13106

INTERLOCK - hydraulic (See page 109)

1шт.

5/16" x 2-1/2" N.C. hex. hd. bolt w/lockwasher

4шт.

3/8" std. ctsk. hd. pipe plug

1шт.

G14090

CRANK - hydraulic valve control

1шт.

G14140

VALVE - hydraulic control (See page 114)

1шт.

5/16" x 3" N.C. hex. hd. bolt w/lockwasher

4шт.

5/16" x 3-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

G17113

WASHER - spacer, hand lever (1-1/8" O.D. x 33/64" I.D. x 1/4")

1шт.

G17114

BOLT - pivot, hand control lever (1/2" x 2-3/4")

1шт.

G46190

ROD - control, hand, Serial Range: lever-crank

1шт.

3/8" N.F. hex. nut

1шт.

G46818

GASKET

- adapter housing to torque tube

1шт.

G46838

GASKET

- control valve to adapter housing

1шт.

G46843

X

WASHER - sealing, cover bolt

1шт.

G49073

PLUG - drilled, interlock (w/E.H. only)

1шт.

O5894AB

YOKE

- control rod

1шт.

O5925AB

X

PIN - yoke

1шт.

3/32" x 3/4" cotter pin

1шт.

VT4453

X

PIN - front dowel, adapter to torque tube

1шт.

E134S

WASHER - spacer, O5925AB pin

1шт.

B138-134

ROLL PIN - control valve bellcrank (1/4" x 1")

2шт.
