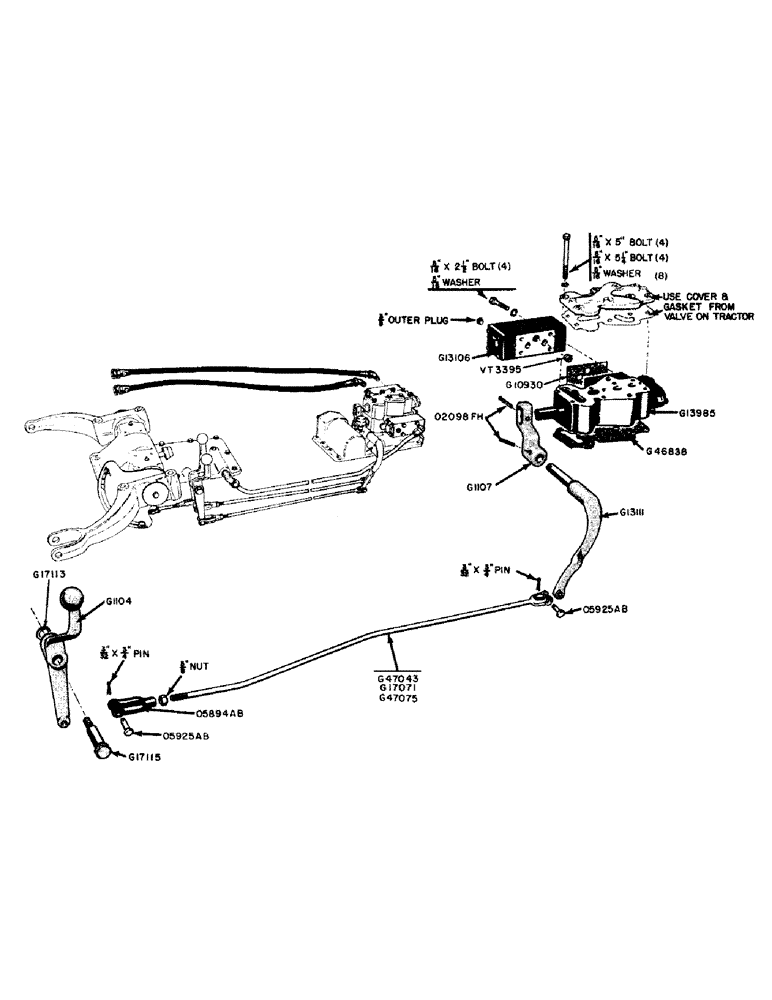

Запчасти Case IH 600B-SERIES (105) - HYDRAULIC CONTROLS AND LEVER, 510B AND 511B TRACTORS W/ REMOTE CONTROL AND EAGLE HITCH (08) - HYDRAULICS

G1104

LEVER

- outer, hydraulic hand control

1шт.

G1107

CRANK

BELLCRANK - upper, control valve, Serial Range: crank-valve

1шт.

G10930

GASKET

- interlock to control body

1шт.

G13106

INTERLOCK - hydraulic (R.H. side) (See page 109)

1шт.

5/16" x 2-1/2" N.C. hex. hd. bolt w/lockwasher

4шт.

G13111

CRANK

- control, upper valve

1шт.

G13985

VALVE - hydraulic control (Includes VT3395 plug) (See page 108)

1шт.

5/16" x 5" N.C. hex. hd. bolt w/lockwasher

4шт.

5/16" x 5-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

G17071

ROD - control, hand lever to crank (33-3/8" long) (Before tractor #6120001)

1шт.

3/8" N.F. hex. nut

1шт.

G17113

WASHER - spacer, shoulder bolt (1-1/8" O.D. x 33/64" I.D. x 1/4")

1шт.

G17115

BOLT - pivot, hand control levers (1/2" x 4-1/2")

1шт.

G47075

ROD - control, hand lever to crank (Tractor #6120001 and after)

1шт.

G46830

GASKET - control valve

1шт.

O5894AB

YOKE

- control rod

1шт.

O5925AB

X

PIN - yoke

2шт.

3/32" x 3/4" cotter pin

2шт.

O2098FH

X

ROLL PIN - bellcrank (1/4" x 1")

2шт.

VT3395

X

PLUG - pipe, interlock (1/4" ctsk. hd.)

1шт.

G47043

ROD - control, hand lever to crank (30-3/4" long), for remote control without eagle hitch

1шт.
