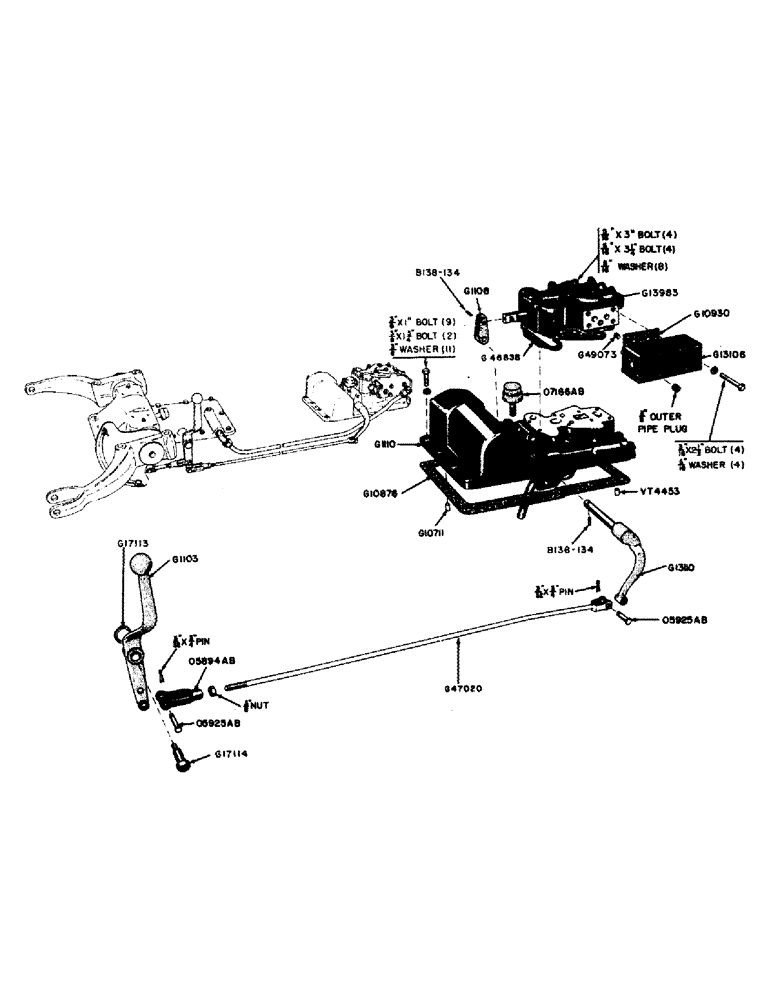

Запчасти Case IH 600B-SERIES (104) - HYDRAULIC CONTROLS AND LEVER, 510B AND 511B WITH EAGLE HITCH (08) - HYDRAULICS

G1103

LEVER

- hand control, hydraulic

1шт.

G1108

ARM ASSY.

BELLCRANK - control valve, Serial Range: crank-valve

1шт.

G1110

HOUSING - adapter, hydraulic pump and control

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

9шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

2шт.

G10711

PIN

- rear dowel, adapter to torque tube (1/2" x 3/4")

1шт.

G10876

GASKET

- adapter housing to torque tube

1шт.

G10930

GASKET

- interlock to control valve

1шт.

G13106

INTERLOCK - hydraulic (See page 109)

1шт.

5/16" x 2-1/2" N.C. hex hd. bolt w/lockwasher

4шт.

3/8" std. ctsk. hd. pipe plug

1шт.

G13110

CRANK

- valve control

1шт.

G13983

VALVE - hydraulic control (Includes ball and spring) (See page 108)

1шт.

5/16" x 3" N.C. hex. hd. bolt w/lockwasher

4шт.

5/16" x 3-1/4" N.C. hex. hd. bolt w/lockwasher

4шт.

G17113

WASHER - spacer, hand lever (1-1/8" O.D. x 33/64" I.D. x 1/4")

1шт.

G17114

BOLT - pivot, hand control lever (1/2" x 2-3/4")

1шт.

G46838

GASKET

- control valve to adapter housing

1шт.

G47020

ROD - control, hand, Serial Range: lever-crank

1шт.

3/8" N.F. hex. nut

1шт.

G49073

PLUG - pipe, drilled, interlock (Use w/E.H. only)

1шт.

O5894AB

YOKE

- control rod

1шт.

O5925AB

X

PIN - yoke

2шт.

3/32" x 3/4" cotter pin

2шт.

O7166AB

X

BREATHER - adapter housing

1шт.

VT4453

X

PIN - dowel, front (3/8" x 3/4")

1шт.

B138-134

ROLL PIN - bellcrank (1/4" x 1")

2шт.
