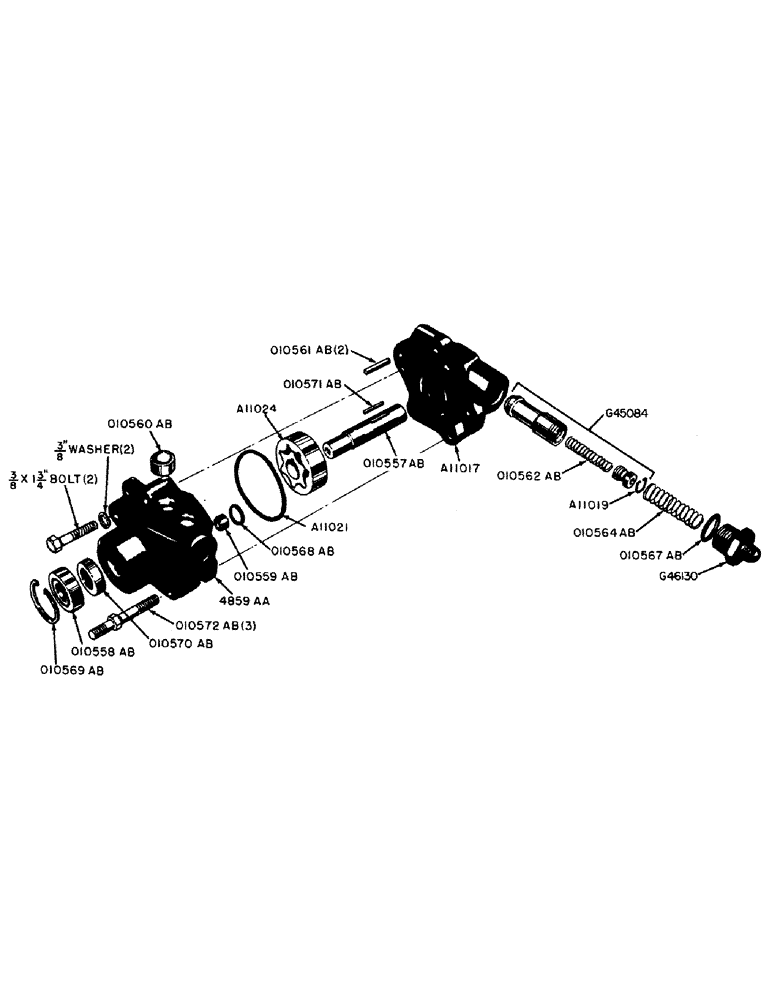

Запчасти Case IH 600B-SERIES (096) - PARTS FOR G45055 HYDRAULIC PUMP (08) - HYDRAULICS

A11017

COVER ASSEMBLY (Includes bushing and 2 - O10561AB dowel pins)

1шт.

A11019

SNAP RING - relief plunger

1шт.

A11021

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

"O" RING - pump body to cover

1шт.

A11024

ROTOR ASSEMBLY (Inner and outer rotor)

1шт.

G45084

VALVE - control, complete (Includes body, plunger, A11019 snap ring and O10562AB spring)

1шт.

G46130

FITTING - bolt, pump valve cap

1шт.

O10557AB

SHAFT - pump drive

1шт.

O10558AB

X

BEARING - pump shaft

1шт.

O10559AB

RETAINER - pump body gasket (9/16" x 1/4" long)

1шт.

O10560AB

RETAINER - pump body gasket (3/4" x 5/8" long)

1шт.

O10561AB

PIN - dowel, cover to pump body

2шт.

O10562AB

SPRING - relief valve plunger

1шт.

O10564AB

X

SPRING - flow control valve

1шт.

O10567AB

X

"O" RING - fitting, valve cap bolt

1шт.

O10568AB

X

"O" RING - flow director

1шт.

O10569AB

SNAP RING - for O10558AB bearing

1шт.

O10570AB

X

OIL SEAL - pump shaft

1шт.

O10571AB

X

PIN - drive, pump rotor

1шт.

O10572AB

STUD - pump, Serial Range: body-cover

3шт.

4859AA

BODY - pump (Includes bushings and O10559AB and O10560AB retainers)

1шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher

2шт.
