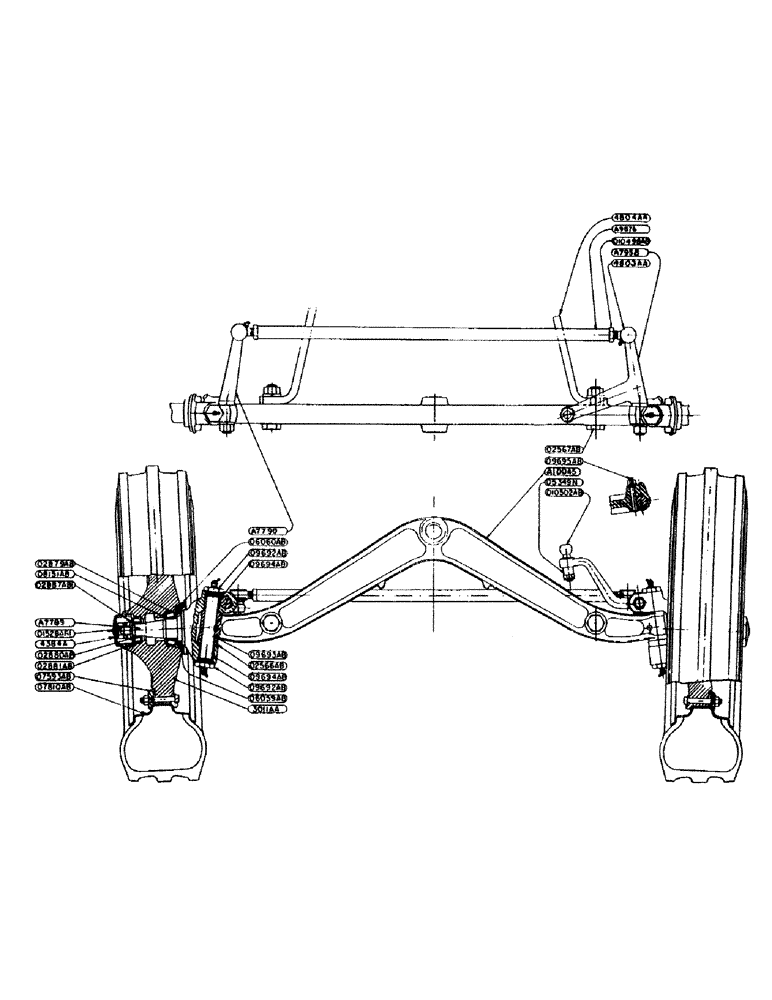

Запчасти Case IH 600-SERIES (095) - FRONT AXLE ASSEMBLY (06) - POWER TRAIN

A10045

AXLE - front, with O6133AB bushings

1шт.

6340A

BRACKET - front axle and radiator

1шт.

3/4" X 2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

O1237AB

X

LOCK - front axle king pin

2шт.

1/2" N.F. HEX. NUT

1шт.

O2567AB

X

BOLT - radius rod front

2шт.

1" N.F. HEX. NUT

2шт.

O4368AB

X

WASHER - radius rod pivot pin

1шт.

O6062AB

X

PIN - front axle pivot

1шт.

1/2" X 4" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

O6129AB

PIN - pivot radius rod

1шт.

1/8" 90 DEGREE LINCOLN FITTING NO. 5400

1шт.

3/4" N.F. HEX. NUT

1шт.

1-1/8" N.F. HEX. JAM NUT

1шт.

O6130AB

WASHER - radius rod pivot pin

7шт.

O6131AB

X

BUSHING - radius rod pivot pin

2шт.

O6132AB

WASHER - lock, radius rod pivot pin nut

1шт.

O6133AB

BUSHING - front axle pivot pin

2шт.

O9693AB

X

PIN - king, front axle

2шт.

4804AA

RADIUS ROD - with bushings

1шт.
