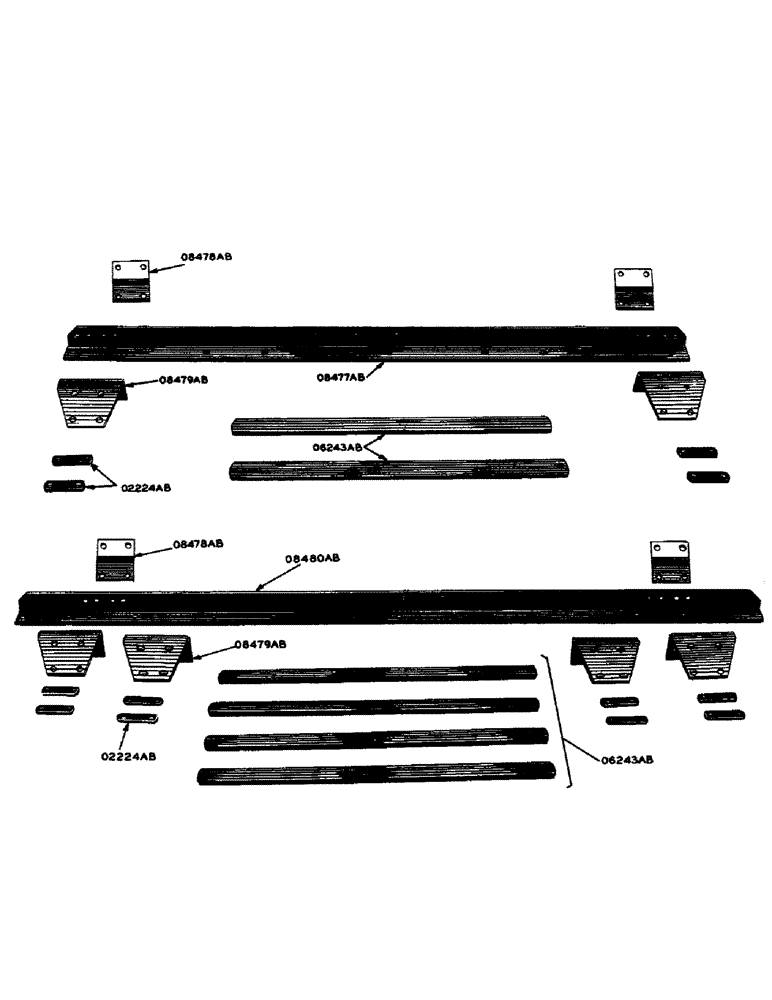

Запчасти Case IH 600-SERIES (092) - SCRAPER FOR 48" STEEL REAR WHEEL (06) - POWER TRAIN

O2224AB

STRAP - rear wheel scraper

4шт.

O6243AB

SCRAPER - rear wheel (See 3791AA)

2шт.

O8477AB

ANGLE - scraper, (63-5/8" long) rear wheel

1шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/LIGHT HEX. NUT AND LOCKWASHER

4шт.

O8478AB

BRACE - rear wheel scraper angle

2шт.

1/2" x 1-1/2" N.F. HEX. HD. CAP SCREW W/LIGHT HEX. NUT AND LOCKWASHER

4шт.

O8479AB

BRACKET - rear wheel scraper

2шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/LIGHT HEX. NUT AND LOCKWASHER

4шт.

1/2" X 1-3/4" N.F. HEX. HD. CAP SCREW W/LIGHT HEX. NUT AND LOCKWASHER

8шт.

3791AA

SCRAPER ATTACHMENT - rear wheel (Machy. item)

1шт.

O2224AB

STRAP - rear wheel scraper and extension rims (48")

8шт.

O6243AB

SCRAPER - rear wheel extension rim (See 3792AA) (48")

4шт.

O8478AB

BRACE - rear wheel scraper angle, extension rims (48")

2шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/LIGHT HEX. NUT AND LOCKWASHER, scraper for 48" rear wheel and extension rims

8шт.

O8479AB

BRACKET - rear wheel scraper and extension rim for 48"

4шт.

1/2" x 1-1/2" N.F. HEX. HD. CAP SCREW W/LIGHT HEX. NUT AND LOCKWASHER, scraper for 48" rear wheel and extension rim

8шт.

1/2" X 1-3/4" N.F. HEX. HD. CAP SCREW W/LIGHT HEX. NUT AND LOCKWASHER, scraper for 48" rear wheel and extension rim

16шт.

O8480AB

ANGLE - rear wheel extension rim scraper, (48")

1шт.

1/2" X 1-1/2" N.F. HEX. HD. CAP SCREW W/LIGHT HEX. NUT AND LOCKWASHER, scraper for 48" rear wheel and extension rim

4шт.

3792AA

SCRAPER ATTACHMENT - rear wheel extension rim (Machy. Item) ( 48")

1шт.
