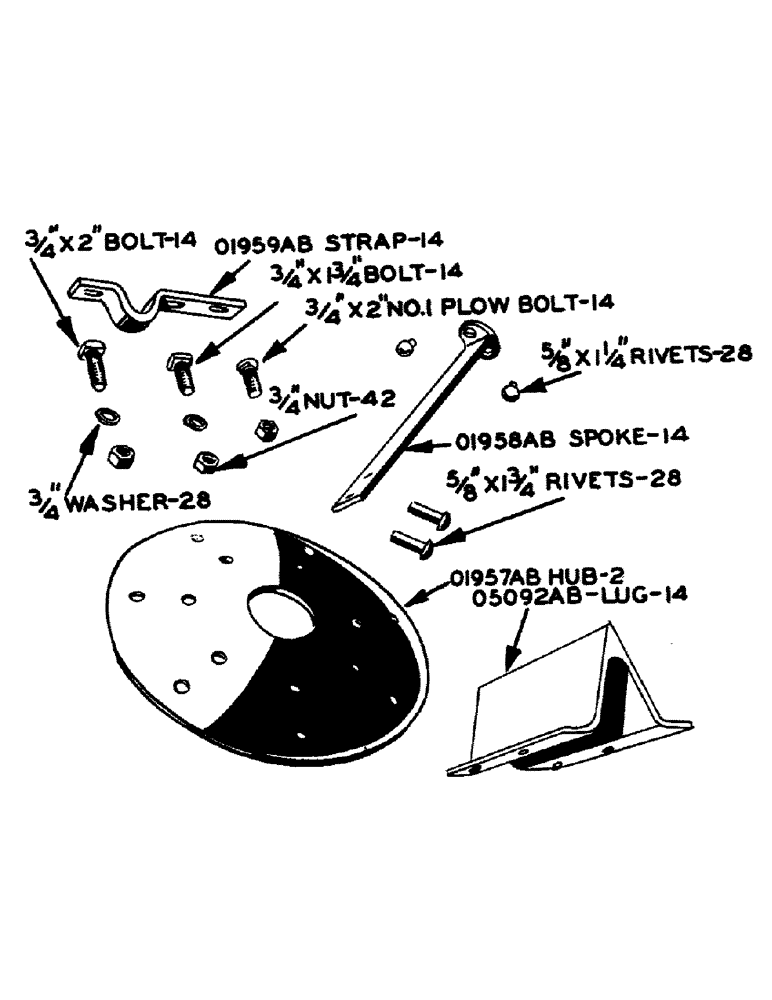

Запчасти Case IH 600-SERIES (090) - EXTENSION RIMS, 48" X 8", FOR REAR WHEELS, WITH CAST OR STEEL SPADE LUGS (06) - POWER TRAIN

O1957AB

HUB - extension rim

2шт.

O1958AB

SPOKE - extension rim

14шт.

5/8" X 1-1/4" RD. HD. RIVET

28шт.

5/8" X 1-3/4" RD. HD. RIVET

28шт.

O1959AB

STRAP - tie, extension rim

14шт.

3/4" X 2" NO. 1 KEY HEAD OLD STANDARD PLOW BOLT W/HEX. NUT (BOLTS TIE STRAP TO REAR WHEEL)

14шт.

3/4" X 1-3/4" MACH. BOLT W/HEX. NUT - tie strap to extension rim

14шт.

3/4" X 2" MACH. BOLT W/HEX. NUT - tie strap to rear wheel (With steel spade lugs)

14шт.

3/4" X 2-1/2" MACH. BOLT, W/HEX. NUT - tie strap to rear wheel (With cast spade lugs)

14шт.

3/4" STD. LOCKWASHER

28шт.

O4283AB

RIM - 48" x 8" extension

2шт.

A41AA

RIMS - set of 48" x 8" extension, with tie straps (For rear wheels with steel spade lugs) Consists of: 2 - 3727AA, 14 - O1959AB, 14 - 3/4" x 1-3/4" mach. bolts w/hex. nuts, 14 - 3/4" x 2" mach. bolts w/hex. nut and 42 - 3/4" std. lockwasher (Machy. item)

1шт.

A464AA

1шт.

RIMS - set of 48" x 8" extension, with tie straps (For rear wheels with cast spade lugs) Consists of: 2 - 3727AA, 14 - O1959AB, 14 - 3/4" x 1-3/4" mach. bolts with hex. nuts, 14 - 3/4" x 2-1/2" mach. bolt w/hex. nut and 14 - 3/4" x 2" no. 1 key head old standard plow bolt w/hex. nut and 42 - 3/4" std. lockwasher (Machy. item)

1шт.

3727AA

RIM - 48" x 8" extension, complete (Consists of: 1 - O1957AB, 1 - O1958AB, 1 - O4283AB, 14 - 5/8" x 1-1/4" rd. hd. rivets and 14 - 5/8" x 1-3/4" rd. hd. rivet)

2шт.

O1256AB

RIMS - for 48" x 12" extension, rear wheels used in rice fields

2шт.

O5092AB

LUG - 6" x 10-1/2" with tie strap, extension rims (48" x 12") for rear wheels used in rice fields

14шт.

3/4" X 1-1/2" MACH. BOLT W/HEX. NUT AND LOCKWASHER, extension rims (48" x 12") for rear wheels used in rice fields

56шт.

A1338AA

RIMS - set of 48" x 12" extension, with 6" x 10-1/2" lugs (Machy. item) Consists of: 2 - O1256AB rims, 14 - O5092AB lugs and 56 - 3/4" x 1-1/2" mach. bolt w/hex. nut and lockwasher, rear wheels used in rice fields

1шт.

A7103

SPARE PART

WHEEL - steel rear (54" x 11-1/8") Machy. item

2шт.

A7105

EXTENSION - rear wheel (54" x 8") Machy. item, steel

2шт.

O1959AB

STRAP - tie, rear wheel extension, steel

14шт.

3/4" X 1-3/4" MACH, BOLT W/HEX. NUT AND LOCKWASHER (Tie strap to extension), steel rear wheel (54" x 8")

14шт.

3/4" X 2" MACH. BOLT W/HEX. NUT AND LOCKWASHER (Tie strap to rear wheel), steel rear extensions (54" x 8")

14шт.

3/4" X 2" NO. 1 KEYHEAD OLD STANDARD PLOW BOLT W/HEX. NUT AND LOCKWASHER (Tie strap to extension), steel rear wheel (54" x 8")

14шт.

A7365

EXTENSION - rear wheel (54" x 12") Machy. item, steel

2шт.

O1959AB

STRAP - tie, rear wheel extension, steel (54" x 12")

14шт.

3/4" X 1-3/4" MACH. BOLT W/HEX. NUT AND LOCKWASHER (Tie strap to extension), steel rear wheel (54" x 12")

14шт.

3/4" X 2" MACH. BOLT W/HEX. NUT AND LOCKWASHER (Tie strap to rear wheel), steel extensions (54" x 12")

14шт.

3/4" X 2" NO. 1 KEY HEAD OLD STANDARD PLOW BOLT W/HEX. NUT AND LOCKWASHER, steel rear wheel extensions (54" x 12")

14шт.
