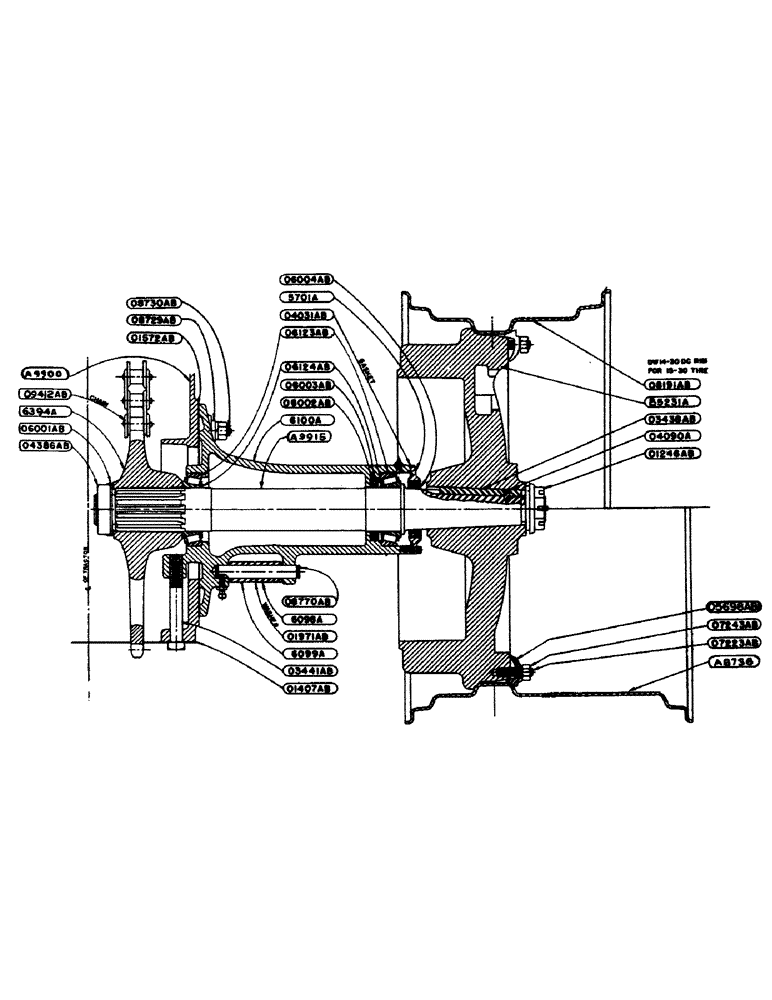

Запчасти Case IH 600-SERIES (084) - REAR AXLE ASSEMBLY (06) - POWER TRAIN

A9915

AXLE

SHAFT - rear axle

2шт.

A10056

STUD - clutch throwout hand lever support

2шт.

5701A

RETAINER - rear axle oil seal

2шт.

5/16" X 7/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

6шт.

6100A

HOUSING - rear axle

2шт.

1/8" STR. LINCOLN FITTING #5000

2шт.

6394A

SPROCKET - rear axle, 33 teeth (For 2" pitch roller chain)

2шт.

O4090A

DOWEL - rear axle key

2шт.

O1246AB

NUT - outer, rear axle shaft

2шт.

1/4" X 2-1/2" COTTER PIN

2шт.

O1572AB

GASKET - rear axle housing

2шт.

O3438AB

X

KEY - rear axle

2шт.

O3441AB

SCREW - adjusting, rear axle housing

2шт.

O4031AB

X

GASKET - oil seal retainer

2шт.

O4386AB

NUT - inner, rear axle shaft

2шт.

O6001AB

X

WASHER - lock, rear axle shaft inner nut

2шт.

O6002AB

X

WASHER - felt, rear axle shaft

2шт.

O6003AB

RETAINER - felt, rear axle shaft

2шт.

O6004AB

OIL SEAL

- rear axle shaft

2шт.

O6123AB

X

CUP - (Timken #47621) rear axle bearing

4шт.

O6124AB

X

CONE - (Timken #47686) rear axle bearing

4шт.

O8729AB

X

WASHER - rear axle housing stud

10шт.

O8730AB

STUD - rear axle housing (3/4" x 3-3/8" long)

8шт.

3/4" N.F. HEX. NUT W/LOCKWASHER

8шт.

O9412AB

CHAIN - roller, rear axle drive (38 links of 2" pitch roller chain)

2шт.

O10508AB

LINK - roller, for O9412AB chain

1шт.

2770AA

KEY - for assembling O6004AB oil seal

1шт.

4821AA

LINK - connecting, with detachable plate and cotter pins for O9412AB chain

1шт.

3/16" X 1" HARDENED COTTER PIN

2шт.
