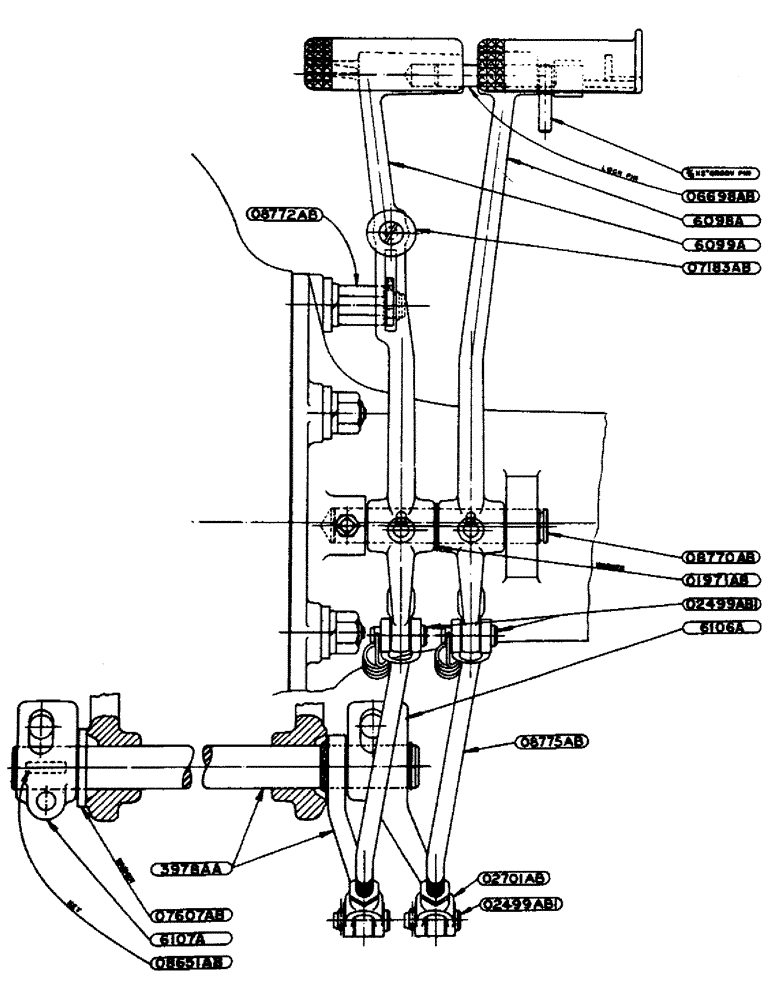

Запчасти Case IH 600-SERIES (080) - DIFFERENTIAL BRAKE ASSEMBLY (06) - POWER TRAIN

A9143

BUSHING

RATCHET - differential brake pedal

1шт.

A10107

SPARE PART

BOLT - differential brake bearing carrier anchor

1шт.

6096A

COVER - differential brake

2шт.

1/2" X 3-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

14шт.

3/8" SQ. HD. PIPE PLUG

2шт.

6097A

X

DISC - differential brake actuating (Their no. BP776)

4шт.

6098A

PEDAL - differential brake, R.H.

1шт.

1/8" 90 DEGREE LINCOLN FITTING NO. 5400

1шт.

5/16" X 1" N.C. SQ. HD. CUP POINT SET SCREW W/HEX. NUT

1шт.

6099A

PEDAL - differential brake, L.H.

1шт.

1/8" 90 DEGREE LINCOLN FITTING #5400

1шт.

5/16" X 1" N.C. SQ. HD. CUP POINT SET SCREW W/HEX. NUT

1шт.

6106A

LEVER - differential brake, R.H.

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

6107A

LEVER - differential brake, L.H.

1шт.

1/2" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

O1971AB

WASHER - differential brake pedal spacer

2шт.

O2499AB1

X

PIN - yoke end, for O8763AB and O8775AB brake rods

6шт.

1/8" X 1" COTTER PIN

6шт.

O2701AB

X

END - yoke, for O8775AB brake rod

2шт.

O6044AB

X

SNAP RING - differential brake pedal ratchet stud

1шт.

O6698AB

PIN - differential brake pedal lock

1шт.

3/8" X 2" TYPE 1 GROOVE PIN

1шт.

O7183AB

X

PAWL - diffrential brake pedal

1шт.

3/8" X 7/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

O7607AB

WASHER - differential brake cross shaft

1шт.

O8295AB

X

INSERT - for 6097A actuating disc

12шт.

O8296AB

X

BALL - (5/8" steel) for 6097A actuating disc

6шт.

O8651AB

X

KEY - for 6107A lever

1шт.

O8762AB

X

CAP - differential brake dust

2шт.

O8763AB

X

ROD - pull, differential brake

2шт.

O8764AB

X

TRUNNION - differential brake pull rod

2шт.

O8765AB

X

NUT - differential brake pull rod

2шт.

O8770AB

PIN - fulcrum, differential brake pedal

1шт.

3/8" X 1-1/4" N.C. SQ. HD. POINT SET SCREW W/HEX. NUT

1шт.

O8772AB

STUD - differential brake pedal ratchet

1шт.

O8773AB

X

SPRING - differential brake pedal

2шт.

O8774AB

STUD - differential brake pedal spring hanger

1шт.

3/4" N.F. LIGHT HEX. NUT

1шт.

O8775AB

ROD - differential brake

2шт.

1/2" N.F. HEX. NUT

2шт.

O8780AB

X

SPRING - actuating disc

6шт.

O8781AB

X

LINK - single, actuating disc

2шт.

O8782AB

X

LINK - yoke, actuating disc

2шт.

O8783AB

X

BOLT - actuating disc link

4шт.

O8788AB

X

RIVET - differential brake lining

72шт.

O459FH

X

RING - retaining, differential brake cross shaft

1шт.

3973AA

X

DISC - middle with brake lining

4шт.

3978AA

SHAFT - cross, with lever, differential brake

1шт.

4046AA

X

LININGS - set of two, with rivets, for 3973AA disc

4шт.
