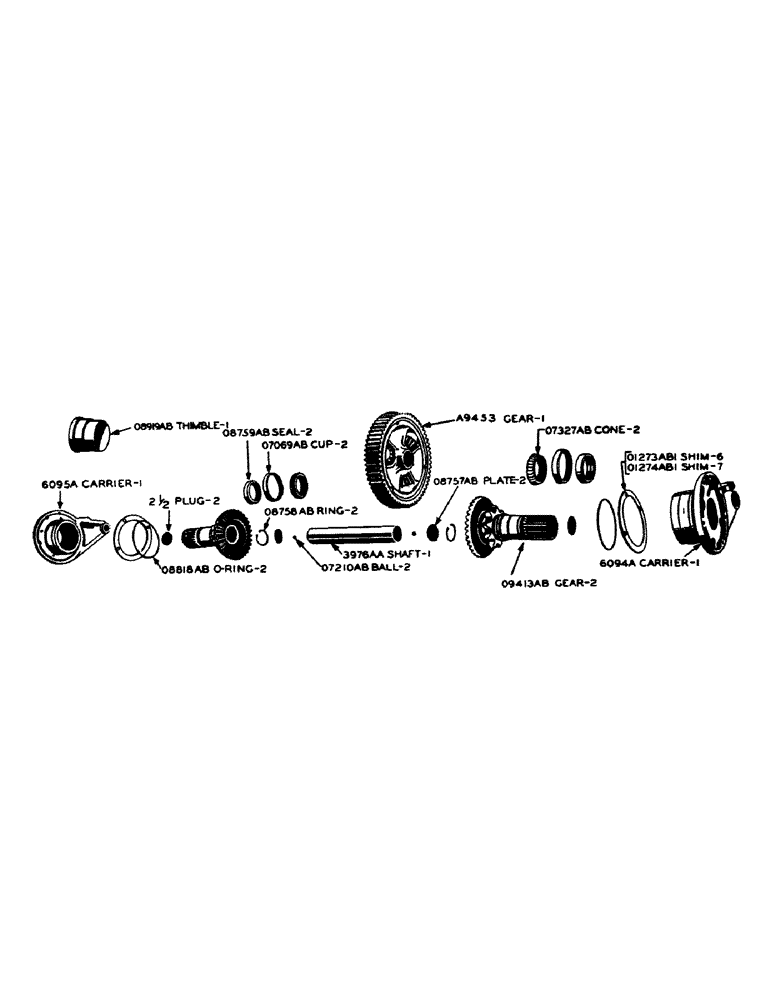

Запчасти Case IH 600-SERIES (079) - DIFFERENTIAL SHAFT (06) - POWER TRAIN

A9451

WHEEL - differential center (Use A9453)

1шт.

A9453

GEAR - differential ring assembly (Consists of: 1 - center wheel, 1 - ring gear, 3 - pinion, 3 - pinion pins)

1шт.

6094A

CARRIER - differential bearing, R.H.

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

1/8" STR. LINCOLN FITTING NO. 5000

1шт.

6095A

CARRIER - differential bearing, L.H.

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

O1273AB1

SHIM - differential shaft bearing carrier .014" thick

5шт.

O1274AB1

SHIM - differential shaft bearing carrier .005" thick

5шт.

O7069AB

X

CUP - (Timken #27620) differential bearing

2шт.

O7210AB

X

BALL - differential shaft

2шт.

O7327AB

X

CONE - (Timken #27690) differential bearing

2шт.

O8568AB

X

WASHER - differential carrier anchor shim

2ARшт.

O8757AB

X

PLATE - differential shaft bearing

2шт.

O8758AB

X

RING - differential shaft bearing plate retaining

2шт.

O8759AB

X

OIL SEAL - differential bearing tandem

2шт.

O8818AB

X

"O" RING - differential bearing carrier

2шт.

O8918AB

THIMBLE - for installing O8759AB oil seal on O9413AB differential gear and sprocket

1шт.

O9413AB

GEAR - differential, with 8 tooth sprocket (For 2" pitch roller chain)

2шт.

2-1/2" WELCH PLUG

2шт.

3976AA

SHAFT - differential, with balls

1шт.
