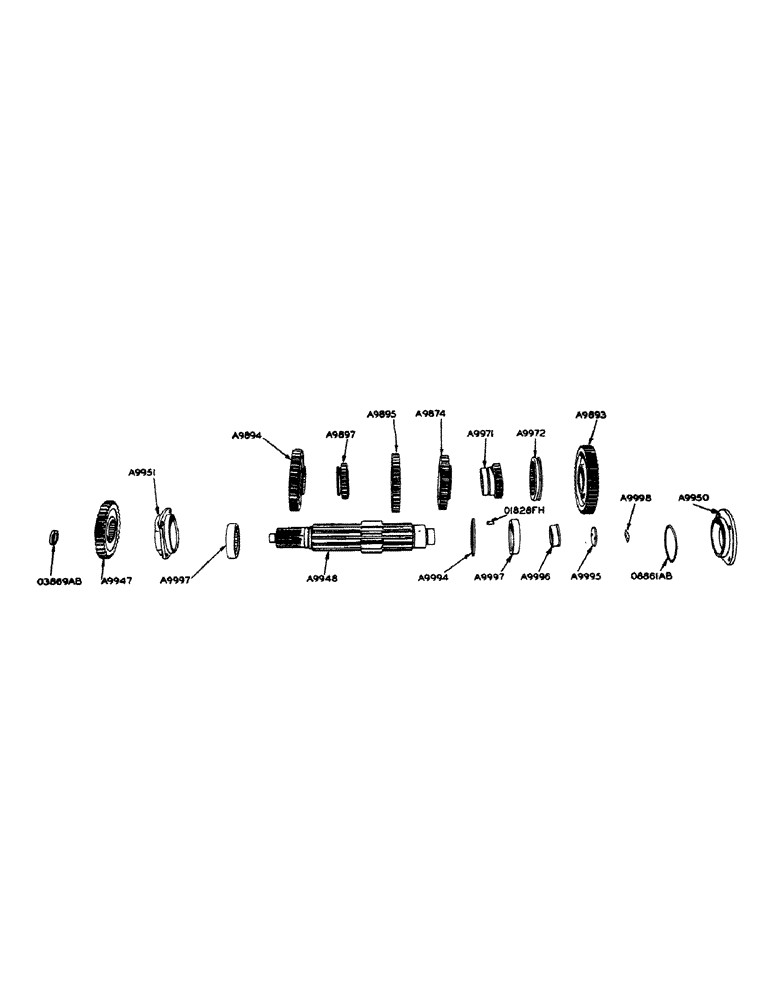

Запчасти Case IH 600-SERIES (078) - SLIDING GEAR SHAFT (06) - POWER TRAIN

A9874

GEAR - fourth speed sliding w/bushing

1шт.

A9893

GEAR-SET

GEAR - 1st speed w/bushing

1шт.

A9894

GEAR - second speed sliding (42T-19T)

1шт.

A9895

GEAR - third speed sliding (39T-22T)

1шт.

A9897

GEAR - sixth speed sliding (38T-23T)

1шт.

A9947

GEAR - fifth speed sliding (33T-28T)

1шт.

A9948

SHAFT - sliding gear

1шт.

A9950

CARRIER - sliding gear shaft bearing, R.H.

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

A9951

CARRIER - sliding gear shaft bearing, L.H.

1шт.

1/2" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

A9971

COLLAR - fourth speed bearing clutch

1шт.

A9972

SLEEVE - 1st and 4th gear

1шт.

A9994

WASHER

- 1st speed gear retaining

1шт.

A9995

SPARE PART

WASHER - sliding gear shaft bearing retaining

1шт.

A9996

RACE - (Hyatt #R1310) inner, sliding gear shaft bearing

1шт.

A9997

BALL BEARING

BEARING - (Hyatt #1310YS) sliding gear shaft

2шт.

A9998

PLATE - locking, sliding gear shaft bearing

1шт.

3/8" X 1-1/4" N.F. HEX. HD. CAP SCREW W/LOCKWASHER

10шт.

O3869AB

X

OIL SEAL - sliding gear shaft

1шт.

O8861AB

X

"O" RING - sliding gear shaft bearing carrier

1шт.

O1828FH

X

ROLL PIN - (3/16" x 3/4") first speed gear retaining washer

1шт.
