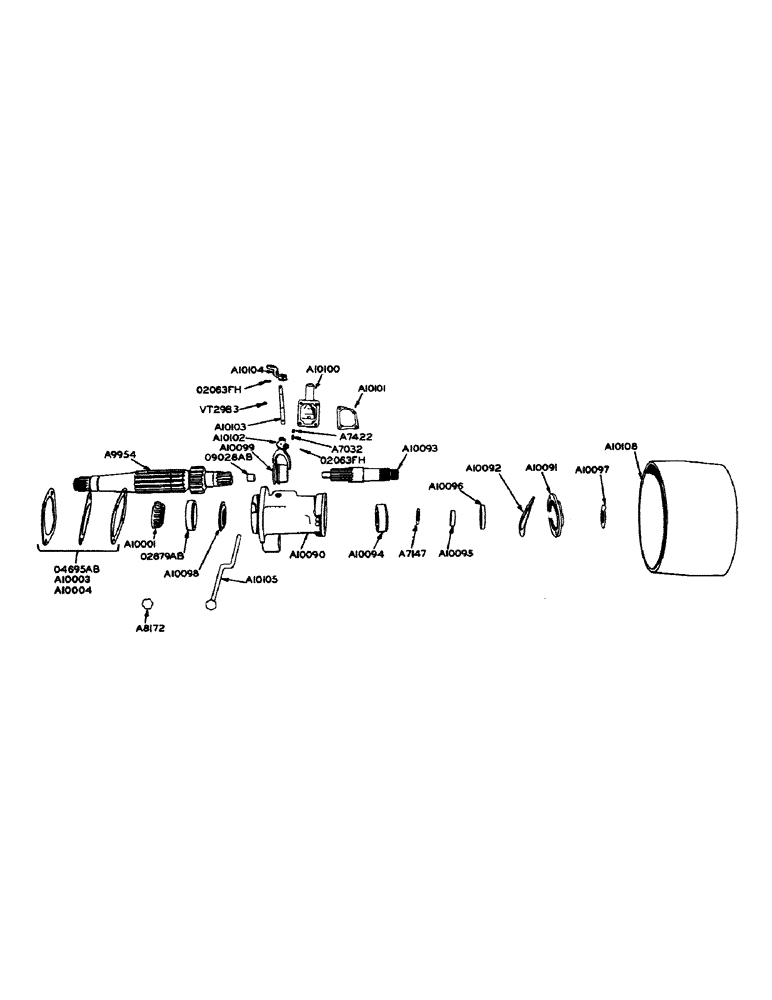

Запчасти Case IH 600-SERIES (077) - DECLUTCHABLE BELT PULLEY (06) - POWER TRAIN

A7032

SPRING

- belt pulley clutch detent plunger

1шт.

A7147

SNAP RING,#177, Ext

Ring, Snap, , belt pulley drive shaft bearing #177, Ext

1шт.

A7422

PLUNGER - belt pulley clutch detent plunger

1шт.

A8172

KNOB - belt pulley clutch control rod

1шт.

1/4" #1214-00 SHAKEPROOF INTERNAL TOOTH LOCKWASHER

1шт.

A9954

SHAFT

- belt pulley

1шт.

A10001

ROLLER BEARING,2.0625" ID x 1.193"

CONE - (Timken #3767) belt pulley shaft bearing

1шт.

A10003

SHIM - belt pulley shaft bearing carrier R.H. and L.H. (.005")

4ARшт.

A10004

SHIM - belt pulley shaft bearing carrier R.H. and L.H. (.015")

7ARшт.

A10090

HOUSING - belt pulley drive

1шт.

1/2" SQ. HD. PIPE PLUG

2шт.

A10091

CAP - belt pulley drive housing end

1шт.

3/8" X 1-1/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

A10092

GASKET - belt pulley drive housing end cap

1шт.

A10093

SHAFT - belt pulley drive

1шт.

1-3/8" - 12 hex. nut

1шт.

A10094

BEARING - (ND45509) belt pulley drive shaft

1шт.

A10095

SLEEVE - belt pulley drive shaft

1шт.

A10096

SEAL

OIL SEAL - belt pulley drive shaft

1шт.

A10097

LOCKWASHER - belt pulley drive shaft nut

1шт.

A10098

PLATE - belt pulley drive housing oil baffle

1шт.

A10099

SLEEVE - belt pulley clutch sliding

1шт.

A10100

HOUSING - belt pulley clutch

1шт.

3/8" X 1-1/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

A10101

GASKET - belt pulley clutch housing

1шт.

A10102

FORK - belt pulley clutch

1шт.

A10103

SHAFT - belt pulley clutch fork

1шт.

A10104

LEVER - belt pulley clutch

1шт.

A10105

ROD - belt pulley clutch control

1шт.

1/8" X 1" COTTER PIN

1шт.

A10106

SUPPORT - belt pulley clutch rod and throttle rod

1шт.

A10108

CHAIN

PULLEY - belt

1шт.

O2879AB

X

CUP - (Timken #3720) belt pulley shaft bearing

1шт.

O4695AB

SHIM - belt pulley shaft bearing carrier, .003" thick

4шт.

O9028AB

X

BUSHING - belt pulley shaft

1шт.

O2063FH

X

ROLL PIN - (3/16" x 1/8") belt pulley clutch fork shaft

2шт.

VT2983

X

"O" RING - belt pulley clutch shaft fork

1шт.
