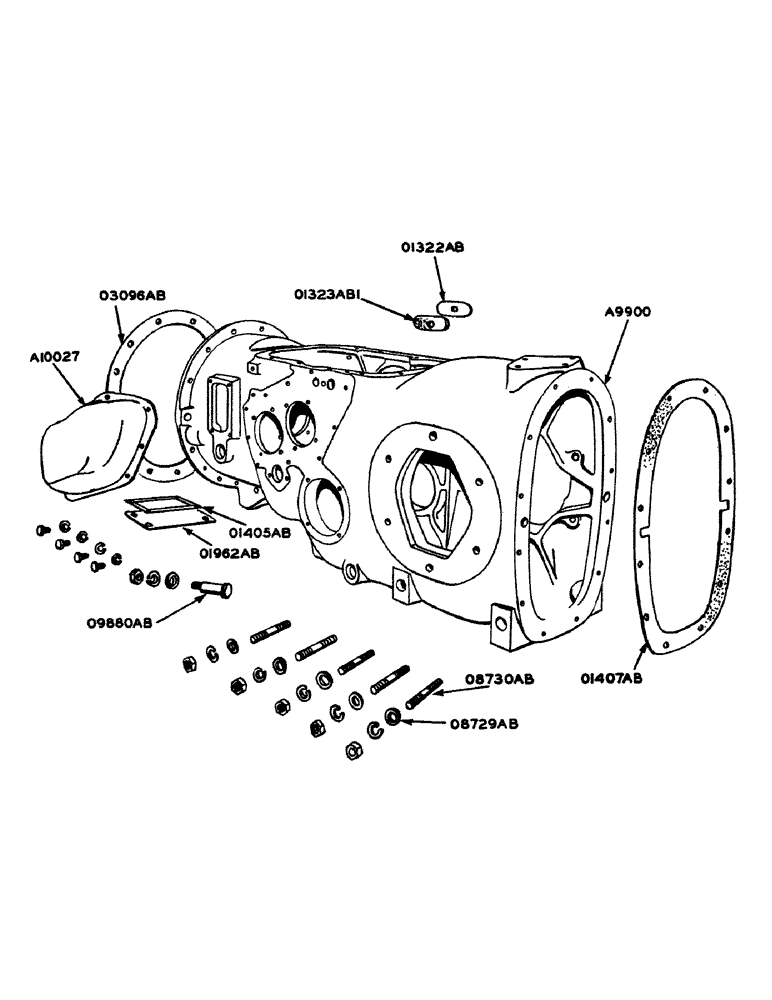

Запчасти Case IH 600-SERIES (075) - TRANSMISSION CASE (06) - POWER TRAIN

A9900

CASE - transmission

1шт.

3/8" COUNTERSUNK HEADLESS SET SCREW

1шт.

1/2" SQ. HD. PIPE PLUG

1шт.

1-1/4" SQ. HD. PIPE PLUG

1шт.

5/8" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER (Transmission case to cylinder block)

4шт.

5/8" X 2-1/4" N.C. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER (Transmission case to cylinder block)

3шт.

A10027

HOUSING - fifth speed gear

1шт.

3/8" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

8шт.

3/8" SQ. HD. PIPE PLUG

1шт.

1/2" SQ. HD. PIPE PLUG

1шт.

A10028

X

GASKET - fifth speed gear housing

1шт.

A10029

STUD - fifth speed gear housing

1шт.

3/8" N.F. HEX. NUT AND LOCKWASHER

2шт.

O1322AB

PLATE - shifter shaft end

2шт.

O1323AB1

X

GASKET - shifter shaft end plate

2шт.

O1405AB

X

GASKET - clutch hand hole cover

2шт.

O1407AB

X

GASKET - transmission case rear cover

1шт.

O1962AB

COVER - clutch hand hole

2шт.

1/2" X 3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

8шт.

O3096AB

X

GASKET - engine to transmission case

1шт.

O8729AB

X

WASHER - rear axle housing stud

10шт.

O8730AB

STUD - rear axle housing (3/4" x 3-3/8" long)

8шт.

O9880AB

BOLT - transmission and cylinder block flange

2шт.
