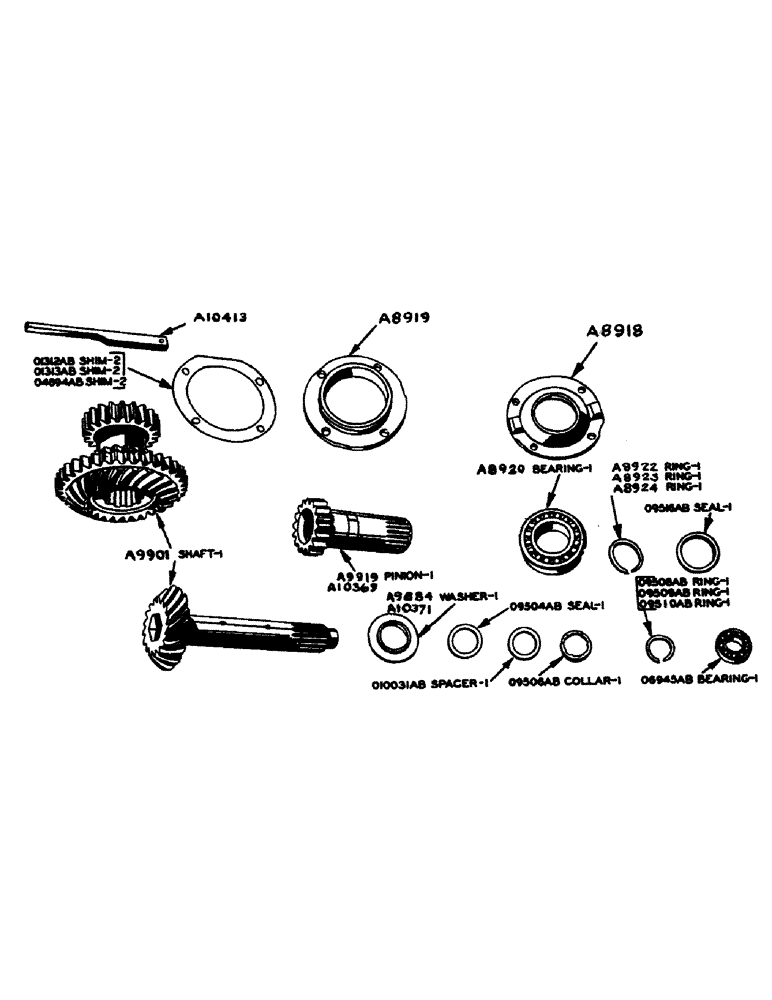

Запчасти Case IH 600-SERIES (072) - CLUTCH SHAFT (06) - POWER TRAIN

A8918

CARRIER - clutch shaft bearing, front

1шт.

A8919

CARRIER - clutch shaft bearing, rear

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

A8920

BALL BEARING,2.5591" ID x 4.7244" OD x 1.5"

BEARING - (N.D. #45213) clutch shaft, rear end

1шт.

A8922

SNAP RING - clutch shaft bearing retaining, 1/2" thick

1шт.

A8923

SNAP RING - clutch shaft bearing retaining, .1135 thick

1шт.

A8924

SNAP RING - clutch shaft bearing retaining, .115 thick

1шт.

A8926

OIL SEAL

- PTO pinion and sleeve

1шт.

A9884

X

WASHER - clutch shaft and PTO pinion thrust (For LP-Gas tractors) See A10371

1шт.

A9901

SHAFT - clutch, with pinion and transmission bevel gear (See note)

1шт.

A9919

PINION - PTO drive and sleeve, w/bushings (For LP-Gas tractors) See A10369

1шт.

A10369

PINION - PTO drive and sleeve, with bushings (For diesel tractors) See A9919

1шт.

A10371

X

WASHER - clutch shaft and PTO pinion thrust (For diesel tractors) See A9884

1шт.

A10413

GAUGE - for setting spiral bevel pinion

1шт.

O1312AB

SHIM - clutch shaft bearing carrier, .012" gauge

4шт.

O1313AB

SHIM - clutch shaft bearing carrier, .005" thick

3шт.

O4694AB

SHIM - clutch shaft bearing carrier, .003" thick

2шт.

O6945AB

X

BEARING - (N.D. #8506) clutch shaft pilot, flywheel end

1шт.

O9504AB

X

OIL SEAL - clutch shaft

2шт.

O9506AB

X

COLLAR - clutch shaft thrust

1шт.

O9508AB

SNAP RING - clutch shaft, .0835" thick

1шт.

A27758

SNAP RING

- clutch shaft (.0805" thk)

1шт.

O9510AB

X

SNAP RING - clutch shaft, .0765" thick

1шт.
