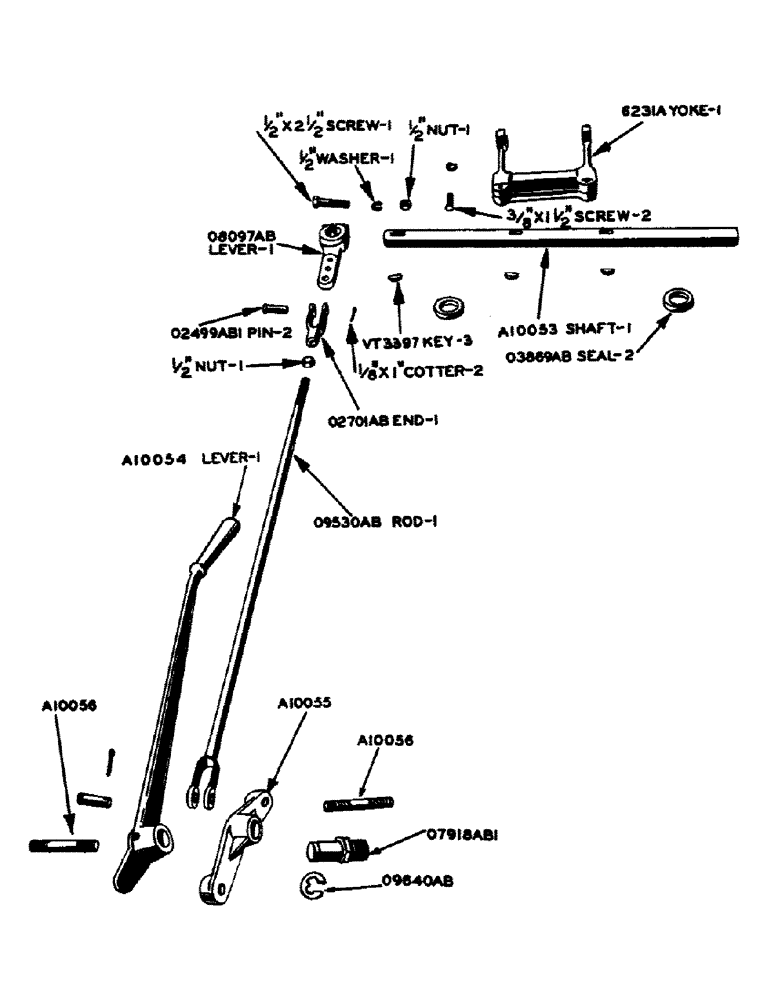

Запчасти Case IH 600-SERIES (071) - CLUTCH THROWOUT PARTS (06) - POWER TRAIN

A10053

SHAFT - clutch throwout

1шт.

A10054

LEVER - clutch throwout hand

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

A10055

SUPPORT - clutch throwout hand lever

1шт.

A10056

STUD - clutch throwout hand lever support

2шт.

A10655

ROD - clutch throwout (Prior to serial #8102405) See O9530AB

1шт.

6231A

YOKE - clutch throwout

1шт.

3/8" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

O2499AB1

X

PIN - yoke end, clutch throwout rod

2шт.

1/8" X 1" COTTER PIN

2шт.

O2701AB

X

END - yoke, for O9530AB clutch throwout rod

1шт.

O3869AB

X

OIL SEAL - clutch throwout shaft

2шт.

O7918AB1

STUD - clutch throwout lever

1шт.

O8097AB

LEVER - clutch throwout shaft

1шт.

1/2" X 2-1/2" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

O9530AB

ROD - clutch throwout (Serial #8102405 and after) See A10655

1шт.

1/2" N.F. HEX. NUT

1шт.

O9640AB

X

"E" RING - retaining, clutch throwout lever stud

1шт.

VT3397

KEY - Woodruff, clutch throwout shaft

3шт.
