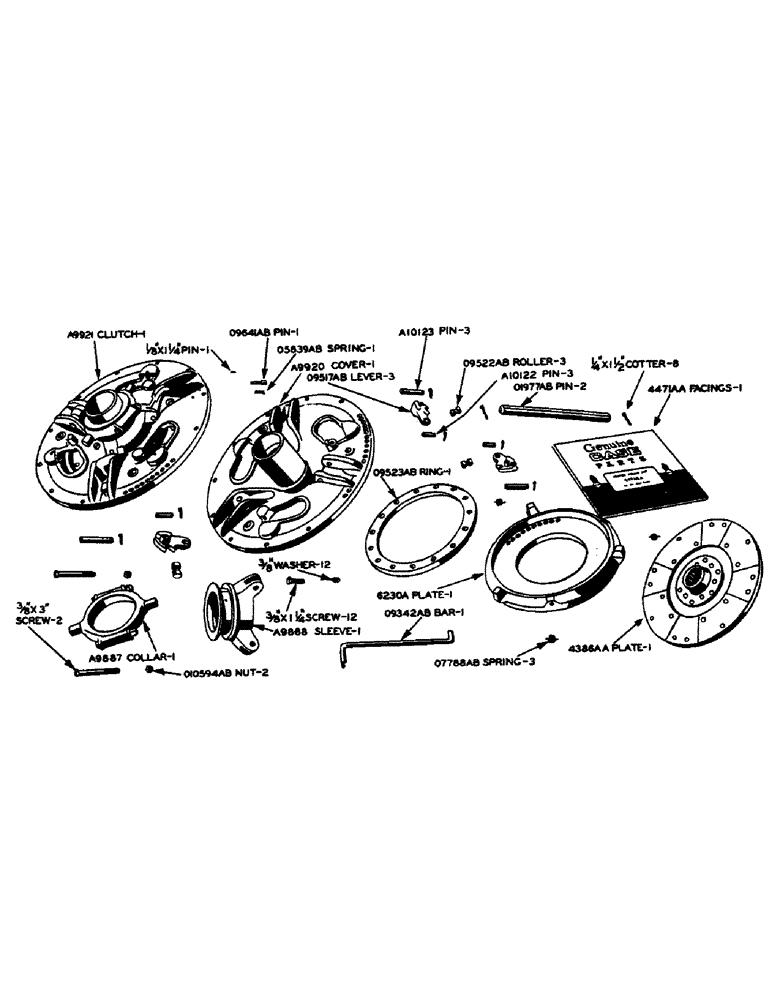

Запчасти Case IH 600-SERIES (070) - ENGINE HAND CLUTCH (06) - POWER TRAIN

A8364

SHIM - clutch sliding sleeve collar

2шт.

A9886

COLLAR - clutch sliding sleeve (Use A9887)

1шт.

A9887

COLLAR

- clutch sliding sleeve (Consists of: 2 - A9886, 2 - A8364 shim, 2-3/8" x 3" N.F. hex. hd. cap screw w/2 - O10594AB nuts)

1шт.

A9888

SLEEVE

- clutch sliding

1шт.

A9920

PLATE - clutch cover

1шт.

A9921

CLUTCH COMPLETE - less driving plate

1шт.

A10122

PIN - clutch lever guide

3шт.

1/8" X 3/4" COTTER PIN

3шт.

A10123

PIN - clutch lever pivot

3шт.

1/8" X 3/4" COTTER PIN

3шт.

6230A

PLATE - clutch pressure

1шт.

O1977AB

PIN - spreader, for spreading engine and transmission. See 61AA

2шт.

O5839AB

X

SPRING - clutch adjusting lock pin

1шт.

O7788AB

SPRING

- clutch release

3шт.

O9342AB

BAR - clutch adjusting

1шт.

O9517AB

LEVER - clutch

3шт.

O9522AB

ROLLER - clutch lever

3шт.

O9523AB

RING - clutch adjusting

1шт.

O9641AB

PIN - clutch adjusting ring lock

1шт.

1/8" X 1-1/4" TYPE 5, groove pin

1шт.

O10594AB

X

NUT - 3/8" elastic stop, for cap screw in A9887 collar

2шт.

61AA

PINS - set of spreaders, for spreading engine and transmission. (Consists of: 2 - O1977AB pins and 8 - 1/4" x 1-1/2" cotter pins)

1шт.

4386AA

X

PLATE - clutch driving, with facings

1шт.

NOTE:43866AA HAS 16 SPLINES AND O.D. IS 12 3/8"

1шт.

4471AA

KIT

FACINGS - set of clutch, with rivets for 4386AA clutch driving plate (Consists of: 2 - facings and 20 - 3/16" x 15/32" long, brass tubular rivets)

1шт.
