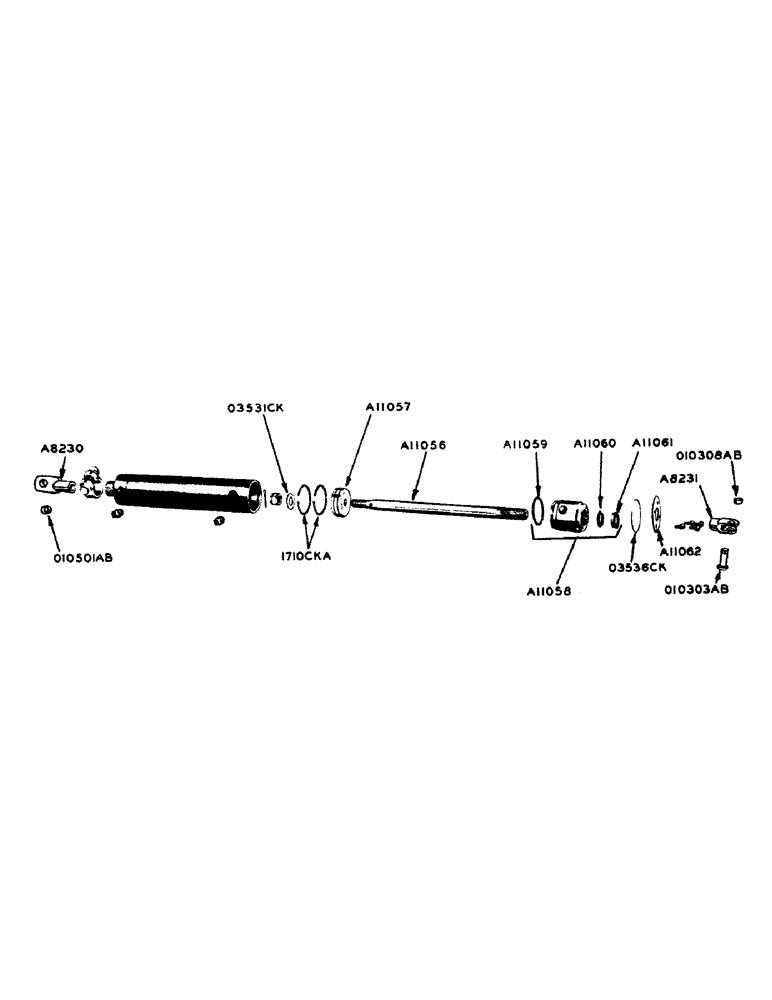

Запчасти Case IH 600-SERIES (108) - HYDRAULIC POWER STEERING CYLINDER (05) - STEERING

A8227

CYLINDER ASSEMBLY - power steering, consists: P/N A11056, P/N A11057, P/N A11058, P/N A11059, P/N A11060, P/N A11061, P/N A11062, P/N O3531CK, P/N O3536CK and P/N 1710CKA

1шт.

3/8" TUBE SIZE X 1/4" P.T. INVERTED FLARED TUBE 45 DEGREE MALE ELBOW

1шт.

3/8" TUBE SIZE X 1/4" P.T. INVERTED FLARED TUBE MALE ELBOW

1шт.

1/4" PIPE PLUG

2шт.

5/8" N.C. HEX. JAM NUT

2шт.

A8230

END - yoke, male, power steering cylinder w/bushing

1шт.

A8231

END - yoke, female, power steering cylinder

1шт.

A11056

ROD - piston

1шт.

NOTE: Bearing for power steering cylinder is furnished wih oil seal and "O" ring which consists of 1 - A11059 O ring, 1 - A11060 O ring, and 1 - A11061 oil seal.

1шт.

Part of Power Steering Cylinder Assembly P/N A8227

1шт.

1/2" - 20 N.F. hex. slotted nut

1шт.

3/32" X 1" COTTER PIN

1шт.

A11057

PISTON

1шт.

NOTE: Bearing for power steering cylinder is furnished wih oil seal and "O" ring which consists of 1 - A11059 O ring, 1 - A11060 O ring, and 1 - A11061 oil seal.

1шт.

Part of Power Steering Cylinder Assembly P/N A8227

1шт.

A11058

KIT - bearing and seal assembly

1шт.

NOTE: Bearing for power steering cylinder is furnished wih oil seal and "O" ring which consists of 1 - A11059 O ring, 1 - A11060 O ring, and 1 - A11061 oil seal.

1шт.

Part of Power Steering Cylinder Assembly P/N A8227

1шт.

A11059

O-RING

"O" RING - bearing and seal

1шт.

Part of Power Steering Cylinder Assembly P/N A8227

1шт.

A11060

O-RING

"O" RING - piston rod

1шт.

Part of Power Steering Cylinder Assembly P/N A8227

1шт.

A11061

SEAL

OIL SEAL - piston rod

1шт.

Part of Power Steering Cylinder Assembly P/N A8227

1шт.

A11062

PLATE - end

1шт.

Part of Power Steering Cylinder Assembly P/N A8227

1шт.

#10 - 24 x 1/2" rd. rec. hd. screw w/lockwasher

4шт.

O10303AB

X

PIN - for A8231 yoke end

1шт.

1/8" X 1-1/4" COTTER PIN

1шт.

O10308AB

X

BUSHING - for A8231 yoke and O10303AB pin

1шт.

O10501AB

X

BUSHING - for A8230 yoke end

1шт.

O3531CK

WASHER - piston rod

1шт.

Part of Power Steering Cylinder Assembly P/N A8227

1шт.

O3536CK

LOCK RING - bearing and seal

1шт.

Part of Power Steering Cylinder Assembly P/N A8227

1шт.

1710CKA

PACKAGE

RING - piston, (Set of 2)

1шт.

Part of Power Steering Cylinder Assembly P/N A8227

1шт.
