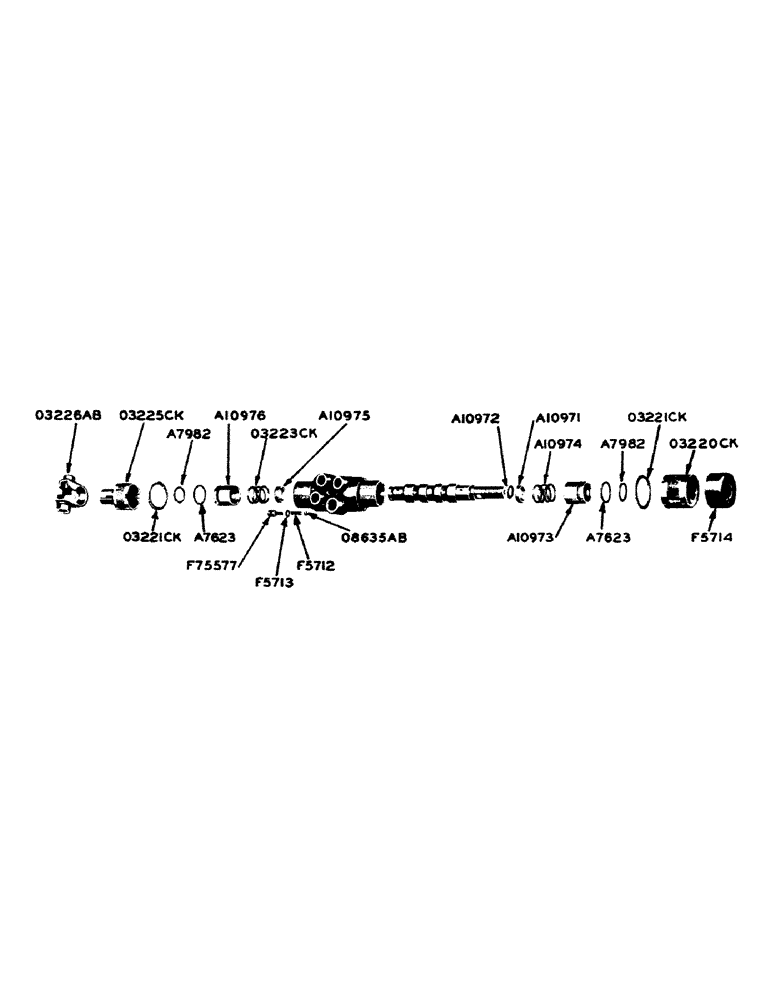

Запчасти Case IH 600-SERIES (107) - HYDRAULIC POWER STEERING PARTS FOR A8226 DRAG LINK VALVE (05) - STEERING

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - between gland and valve body

2шт.

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - between valve spool and gland

2шт.

A10971

RING - reaction, shaft end of clamp

1шт.

A10972

WASHER - spacer, for A10971 reaction ring

1шт.

A10973

GLAND - shaft end of valve

1шт.

A10974

SPRING - shaft end of valve

1шт.

A10975

RING

- reaction, clamp end of valve

1шт.

A10976

GLAND - clamp end of valve

1шт.

F5712

SPRING

- relief valve

1шт.

F5713

"O" RING - relief valve

1шт.

F5714

SEAL - dust, end cover

1шт.

F75577

PLUG

- relief valve

1шт.

O8635AB

X

BALL - (1/4") relief valve

1шт.

O3220CK

COVER - end

1шт.

O3221CK

LOCK RING - end covers

2шт.

O3223CK

SPRING - clamp end of valve

1шт.

O3225CK

COVER - end, w/reducer

1шт.

O3226CK

CLAMP

1шт.
