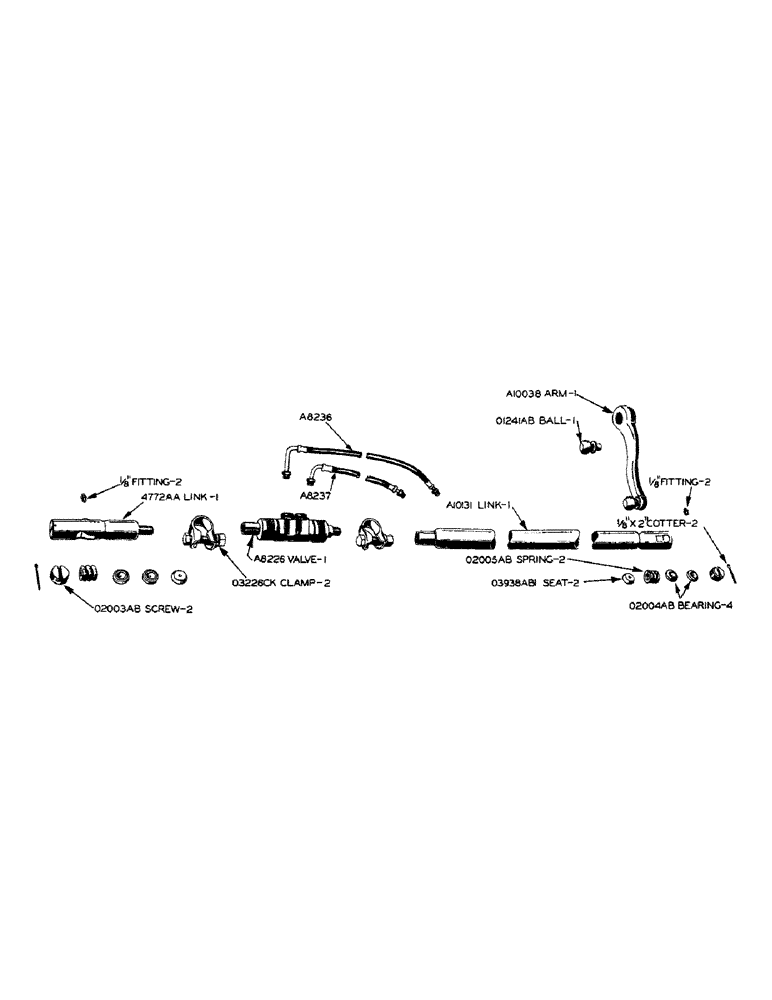

Запчасти Case IH 600-SERIES (106) - HYDRAULIC POWER STEERING DRAG LINK (05) - STEERING

A8226

VALVE ASSEMBLY - power steering drag link

1шт.

A8236

HOSE - power steering valve to cylinder, front (3/8" I.D. x 15-1/2" long)

1шт.

A8237

HOSE - power steering valve to cylinder, rear (3/8" I.D. x 16" long)

1шт.

A10038

ARM - steering drop w/ball

1шт.

A10131

LINK - power steering drag, rear

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

O1241AB

BALL - steering drop arm

1шт.

O2003AB

X

SCREW - adjusting, for A10131 and 4772AA front or rear drag link end

2шт.

1/8" X 2" COTTER PIN

2шт.

O2004AB

BEARING - for A10131 or 4772AA front or rear drag link end

4шт.

O2005AB

X

SPRING - for A10131 or 4772AA front of rear drap link end

2шт.

O3938AB1

X

SEAT AND SPACER - for A10131 or 4772AA front or rear drag link end

2шт.

4772AA

LINK - power steering drag, front

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.
