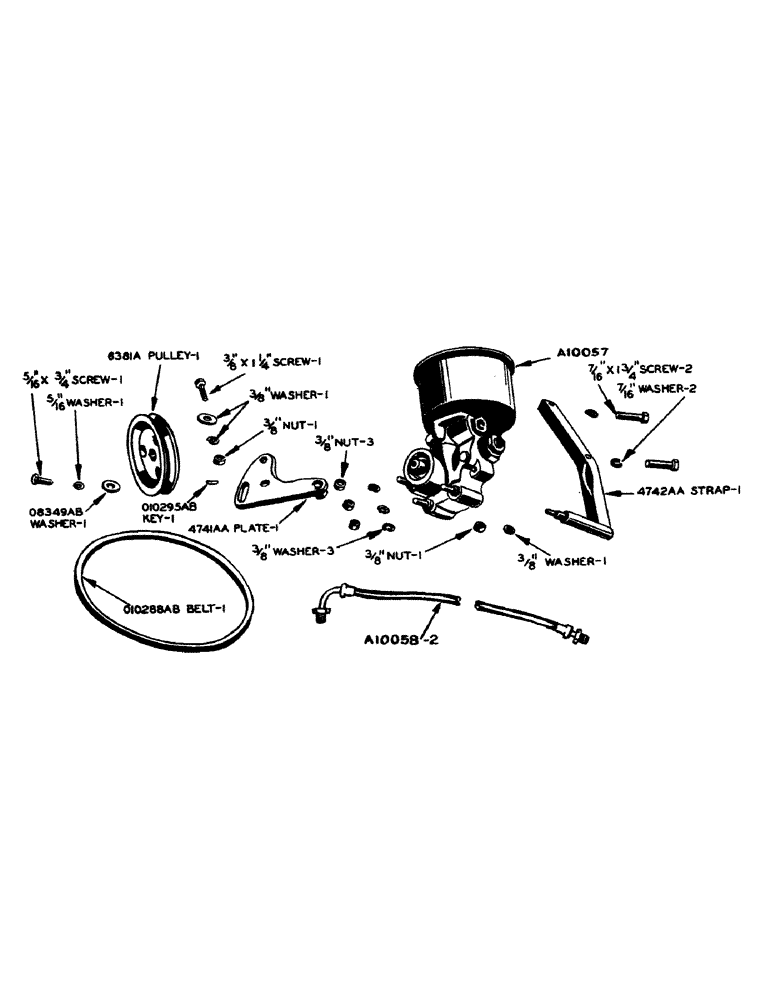

Запчасти Case IH 600-SERIES (104) - HYDRAULIC POWER STEERING PUMP (05) - STEERING

A10057

PUMP - power steering

1шт.

A10058

HOSE - power steering pump to valve (3/8" inside dia. x 30-1/4" long)

2шт.

6381A

PULLEY - power steering pump

1шт.

5/16" X 3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

1шт.

O8349AB

X

WASHER - holds 6381A pulley to A10057 pump

1шт.

O10288AB

X

"V" BELT - power steering pump drive

1шт.

O10295AB

X

KEY - power steering pump pulley

1шт.

4741AA

PLATE - power steering pump mounting

1шт.

3/8" N.F. HEX. NUT W/LOCKWASHER

1шт.

3/8" X 1-1/4" N.F. HEX. HD. CAP SCREW W/NUT, LOCKWASHER AND PLAIN WASHER

1шт.

4742AA

STRAP - with pivot pin, power steering pump mounting

1шт.

3/8" N.F. HEX. NUT W/LOCKWASHER

1шт.
