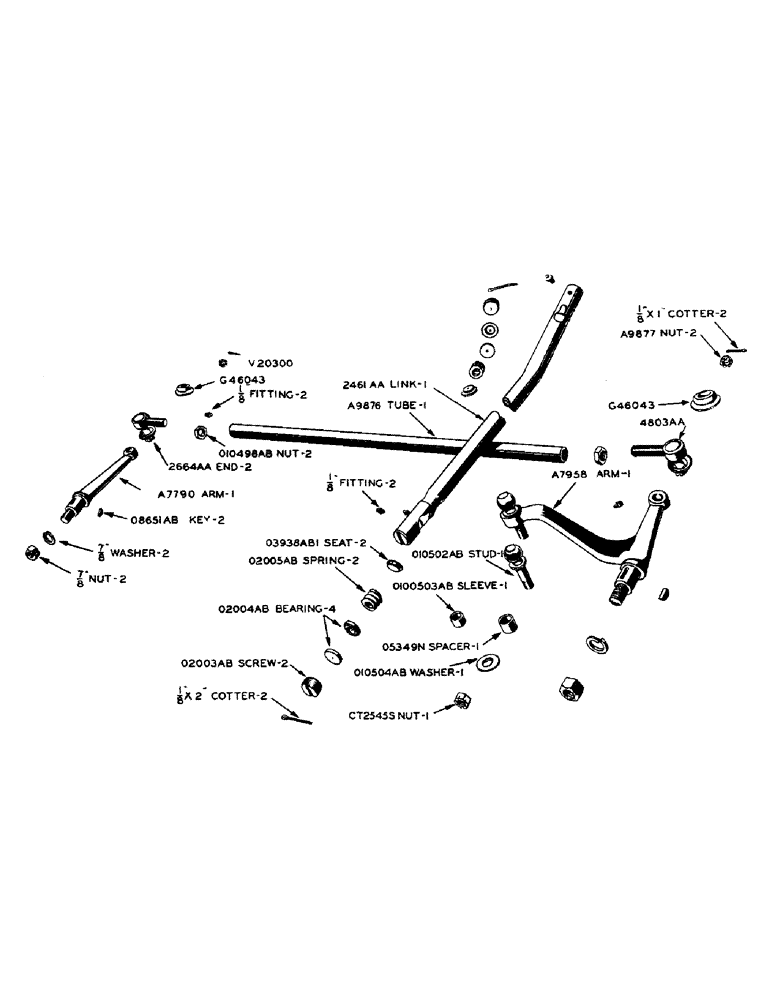

Запчасти Case IH 600-SERIES (103) - STEERING ARMS AND TIE ROD (05) - STEERING

A7790

ARM

- steering spindle, R.H.

1шт.

3/4" N.F. HEX. NUT

1шт.

A7958

ARM - steering spindle, L.H., with O10502AB ball stud

1шт.

A9876

TUBE - tie rod

1шт.

A9877

NUT

- L.H. thrd., for A4803AA front axle tie rod

1шт.

G46043

COVER

- dust (Mfg. #14DC54) tie rod end

2шт.

O8651AB

X

KEY - Woodruff, steering spindle arms

2шт.

O10498AB

NUT - tie rod

2шт.

O10502AB

BALL STUD - for A7958 L.H. steering spindle arm

1шт.

O10503AB

X

SLEEVE - for O10502AB ball stud, when using power steering

1шт.

O10504AB

X

WASHER - for O10502AB ball stud, when using power steering

1шт.

CT2545S

X

NUT - Marsden lock, for O10502AB ball stud

1шт.

O5349N

SPACER - for O10502AB ball stud (Not used with power steering)

1шт.

V20300

OPERATOR MANUAL

NUT - for 2664AA tie rod end

1шт.

1/8" X 1" COTTER PIN

1шт.

2664AA

X

END - tie rod, R.H. thrd.

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

4803AA

X

END - tie rod, L.H. thrd.

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

O2003AB

X

SCREW - adjusting, for drag link, steering, 2461AA

2шт.

1/8" X 2" COTTER PIN, 2461AA steering drag link

2шт.

O2004AB

BEARING - for drag link, 2461AA steering

4шт.

O2005AB

X

SPRING - drag link, 2461AA steering

2шт.

O3938AB1

X

SEAT AND SPACER - for drag link, 2461AA steering

2шт.

2461AA

LINK - steering drag, 2461AA link

1шт.
