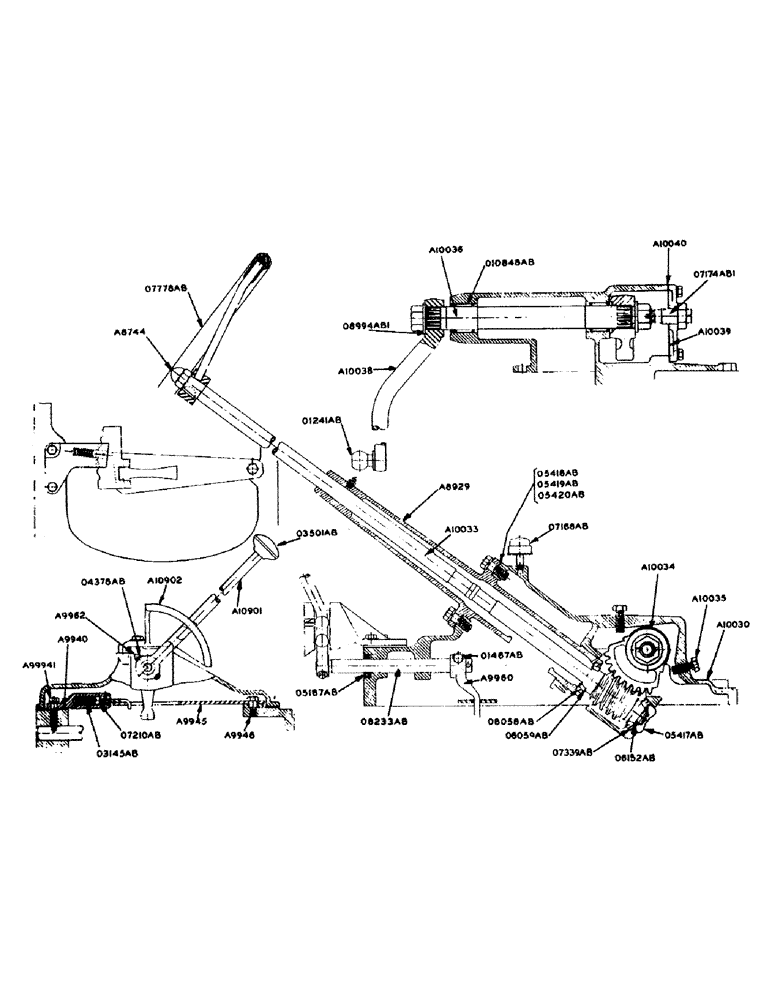

Запчасти Case IH 600-SERIES (102) - STEERING GEAR (05) - STEERING

A8744

NUT

- steering wheel shaft

1шт.

A8929

COLUMN - steering shaft

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

A10030

COVER - transmission case top

1шт.

A10033

SHAFT - steering wheel, with worm

1шт.

A10034

WHEEL - steering worm

1шт.

A10035

SCREW - adjusting, steering worm wheel

1шт.

A10036

SHAFT - steering drop arm

1шт.

1/8" X 1-1/4" COTTER PIN

2шт.

1" N.F. HEX. JAM NUT

1шт.

1" - 14 SLOTTED NUT

1шт.

1" - 14 MARSDEN LOCKNUT (Light, jam) nut

1шт.

A10038

ARM - steering drop, with ball

1шт.

A10039

COVER - steering gear, on transmission case top cover

1шт.

A10040

GASKET - steering gear cover

1шт.

O1241AB

BALL - steering drop arm

1шт.

O1532AB

WASHER - steering shaft, upper end

1шт.

O5417AB

PLUG - end, steering column

1шт.

O5418AB

SHIM - steering column, .033" thick

4шт.

O5419AB

SHIM - steering column, .005" thick

3шт.

O5420AB

SHIM - steering column, no. 28 gauge

4шт.

O6152AB

SNAP RING - steering worm

1шт.

O7174AB1

SCREW - adjusting, steering drop arm shaft

1шт.

O7339AB

WASHER - steering worm bearing retainer

1шт.

O7778AB

WHEEL - steering (20")

1шт.

O8058AB

X

CUP - (Timken no. 24) steering worm bearing

2шт.

O8059AB

X

CONE - (Timken no. 21BC) steering worm bearing

2шт.

O8994AB1

X

OIL SEAL - steering arm shaft

1шт.

O10848AB

X

BEARING - needle (Torrington #B2420-OH) steering arm shaft

2шт.

VT3397

KEY - Woodruff, steering wheel shaft w/worm

1шт.
