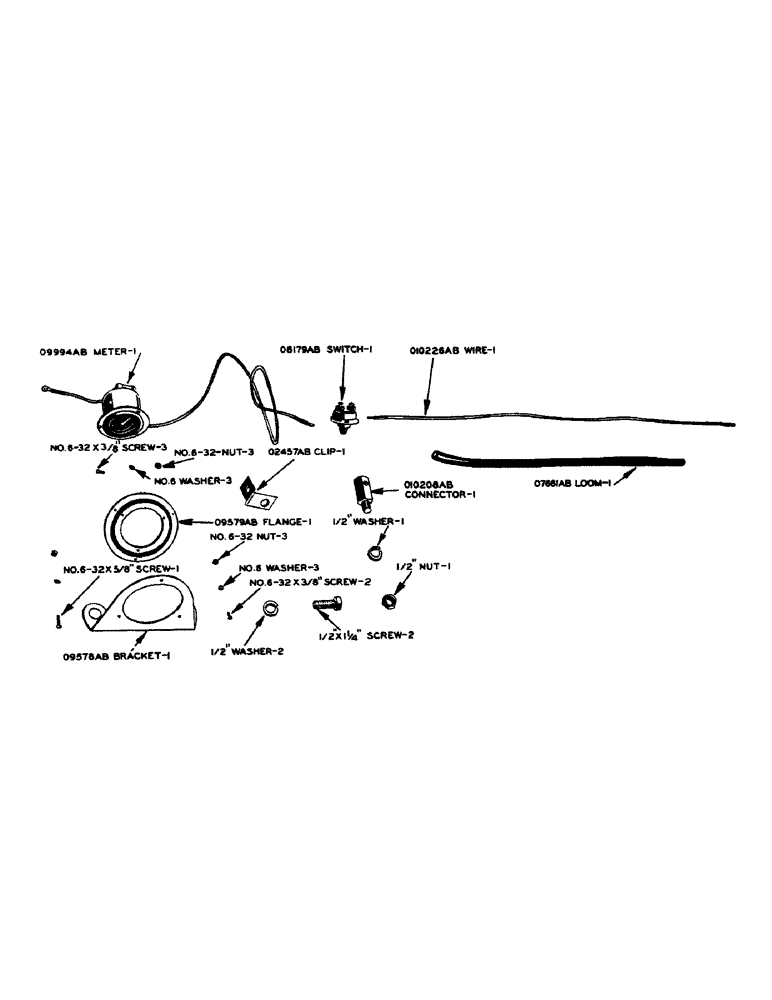

Запчасти Case IH 600-SERIES (136) - ENGINE HOUR METER (04) - ELECTRICAL SYSTEMS

O2457AB

CLIP - hour meter wire, on transmission case (For diesel tractor only)

1шт.

O7661AB

LOOM - hour meter switch wire

1шт.

O8179AB

X

SWITCH - hour meter pressure

1шт.

O9578AB

BRACKET - engine hour meter mounting

1шт.

#6-32 X 3/8" RD. HD. MACH. SCREW W/LOCKWASHER

2шт.

#6-32 X 5/8" RD. HD. MACH. SCREW W/LOCKWASHER

1шт.

O9579AB

X

FLANGE - engine hour meter resilient mounting rubber

1шт.

O9994AB

X

METER - engine hour, 12 volts. Purchased from John W. Hobbs Corp., Springfield, Ill.

1шт.

#6 - 32 X 3/8" RD. HD. MACH. SCREW W/LOCKWASHER

3шт.

O10208AB

CONNECTOR - hour meter pressure switch

1шт.

1/2" N.F. HEX. JAM NUT

1шт.

O10226AB

WIRE - starter switch to hour meter switch

1шт.
