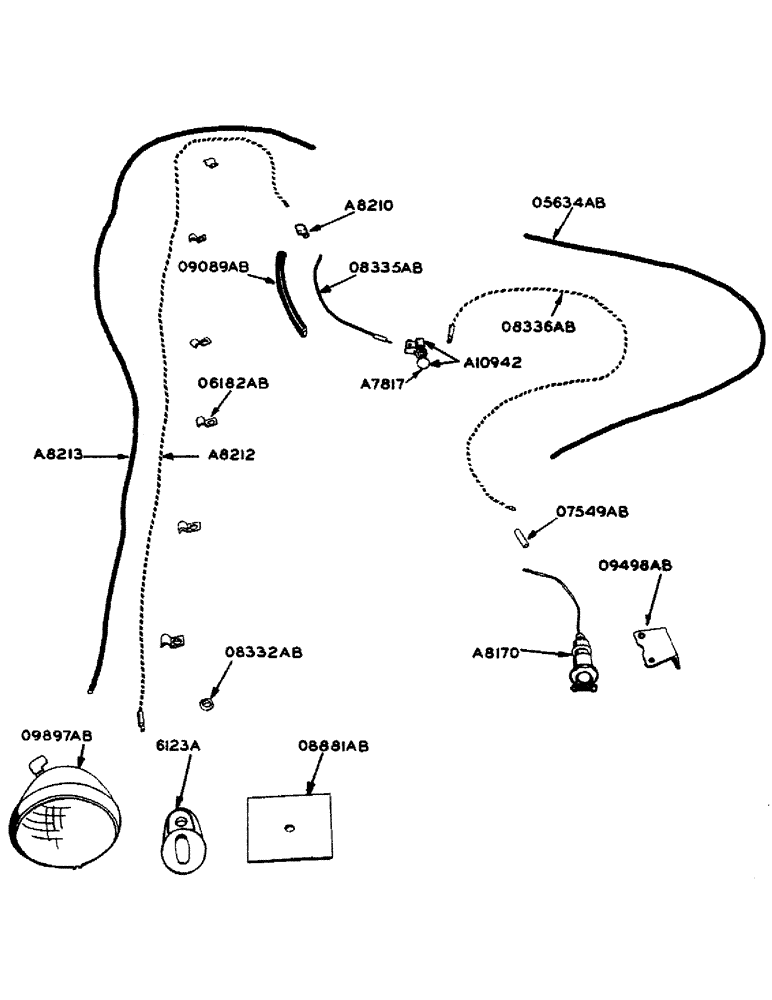

Запчасти Case IH 600-SERIES (057) - REAR TRACTOR LAMP AND OUTLET SOCKET (04) - ELECTRICAL SYSTEMS

A7817

KNOB

- light switch

1шт.

A8170

SOCKET

- electrical outlet

1шт.

#10 X 5/8" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

A8210

CONNECTOR, ELEC

CONNECTOR - three wire line

1шт.

A8212

WIRE - rear lamp to three wire line connector

1шт.

A8213

LOOM - rear lamp to three wire line connector

1шт.

A10942

KIT

SWITCH - light w/A7817 knob

1шт.

6123A

X

BRACKET - combination flood and tail lamp

1шт.

3/8" X 1-1/2" N.F. HEX. HD. CAP SCREW W/HEX. NUT AND LOCKWASHER

1шт.

O5634AB

LOOM - light switch to outlet socket

1шт.

O6182AB

CLIP - rear lamp wire

6шт.

1/4" X 1/2" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

5шт.

1/4" X 5/8" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.

O7532AB

CLIP - outlet socket wire, 1 on transmission top cover and 1 on hydraulic flange

2шт.

O7549AB

CONNECTOR - two wire line

1шт.

O8332AB

X

GROMMET - in fender for rear lamp wire (3/8" hole)

1шт.

O8335AB

X

WIRE - light switch to three wire line connector

1шт.

O8336AB

WIRE - light switch to two wire line connector

1шт.

O8881AB

REINFORCEMENT - fender lamp bracket

1шт.

O9089AB

LOOM - light switch to three wire line connector wire

1шт.

O9498AB

BRACKET - electrical outlet socket

1шт.

O9897AB

X

LAMP - combination flood and tail, 12 volt

1шт.
