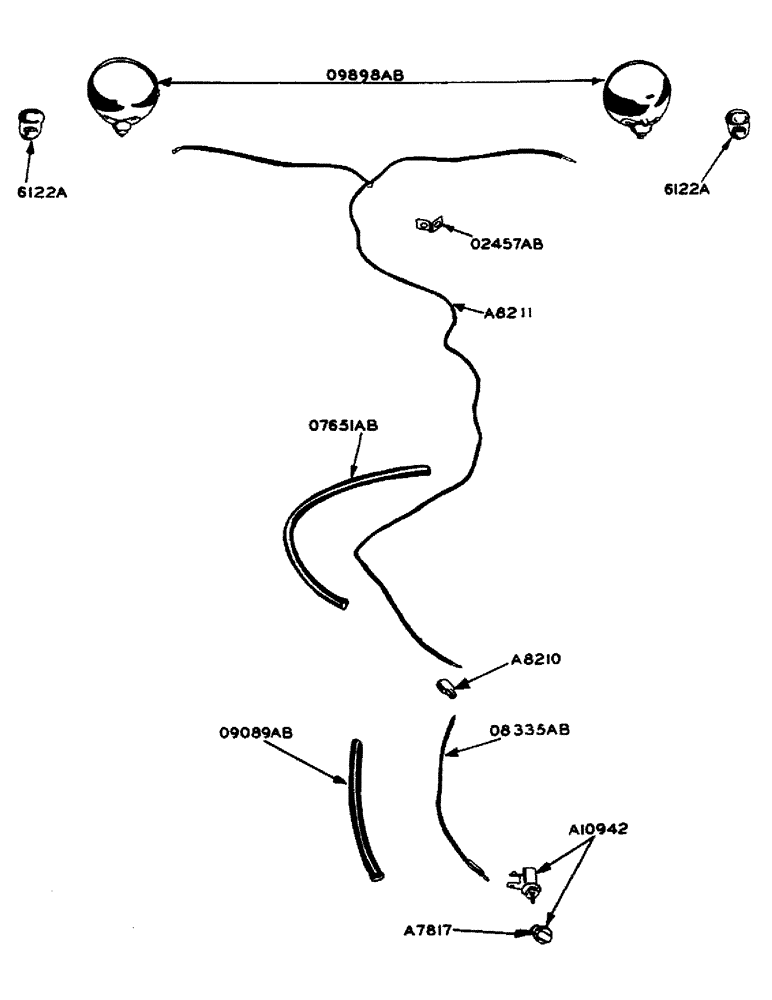

Запчасти Case IH 600-SERIES (056) - FRONT TRACTOR LAMP (04) - ELECTRICAL SYSTEMS

A7817

KNOB

- light switch

1шт.

A8210

CONNECTOR, ELEC

CONNECTOR - three wire line

1шт.

A8211

WIRE - head lamp

1шт.

A10942

KIT

SWITCH - light w/A7817 knob

1шт.

6122A

X

BRACKET - head lamp

2шт.

3/8" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

O2457AB

CLIP - headlamp wire, on thermostat housing

1шт.

O7651AB

LOOM - generator and headlamp wires, front

1шт.

O8335AB

X

WIRE - light switch to three wire line connector

1шт.

O9089AB

LOOM - light switch to three wire line connector wire

1шт.

O9898AB

X

LAMP - sealed unit tractor, 12 volt, side mounting

2шт.

4641AA

CONDUIT - fastens along cylinder block for headlight wire, generator wire and temperature gauge tube

1шт.

5/16" X 1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.
