(054) - SAFETY CUT-OUT PARTS FOR DIESEL TRACTORS

Запчасти Case IH 600-SERIES (054) - SAFETY CUT-OUT PARTS FOR DIESEL TRACTORS (04) - ELECTRICAL SYSTEMS

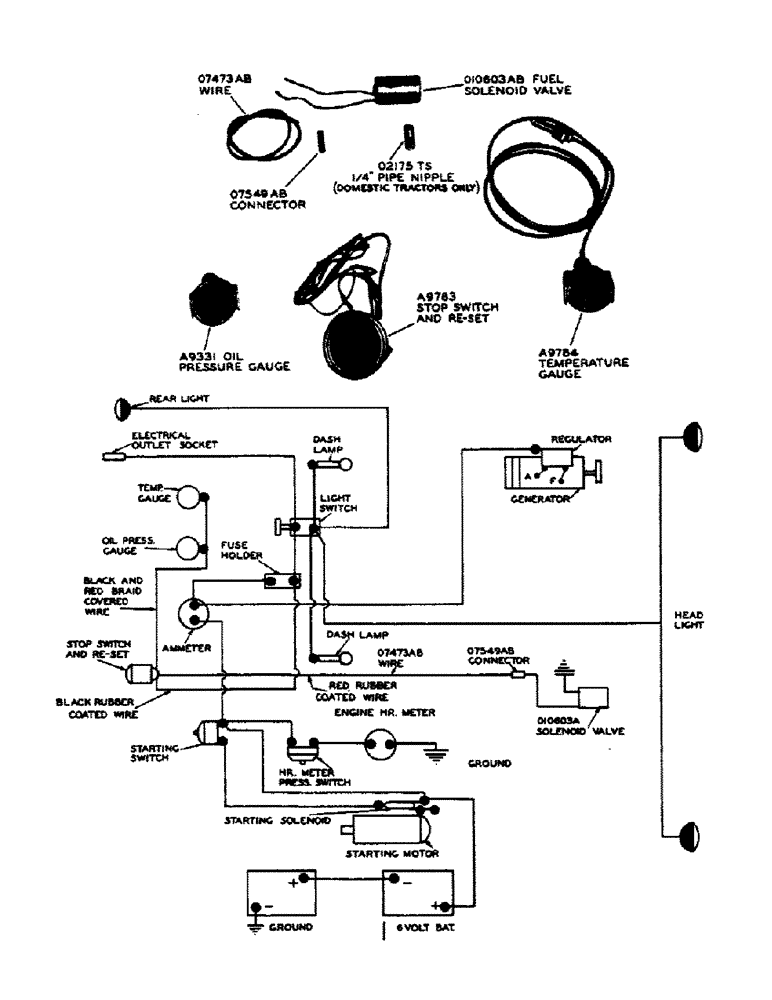

Схема запчастей Case IH 600-SERIES - (054) - SAFETY CUT-OUT PARTS FOR DIESEL TRACTORS (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A9331

GAUGE - oil pressure (Stewart-Warner)

1шт.

A9783

SWITCH - stop and reset

1шт.

A9784

GAUGE - temperature (Stewart-Warner)

1шт.

O7473AB

WIRE - two wire connector to stop and reset switch

1шт.

O7549AB

CONNECTOR - fuel solenoid valve and O7473AB wire

1шт.

O10603AB

VALVE - fuel solenoid

1шт.

O2175TS

NIPPLE - pipe (1/4") fuel solenoid valve

1шт.
