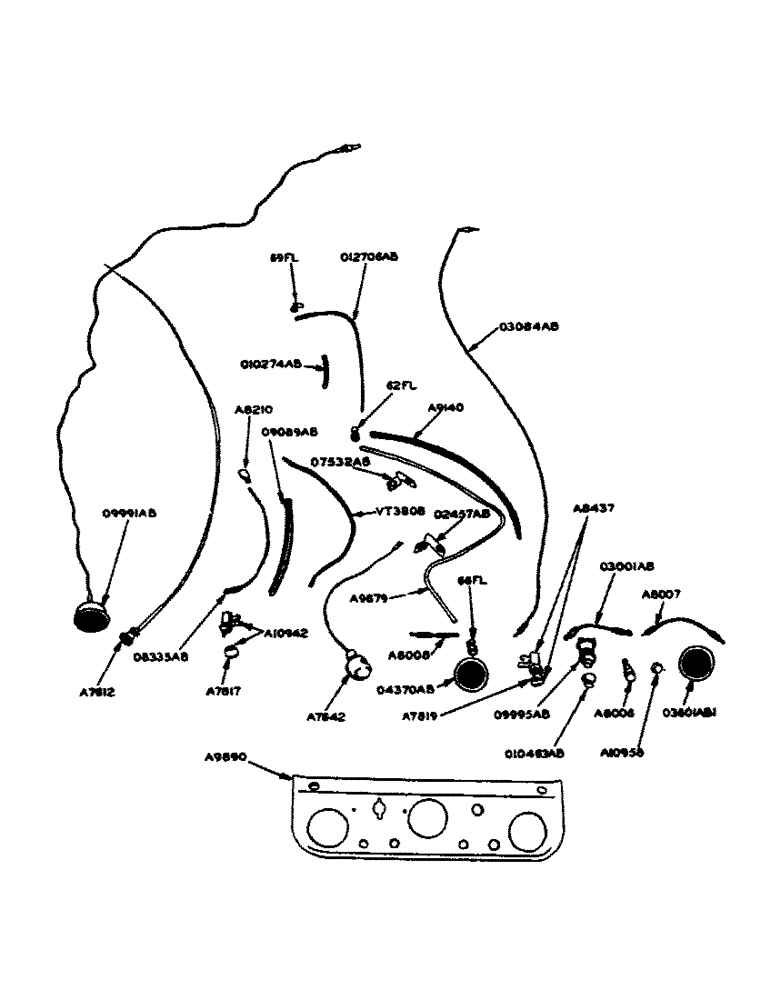

Запчасти Case IH 600-SERIES (053) - INSTRUMENT PANEL, LP-GAS (04) - ELECTRICAL SYSTEMS

A7612

CONTROL - flexible choke

1шт.

A7642

LAMP

- dash, instrument panel, 12-volt

1шт.

A7817

KNOB

- light switch

1шт.

A7819

KNOB

- ignition switch

1шт.

A8006

NOZZLE HOLDER

HOLDER - fuse w/A10958 cap

1шт.

20 AMP. FUSE

1шт.

A8007

WIRE - ammeter to fuse holder

1шт.

#4 X 1/4" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.

A8008

SWIVEL CONNECTION

WIRE - fuse holder to light switch

1шт.

#4 X 1/4" N.F. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.

A8210

CONNECTOR, ELEC

CONNECTOR - three wire line

1шт.

A8437

KIT

SWITCH - ignition w/A7819 knob

1шт.

A9140

LOOM - oil gauge rear tube

1шт.

A9879

TUBE - oil pressure gauge, rear

1шт.

#66FL 1/4" TUBE SIZE X 1/8" P.T. IMPERIAL FEMALE COUPLING (Connects, Serial Range: tube-gauge)

1шт.

#62FL 1/4" TUBE SIZE IMPERIAL FLEX UNION (Connects front and rear tube)

1шт.

A9890

PANEL - instrument

1шт.

A10942

KIT

SWITCH - light, w/A7817 knob

1шт.

A10958

CAP

- for A8006 fuse holder

1шт.

O2457AB

CLIP - oil gauge rear tube (On trans. case top cover)

1шт.

O3001AB

WIRE - starter, Serial Range: switch-ammeter

1шт.

O3084AB

WIRE - magneto to ignition switch

1шт.

O3601AB1

X

AMMETER

1шт.

O4370AB

X

GAUGE - oil pressure

1шт.

O7532AB

CLIP - oil gauge rear tube (On hydraulic housing flange)

1шт.

O8332AB

X

GROMMET - rubber, oil gauge tube

1шт.

O8335AB

X

WIRE - light switch to three wire line connector

1шт.

O9089AB

LOOM - O8335AB wire

1шт.

O9991AB

GAUGE

- temperature

1шт.

O9995AB

X

SWITCH - starter w/O10463AB boot

1шт.

O10206AB

TUBE - oil gauge, front

1шт.

69FL (1/4" tube size x 1/8" P.T. Imperial flex. elbow) connects tube to cylinder block

1шт.

O10274AB

LOOM - front oil pressure gauge tube

1шт.

O10463AB

BOOT

- rubber, for O9995AB starter switch

1шт.

VT3808

WIRE - light switch to three wire line connector

1шт.
