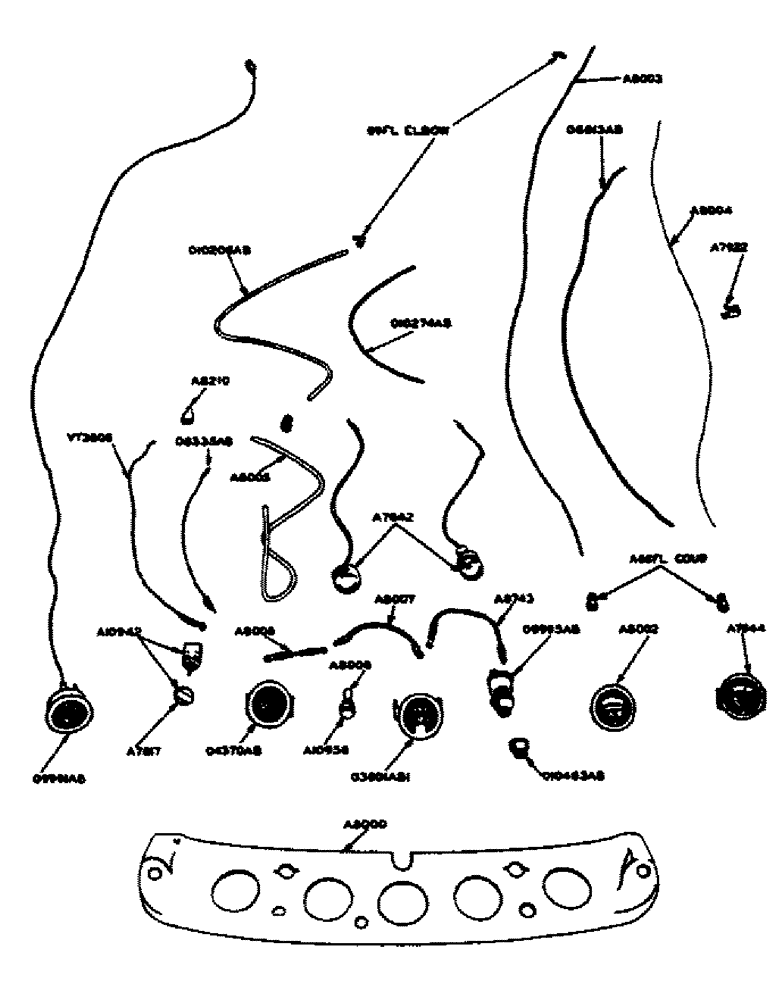

Запчасти Case IH 600-SERIES (052) - INSTRUMENT PANEL, DIESEL (04) - ELECTRICAL SYSTEMS

A7642

LAMP

- dash, instrument panel, 12 volt

2шт.

A7644

GAUGE

- fuel oil pressure

1шт.

IMPERIAL FLEX FEMALE COUPLING #66FL (1/8" tube size x 1/8" P.T.)

1шт.

A7817

KNOB

- light switch

1шт.

A7922

CLIP

- vacuum gauge and fuel oil gauge tubes

1шт.

A8000

PANEL - instrument

1шт.

5/16" X 3/4" N.C. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

A8002

GAUGE ASSY.

GAUGE - vacuum

1шт.

IMPERIAL FLEX. FEMALE COUPLING #66FL (1/8" tube size x 1/8" P.T.)

1шт.

A8003

TUBE

- vacuum gauge

1шт.

IMPERIAL FLEX. ELBOW, no. 69FL (1/8" tube size x 1/8" P.T.) connects tube to A10386 filter

1шт.

A8004

TUBE - fuel oil gauge

1шт.

A8005

TUBE - oil pressure gauge, rear

1шт.

A8006

NOZZLE HOLDER

HOLDER - fuse, w/A10958 cap

1шт.

20 AMP. FUSE

1шт.

A8007

WIRE - ammeter to fuse holder

1шт.

#4 X 1/4" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.

A8008

SWIVEL CONNECTION

WIRE - fuse holder to light switch

1шт.

#4 X 1/4" N.F. RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.

A8210

CONNECTOR, ELEC

CONNECTOR - three wire line

1шт.

A8743

WIRE - ammeter to starter switch

1шт.

A10942

KIT

SWITCH - light, w/A7817 knob

1шт.

A10958

CAP

- for A8006 fuse holder

1шт.

O3601AB1

X

AMMETER

1шт.

O4370AB

X

GAUGE - lube oil pressure

1шт.

IMPERIAL FLEX. FEMALE COUPLING #66FL (1/4" tube size x 1/8" P.T.)

1шт.

O8335AB

X

WIRE - light switch to three wire line connector

1шт.

O8813AB

LOOM - fuel oil gauge and vacuum gauge tubes

1шт.

O9991AB

GAUGE

- temperature

1шт.

O9995AB

X

SWITCH - starter w/O10463AB boot

1шт.

O101206AB

TUBE - oil gauge front

1шт.

69FL (1/4" tube size x 1/8" P.T. Imperial flex. elbow) connects tube to cylinder block

1шт.

O10274AB

LOOM - front, oil pressure gauge tube

1шт.

O10463AB

BOOT

- rubber, for O9995AB starter switch

1шт.

VT3808

WIRE - light switch to three wire line connector

1шт.
