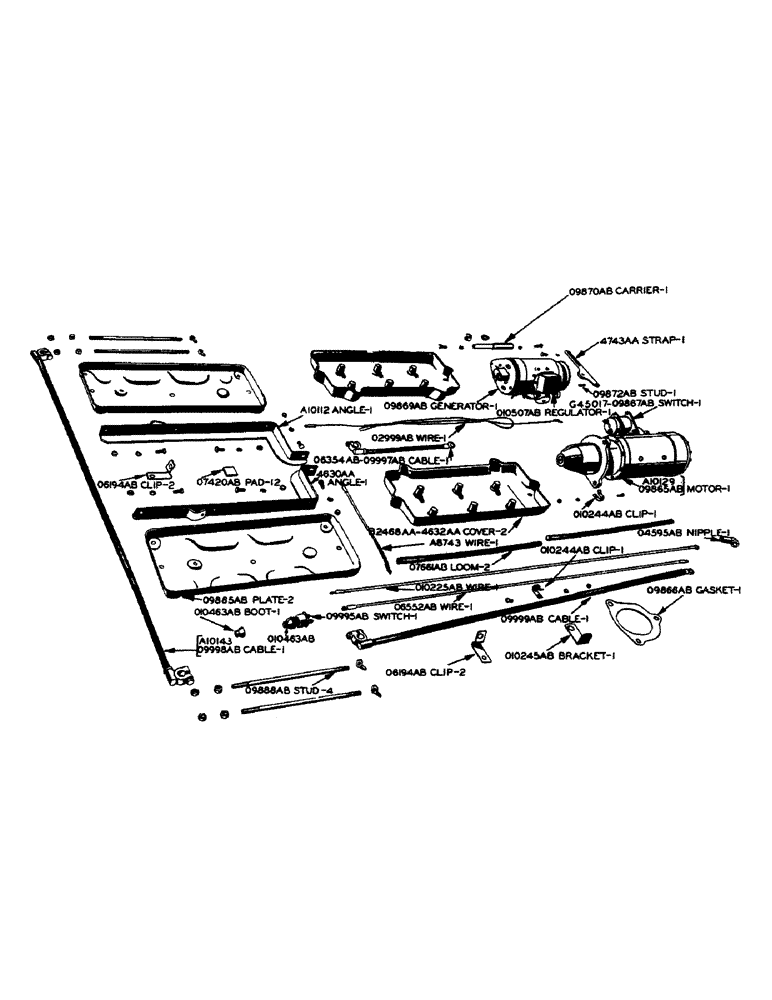

Запчасти Case IH 600-SERIES (050) - ELECTRIC LIGHTING AND STARTING PARTS, GENERATOR, STARTING MOTOR AND BATTERY, GENERATOR (04) - ELECTRICAL SYSTEMS

O2999AB

WIRE -, Serial Range: generator-ammeter

1шт.

O9869AB

GENERATOR - 12 volt (Electric Auto-Lite no. GHH6001E)

1шт.

O9870AB

CARRIER - generator

1шт.

5/8" N.F. LIGHT HEX. NUT W/LOCKWASHER

1шт.

5/16" X 7/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

O9872AB

STUD - generator belt

1шт.

3/8" N.F. LIGHT HEX. NUT W/LOCKWASHER

1шт.

O10507AB

X

VOLTAGE REGULATOR - for generator (Electric Auto-Lite no. VRT- 4104A)

1шт.

4743AA

STRAP - generator and power steering pump adjusting

1шт.

5/16" X 5/8" N.C. HEX. HD. CAP SCREW

1шт.

5/16" EXTERNAL-INTERNAL SHAKEPROOF LOCKWASHER NO. 4018-24

1шт.

A8743

WIRE - ammeter to starter switch, motor- 12 volt diesel

1шт.

A21753

CAP

NIPPLE - starting cable terminal, motor- 12 volt diesel

1шт.

O6552AB

WIRE - starting switch to starting motor, ground - 12 volt diesel

1шт.

O7661AB

LOOM - starter and hour meter switch wires, motor - 12 volt diesel

2шт.

O9865AB

MOTOR - starting, with O9867AB switch (Electric Auto-Lite #MCO- 4004) - 12 volt diesel

1шт.

1/2" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER - starting motor-12 volt diesel

3шт.

O9866AB

X

GASKET - starting motor - 12 volt diesel

1шт.

O9867AB

X

SWITCH - starting solenoid for O9865AB starting motor (Electric Auto-Lite no. WSM-4101A) - 12 volt diesel

1шт.

O9995AB

X

SWITCH - starting motor - 12 volt diesel

1шт.

O10225AB

WIRE - starting switch to starting motor, positive - 12 volt diesel

1шт.

O10226AB

WIRE - starting switch to hour meter switch - 12 volt diesel

1шт.

O10463AB

BOOT

- rubber , for O9995AB starter switch - 12 volt diesel

1шт.

A10129

MOTOR - starting w/G45017 switch (Electric Auto-Lite no. ML-4356)- 12 volt Lp- gas

1шт.

1/2" X 1-1/2" N.C. HEX. BOLT W/LOCKWASHER, starting motor - 12 volt Lp-gas

3шт.

G45017

X

SWITCH - starter solenoid (Electric Auto-Lite no. SSW-4001), motor - 12 volt Lp-gas

1шт.

O3001AB

WIRE - ammeter to starter switch, motor, Lp-gas

1шт.

O3084AB

WIRE - magneto to ignition switch, motor -12 volt Lp-gas

1шт.

A21753

CAP

NIPPLE - starting cable terminal, motor - 12 volt Lp-gas

1шт.

O6552AB

WIRE - starting switch to starting motor, ground- 12 volt Lp-gas

1шт.

O7661AB

LOOM - starting motor and magneto wire- 12 volt Lp-gas

1шт.

O9995AB

X

SWITCH - starting motor - 12 volt Lp-gas

1шт.

O10225AB

WIRE - starting switch to starting motor, positive - 12 volt Lp-gas

1шт.

O10463AB

BOOT

- rubber, for O9995AB starter switch, motor - 12 volt Lp- gas

1шт.

BATTERY - storage, 6 volt (Electric Storage Battery Co. no. MA- 44041, type XF-25 (Not furnished by J. I. Case Co.), diesel

2шт.

A10112

CONNECTING LINK

ANGLE - battery support L.H., diesel

1шт.

O6194AB

CLIP - starting cable, one on steering column and one on transmission case top cover, diesel

2шт.

O7420AB

X

RUBBER PAD - for battery, diesel

12шт.

O9885AB

PLATE - battery support, diesel

2шт.

5/16" X 3/4" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER, diesel

8шт.

O9888AB

STUD - battery cover (3/8" x 10-3/4" long), diesel

4шт.

3/8" N.C. HEX. NUT, diesel

4шт.

O9997AB

X

CABLE - battery ground, diesel

1шт.

O9998AB

X

CABLE - battery to battery, diesel

1шт.

O9999AB

X

CABLE - battery to starting motor, diesel

1шт.

O10244AB

CLIP - starting cable, on transmission case for O9999AB cable, battery-diesel

1шт.

O10245AB

BRACKET - starting cable clip and oil gauge tube, battery-diesel

1шт.

4630AA

ANGLE - battery support, R.H., diesel

1шт.

4632AA

COVER - battery, diesel

2шт.

BATTERY - storage, 6 volt (Exide #XF-19) (Not furnished by J. I. Case Co.), Lp-gas

2шт.

A10112

CONNECTING LINK

ANGLE - battery support L.H., Lp-gas

1шт.

A10143

CABLE - battery to battery, Lp-gas

1шт.

O6194AB

CLIP - starting cable, one on steering column and one on trans. case top cover, Lp-gas

2шт.

O6354AB

X

CABLE - battery ground, Lp-gas

1шт.

O7420AB

X

RUBBER PAD - for battery, Lp-gas

12шт.

O9885AB

PLATE - battery support, Lp-gas

2шт.

5/16" X 3/4" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER, battery-Lp-gas

8шт.

O9888AB

STUD - battery cover (3/8" x 10-3/4" long), Lp-gas

4шт.

3/8" N.C. HEX. NUT,battery, Lp-gas

4шт.

O9999AB

X

CABLE - battery to starting motor, Lp-gas

1шт.

O10244AB

CLIP - starting cable, on transmission case for O9999AB cable, battery, Lp-gas

1шт.

O10245AB

BRACKET - starting cable clip and oil gauge tube, battery, Lp-gas

1шт.

B2468AA

COVER - battery, lp-gas

2шт.

4630AA

ANGLE - battery support R.H., Lp-gas

1шт.
