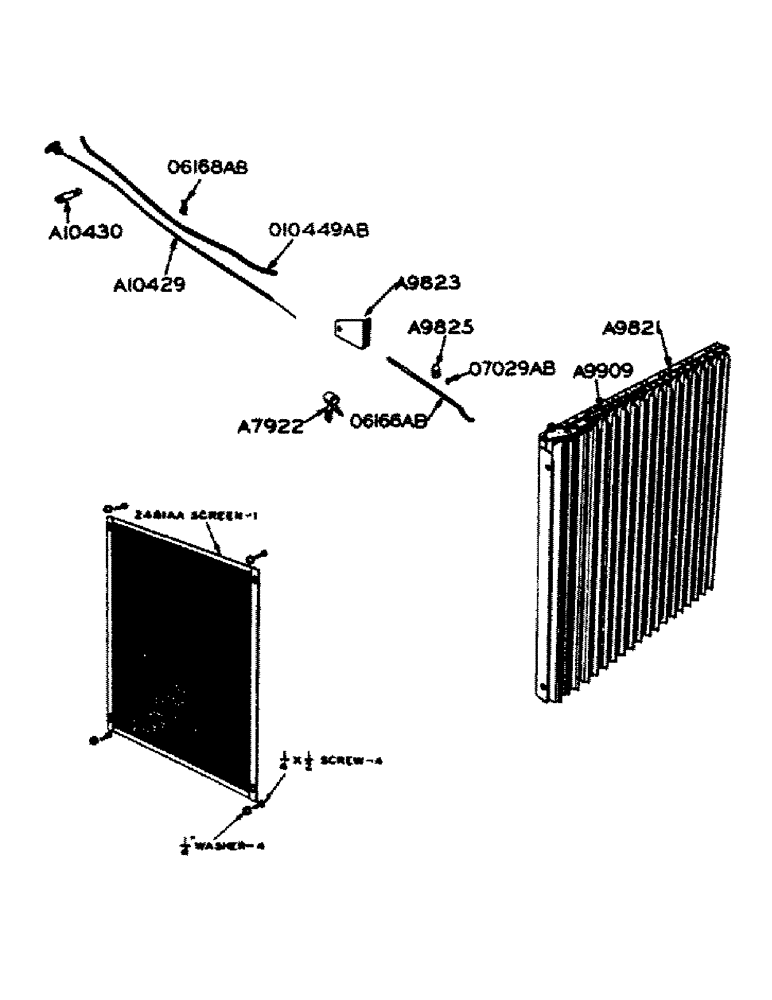

Запчасти Case IH 600-SERIES (067) - RADIATOR SHUTTER (02) - ENGINE

A7922

CLIP

- radiator shutter control (At ignition wire clamp or 2nd stage filter bracket)

1шт.

A9821

SHUTTER - radiator

1шт.

5/16" X 1/2" N.C. TRUSS HD. MACH. SCREW (Zinc plated) w/lockwasher

4шт.

A9823

BRACKET - radiator shutter control (On radiator side member)

1шт.

1/4" X 3/4" N.F. HEX. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

A9825

CONNECTOR - radiator shutter control

1шт.

A9909

SPRING - radiator shutter

1шт.

A10429

CONTROL - radiator shutter

1шт.

A10430

SUPPORT - radiator shutter control (On steering column)

1шт.

O6166AB

ROD - front, radiator shutter control

1шт.

1/4" N.C. HEX. NUT

1шт.

3/32" X 1/2" COTTER PIN

1шт.

O6168AB

CLIP - radiator shutter rear control rod

1шт.

1/4" X 5/8" N.C. TRUSS HD. MACH. SCREW (Zinc plated) w/hex. nut and lockwasher

1шт.

O7029AB

CLAMP - radiator shutter control wire

1шт.

#8-32 X 1/4" RD. HD. MACH. SCREW

1шт.

O10449AB

LOOM - radiator shutter control

1шт.

2481AA

SCREEN - radiator

1шт.

1/4" X 1/2" RD. HD. MACH. SCREW, N.C. thrd., with lockwasher, radiator screen

4шт.
