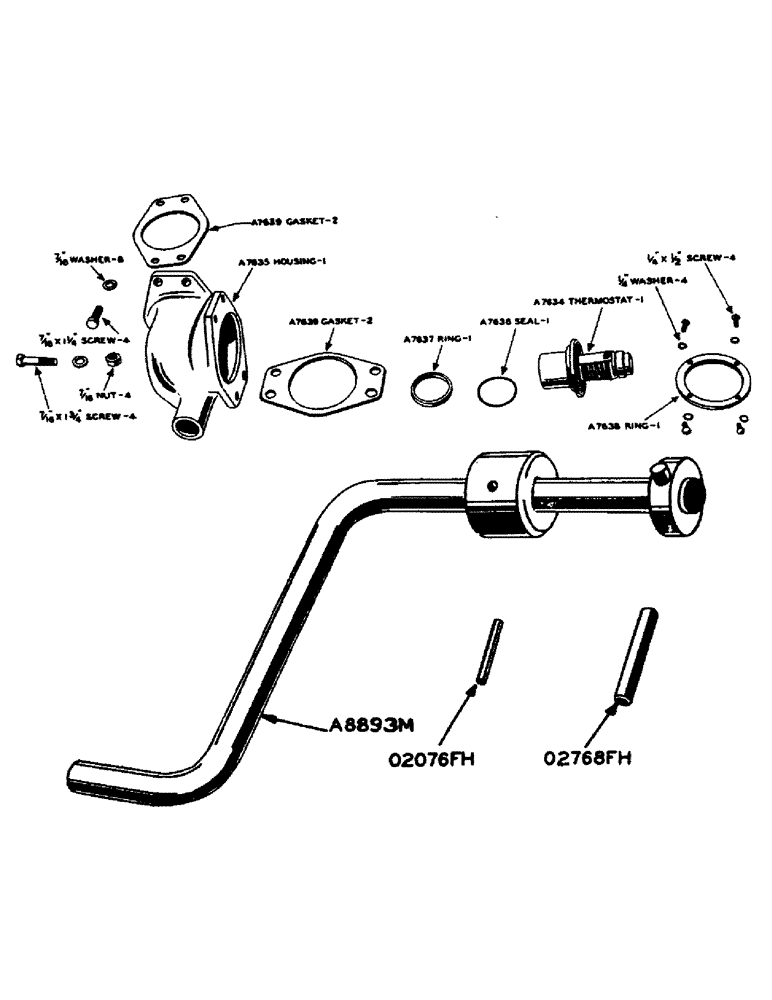

Запчасти Case IH 600-SERIES (066) - THERMOSTAT (02) - ENGINE

A7634

THERMOSTAT

1шт.

A7635

HOUSING - thermostat

1шт.

7/16" X 1-3/4" N.F. HEX. HD. CAP SCREW W/NUT AND LOCKWASHER

4шт.

7/16" X 1-1/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

4шт.

A7636

SEAL

- thermostat

1шт.

A11423

SEAL

RING - bronze, thermostat seal (Replaces A7637)

1шт.

NOTE:REMOVE A7637 WHEN A11423 IS USED.

1шт.

A7638

RING - retaining, thermostat

1шт.

1/4" X 1/2" N.C. RD. HD. MACH. SCREW, brass

4шт.

1/4" NO. 1814-00 EXTERNAL TOOTH SHAKEPROOF LOCKWASHER, phosphor bronze

4шт.

A7639

GASKET

- thermostat housing

2шт.

A8893M

CRANK - starting (Machy. item)

1шт.

O2076FH

X

ROLL PIN - (5/16" x 2-1/4") starting crank

1шт.

O2768FH

X

ROLL PIN - (1/2" x 3") starting crank collar

1шт.
