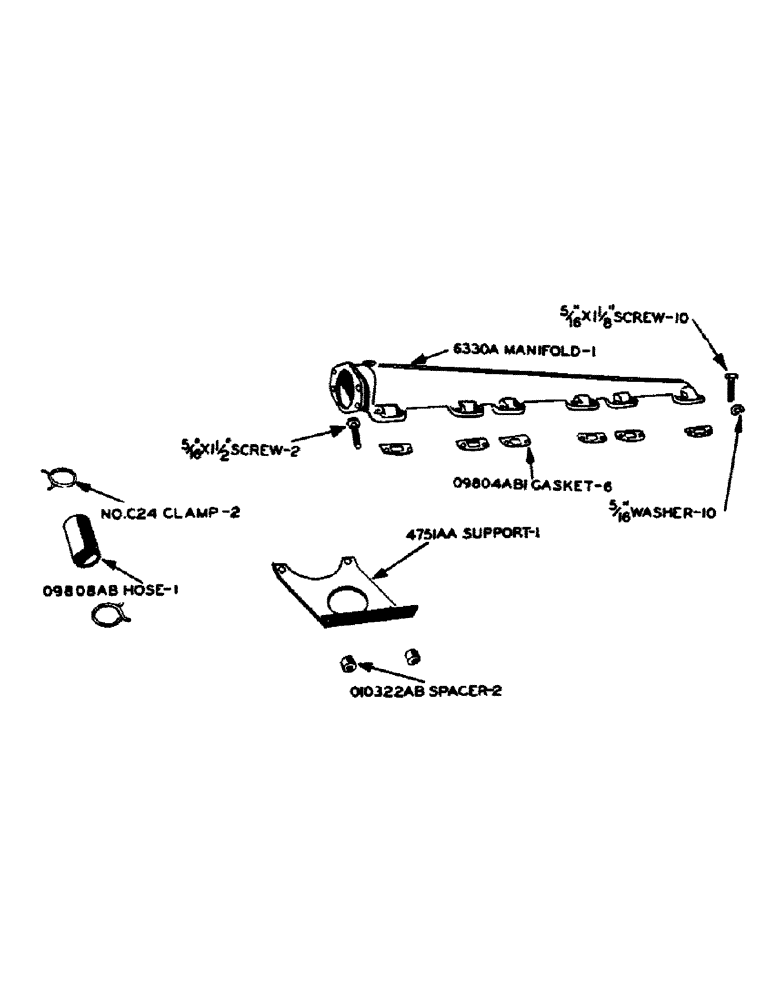

Запчасти Case IH 600-SERIES (065) - WATER MANIFOLD (02) - ENGINE

6330A

MANIFOLD - water

1шт.

5/16" X 1-1/8" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

10шт.

5/16" X 1-1/2" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.

1/4" SQ. HD. PIPE PLUG

1шт.

O9804AB1

X

GASKET - water manifold

6шт.

O9808AB

X

HOSE - water by-pass

1шт.

NO. C-24 CORBIN HOSE CLAMP (For 1-7/8" 0 dia. hose)

2шт.

O10322AB

SPACER - water manifold support

2шт.

4751AA

SUPPORT - water manifold

1шт.

7/16" X 1-3/4" N.C. HEX. HD. CAP SCREW W/LOCKWASHER

2шт.
